B–46
ENGINE

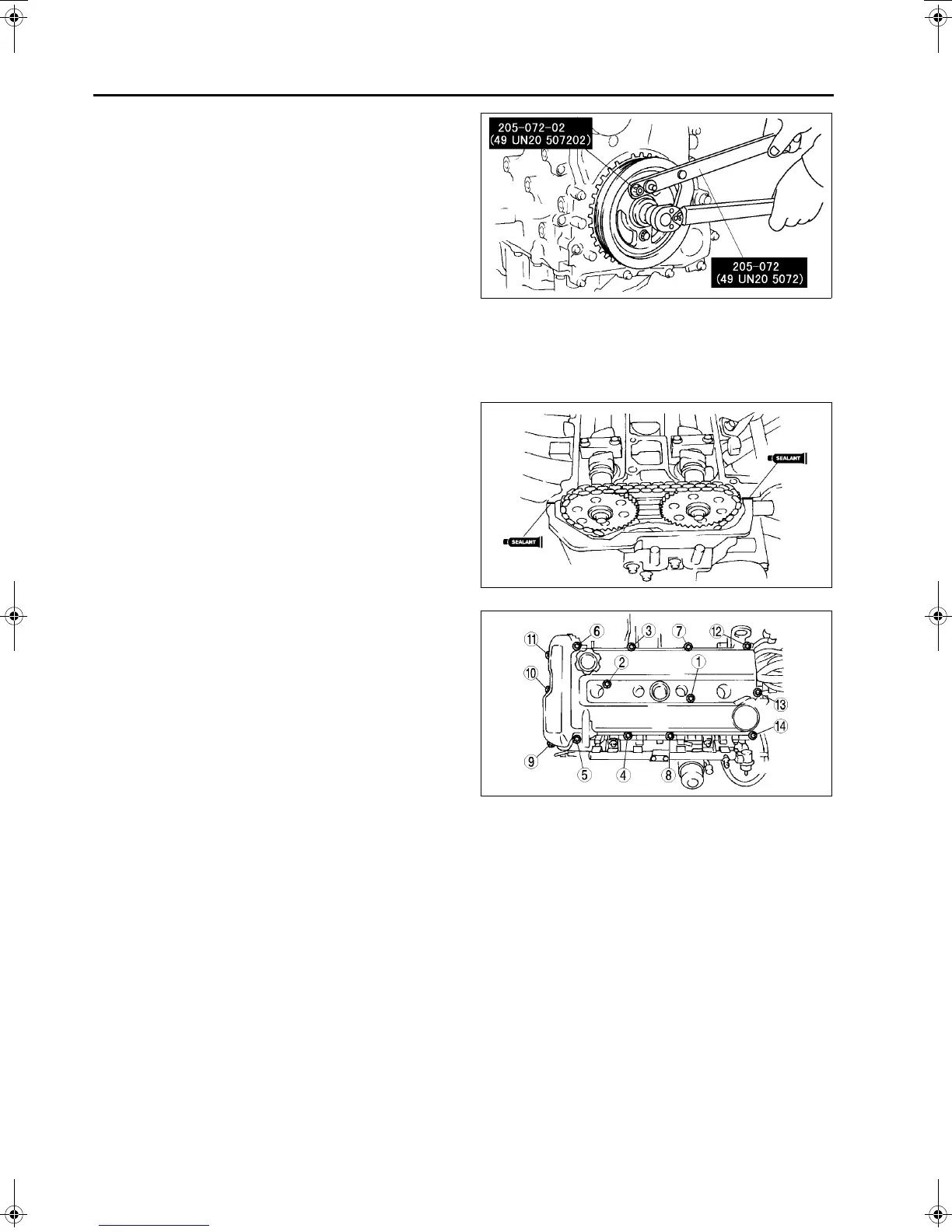

4. Hold the crankshaft pully using the SST.
5. Tighten the crankshaft pulley lock bolt in the
following two steps.
(1) Tighten to 96—104 N·m {9.8—10.6 kgf·m,
70.9—76.7 ft·lbf}
(2) Tighten 87°
°°
°—93°
°°
° .
6. Remove the M6 x 1.0 bolt.
7. Remove the SST from the camshaft.
8. Remove the SST from the block lower blind plug.
9. Rotate the crankshaft clockwise two turns until
the TDC position.
• If not aligned, loosen the crankshaft pulley
lock bolt and repeat from Step 1.
10. Install the cylinder block lower blind plug.
Tightening torque: 20 N·m {2.0 kgf·m, 14.8 ft·lbf}
Cylinder Head Cover Aassembly Note
1. Apply silicone sealant to the mating faces as
shown.
Caution
•
••
• Install the cylinder head cover within 10
minutes of applying the silicone sealant.
Dot diameter: 4.0—6.0 mm {0.16—0.23 in}
2. Install the cylinder head cover with a new gasket.
3. Tighten the bolts in the order shown.
Tightening torque: 8.0 —12 N·m {81.6—122.3
kgf·cm, 70.9—106.2 in·lbf}
End Of Sie
AME2224E015
AME2224E335
AME2224E336
