BODY STRUCTURE [DIMENSIONS]
09-80D–12
End Of Sie

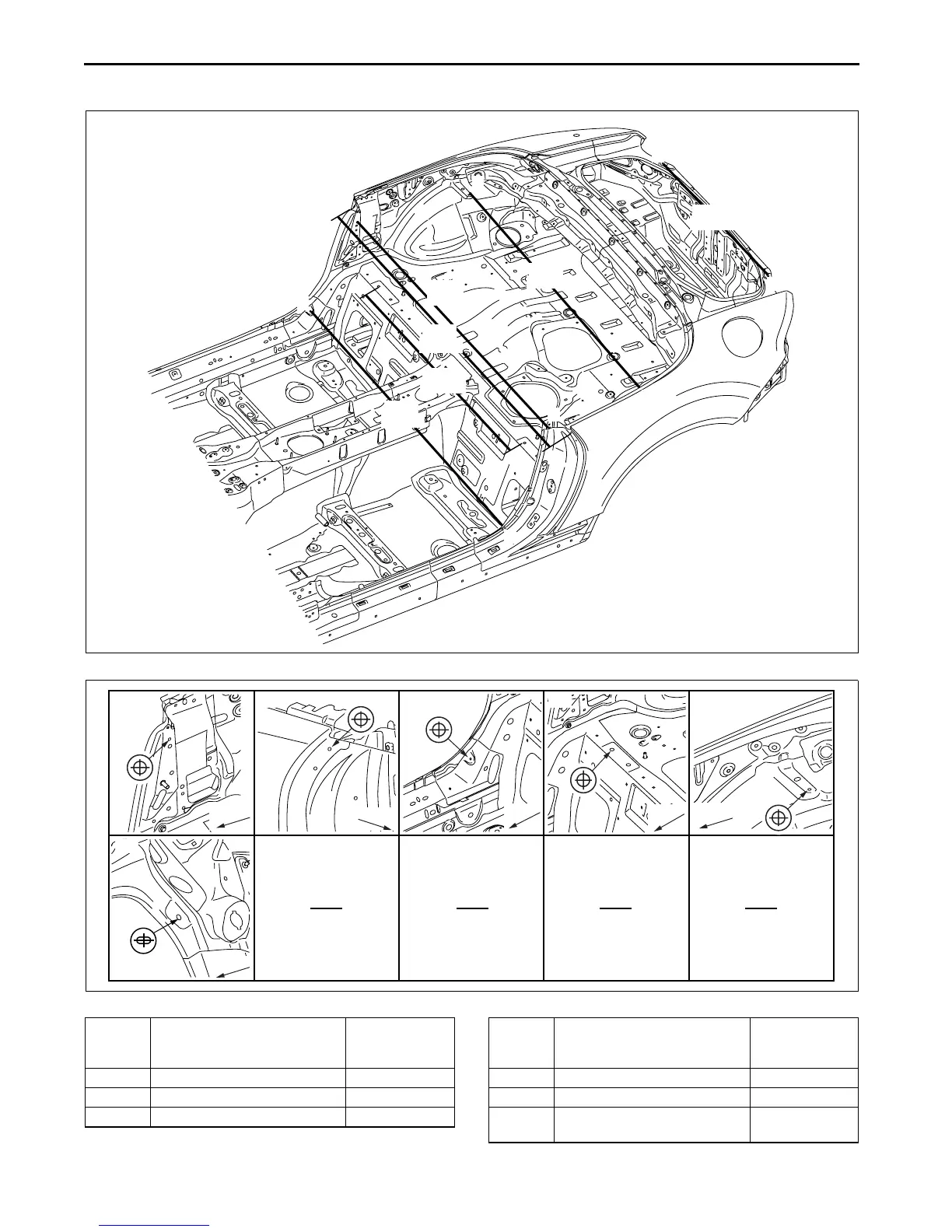

ROOM STRAIGHT-LINE DIMENSIONS (3)[DIMENSIONS]
id098010746200
.
End Of Sie
BM: REAR BODY
1,366
1,533
1,410
1,127
1,264
744
mm
{53.78}
{60.35}
{55.51}
{44.37}
{49.76}
{29.29}
A
B
C
D
E
F
A'
D'
B'
C'
E'
F'
{in}
D5U0980B016
Fr
Fr
Fr
Fr
Fr
Fr
AB
F
CDE
D5U0980B017
Point
symbol
Designation
Hole diameter
or bolt or nut
size mm {in}
A Center pillar inner datum hole ø14 {0.55}
B Weather strip datum hole ø5.2 {0.20}
C Side sill inner rear datum hole ø7 {0.28}
D Center floor pan datum hole ø12 {0.47}
E Wheel house inner datum hole ø10 {0.39}
F Rear rein rail datum slot
ø12 x 7.2
{0.47x0.28}
Point
symbol
Designation
Hole diameter
or bolt or nut
size mm {in}
