Mazda mx-5 2007 - Side Sill Reinforcement (Center) Removal[Panel Replacement]

BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–61
09-80B
SIDE SILL REINFORCEMENT (CENTER) REMOVAL[PANEL REPLACEMENT]
id098008609600

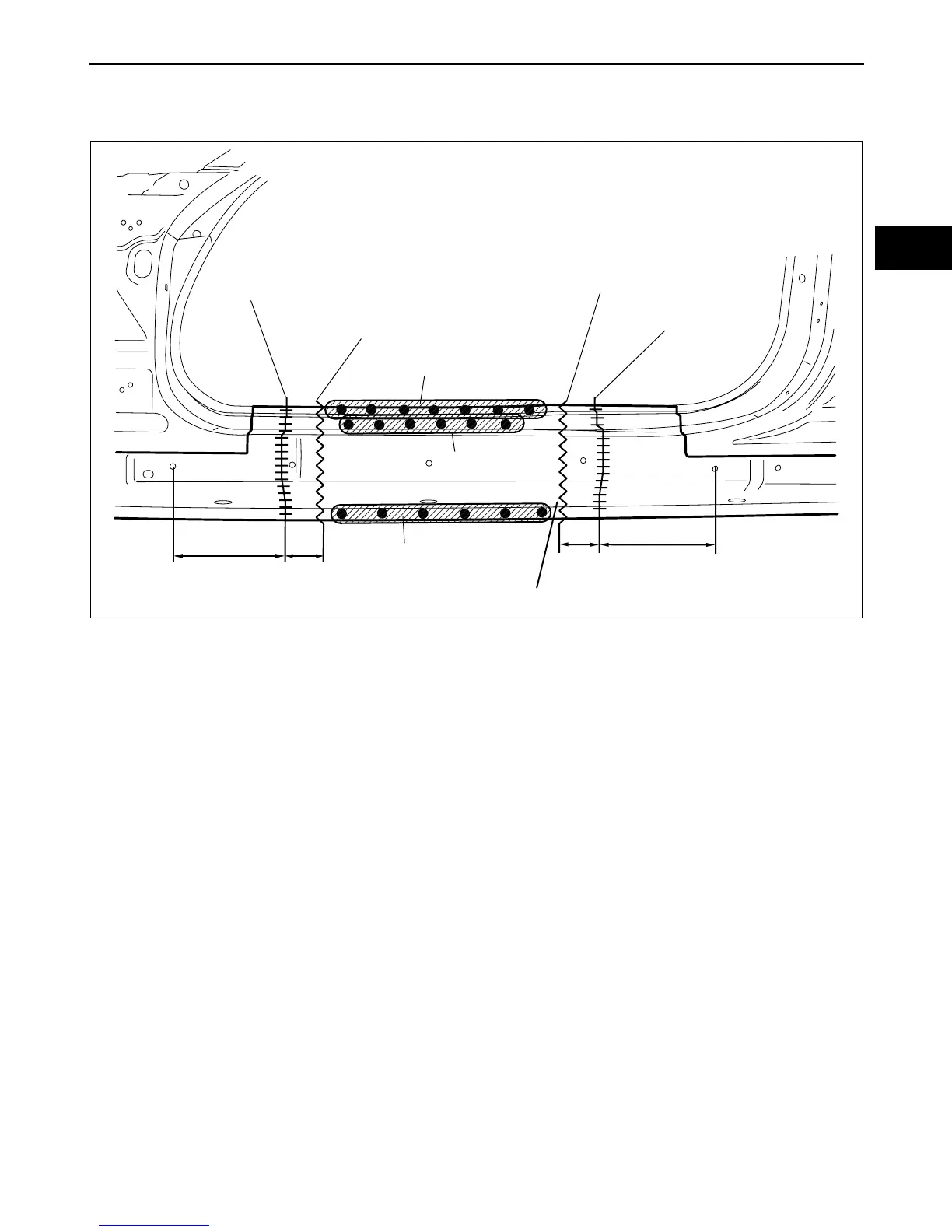

1. Rough cut at the locations shown in the figure to remove damaged parts.
2. Remove the side sill reinforcement (center).
End Of Sie
9
6
6
120mm
60mm
190mm
55mm
{7.48in}
{2.17in}
{2.36in}
{4.72in}
ROUGH CUT LOCATION
CUT-AND-JOIN LOCATION
CUT-AND-JOIN LOCATION
SIDE SILL REINFORCEMENT (CENTER)
ROUGH CUT LOCATION
D5U0980B087
