BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–65
09-80B
REAR END PANEL REMOVAL[PANEL REPLACEMENT]
id098008744500
1. Remove the rear end panel.
End Of Sie
REAR END PANEL INSTALLATION[PANEL REPLACEMENT]
id098008744600
1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.
End Of Sie
BM: REAR FENDER RAIN RAIL
3
5
15
5
12

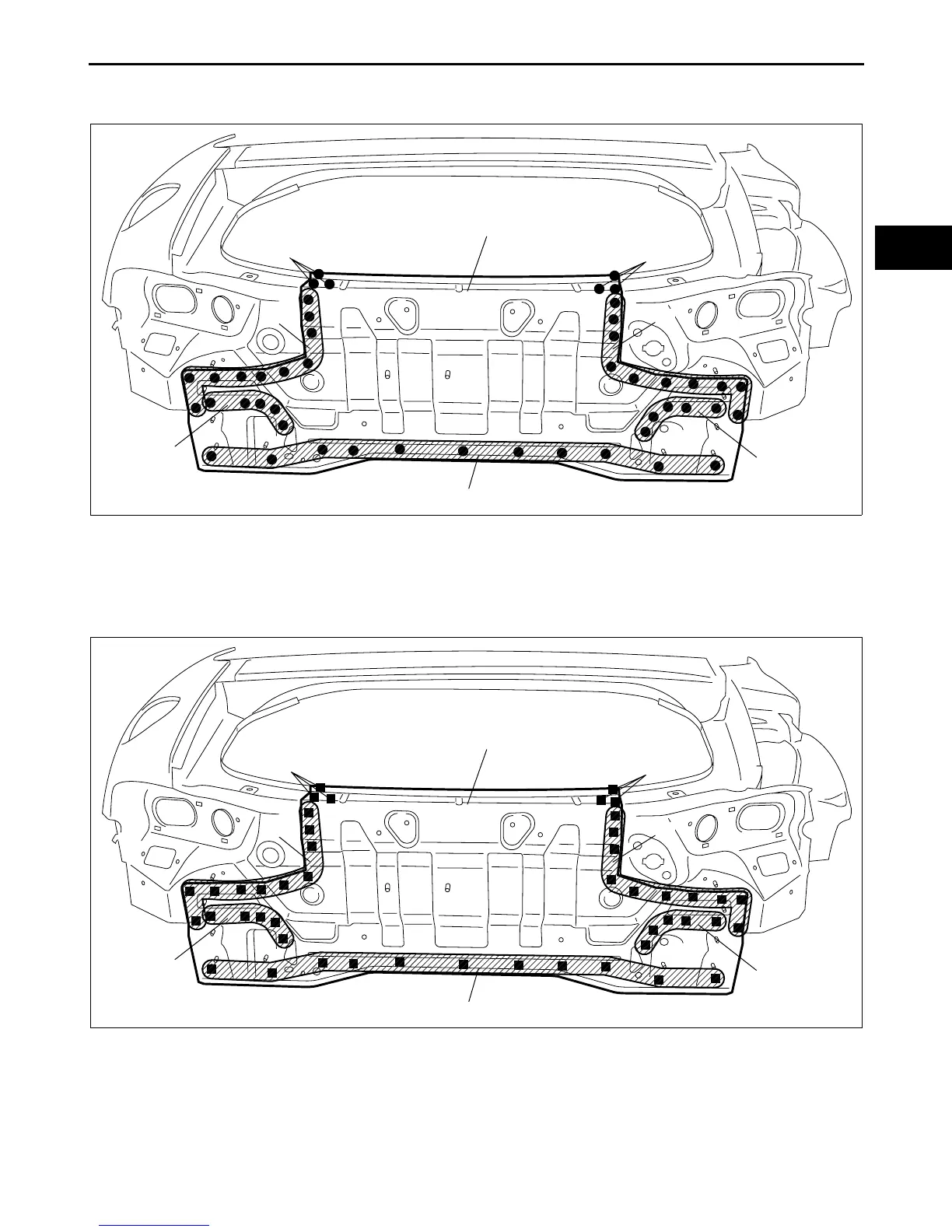

REAR END PANEL
12
3
D5U0980B095
3
5
15
5
12
12
3
REAR END PANEL
D5U0980B096
