BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–67
09-80B
REAR FENDER RAIN RAIL (PARTIAL CUTTING) REMOVAL[PANEL REPLACEMENT]
id098008610600

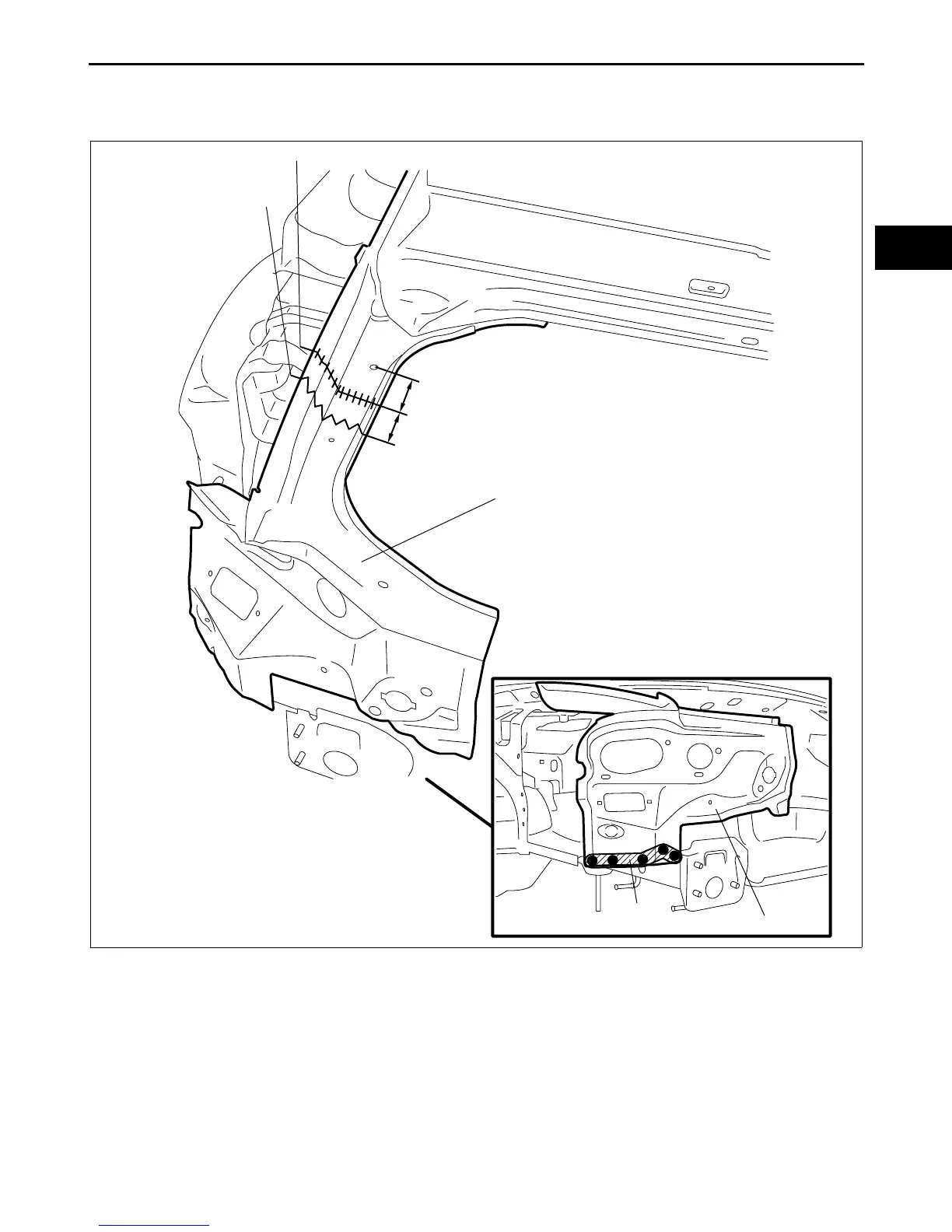

1. Rough cut at the locations shown in the figure to remove damaged parts.
2. Remove the rear fender rain rail and corner plate.
End Of Sie
55mm
REAR FENDER RAIN RAIL
50mm
{1.97in}
{2.17in}
ROUGH CUT LOCATION
CUT-AND-JOIN LOCATION
5
CORNER PLATE
D5U0980B097
