Mazda mx-5 2007 - Side Sill Reinforcement (Front) Removal[Panel Replacement]

BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–59
09-80B
BM: SIDE SILL PANEL
SIDE SILL REINFORCEMENT (FRONT) REMOVAL[PANEL REPLACEMENT]
id098008616200

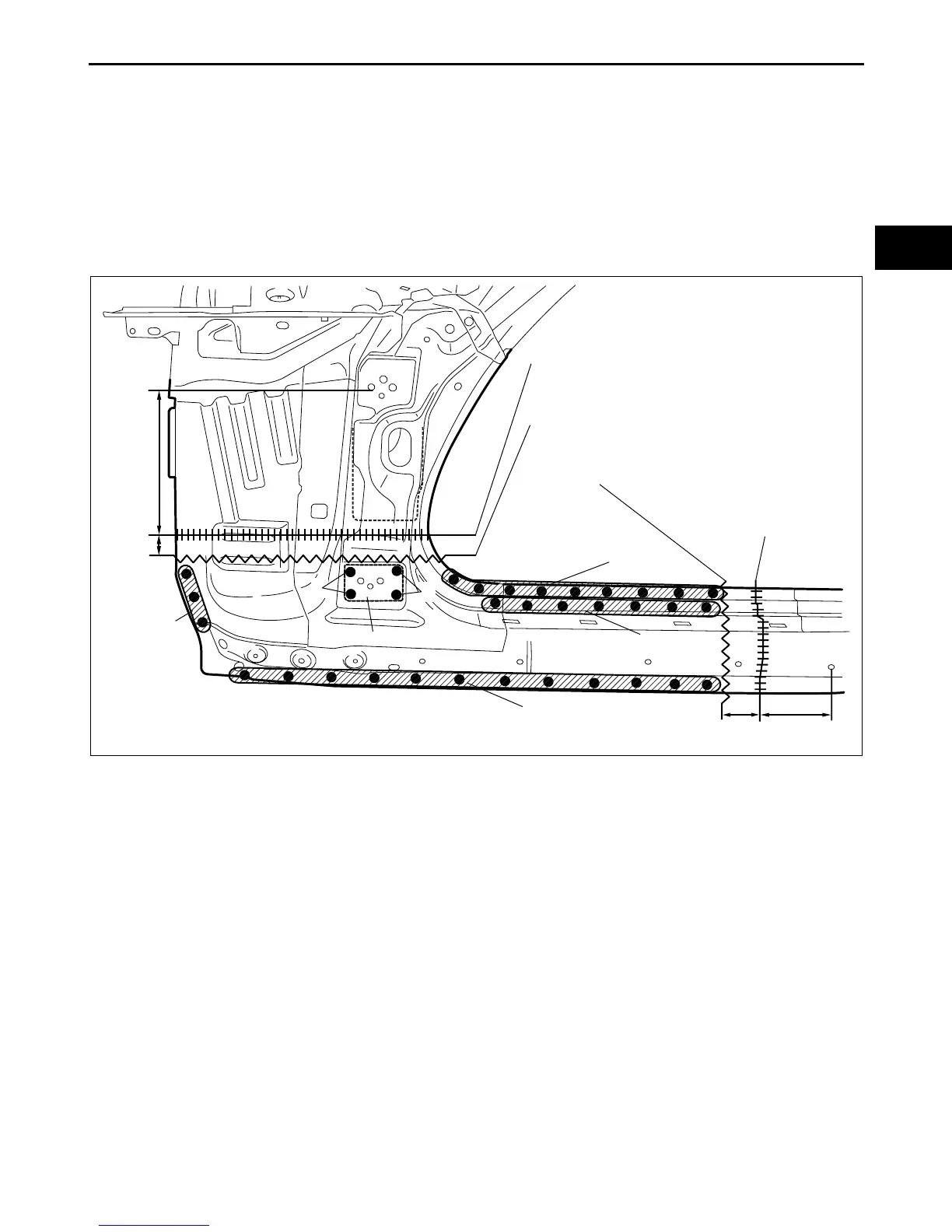

1. Rough cut and remove the damaged part of the side sill reinforcement (front).
Caution
• During rough cutting, be careful not to damage the front pillar reinforcement indicated by dotted
lines in the figure.
Note
• If the nut plate is not damaged, do not dispose of it, as it can be reinstalled. If it is damaged considerably,
replace it with a new one.
End Of Sie
2
2
8
3
120mm
60mm
240mm
40mm
17
18
{9.45in}
{1.57in}
{4.72in}
{2.36in}
ROUGH CUT LOCATION FOR HINGE
PILLAR COMPONENT
NUT PLATE
ROUGH CUT LOCATION FOR SIDE SILL
REINFORCEMENT (FRONT)
CUT-AND-JOIN LOCATION FOR HINGE
PILLAR COMPONENT
CUT-AND-JOIN LOCATION
FOR SIDE SILL
REINFORCEMENT (FRONT)
D5U0980B093
