BODY STRUCTURE [PANEL REPLACEMENT]
09-80B–47
09-80B

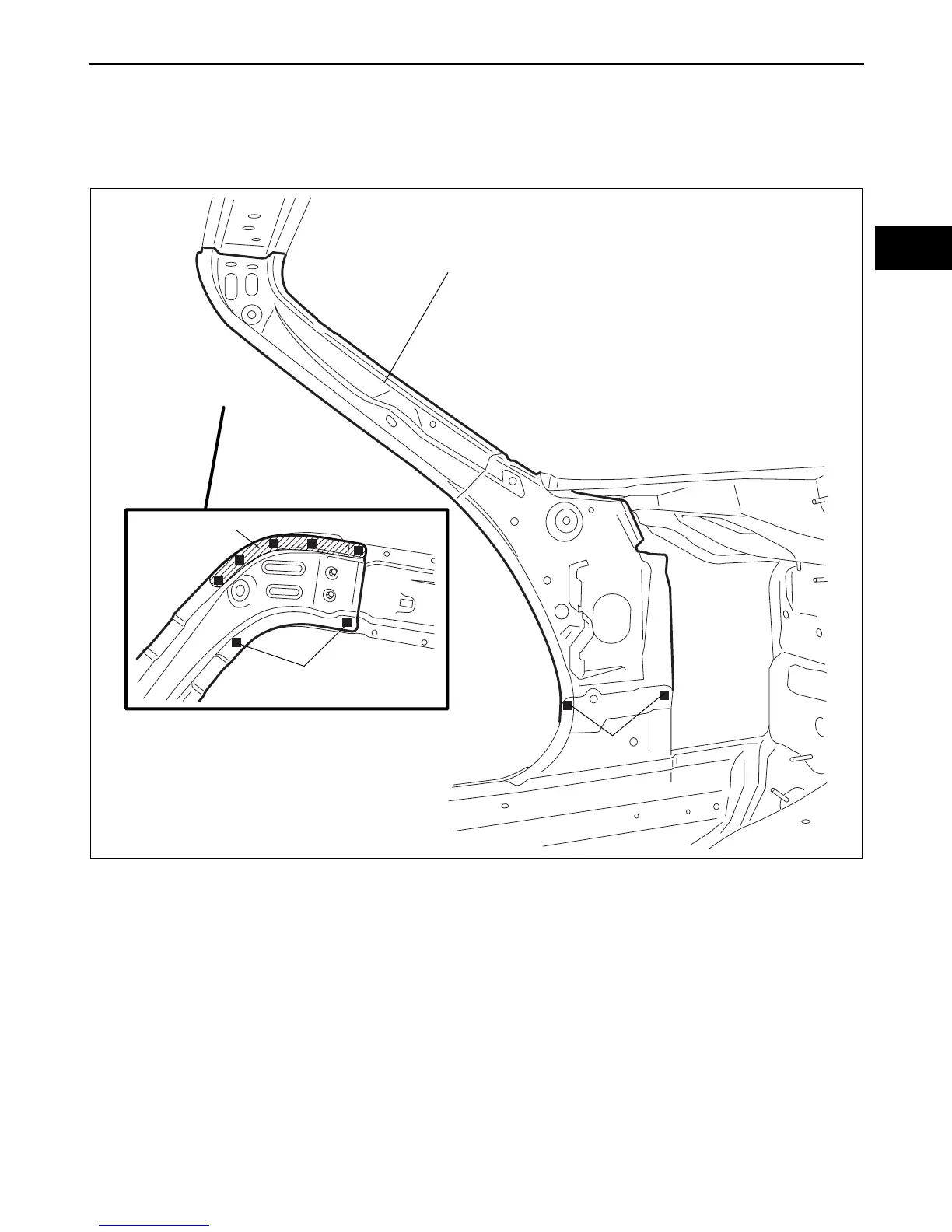

HINGE PILLAR (OUTER) INSTALLATION[PANEL REPLACEMENT]
id098008613600
1. When joining and cutting the new and existing parts, trial fit the new part in position, then measure and adjust
the body as necessary to conform with standard dimensions.
2. Drill holes for plug welds before installing new parts.
3. After temporarily installing new parts, make sure the related parts fit properly.
4. Install the front pillar (inner).
2
5
FRONT PILLAR (INNER)
2
D5U0980B078
