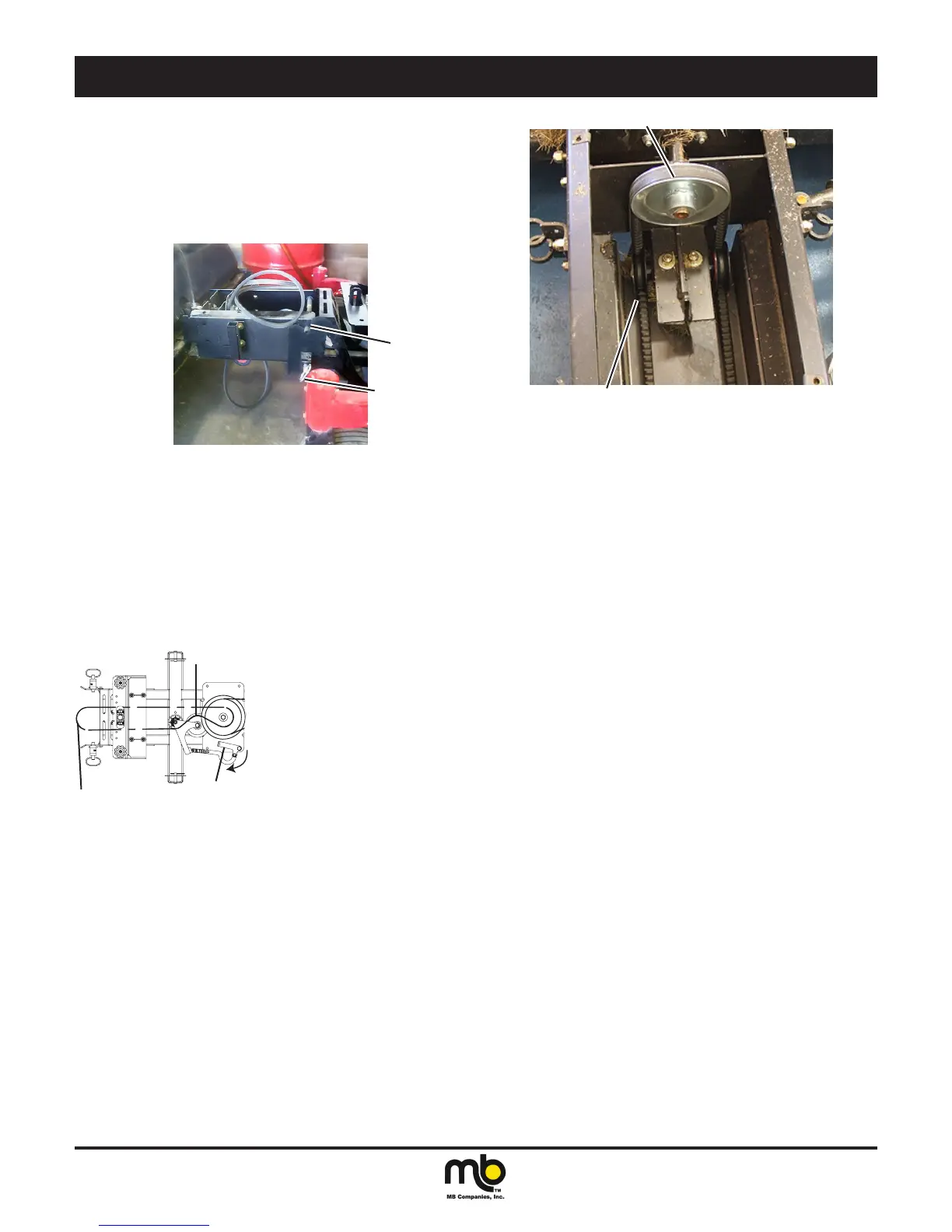

MB ZTS - Assembly Instructions (Continued); Drive Belt Installation

9
Publication: ZTS-080812
M-B Companies, Inc. 11/15/12
INTRODUCTIONASSEMBLY
a. Position the broom head to line up with the attachment
mount. The V-belt should be kept clear of the contact areas.
b. Lower the attachment mount to it's lowest level.
c. Move the tractor forward to engage the top pins in the notch.
d. Lift the attachment mount to the broom head.
e. Pull and rotate the lock pins to enable them to spring into the
holes in the broom head. Some movement of the attachment
mount may be needed to let the pins spring into lock position.
C
E
Figure 5
3. Install broom drive belt (Figure 7).
a. Release the spring tension on the belt tensioner by pushing
in on the tensioner arm.
b. Stretch the V-belt from the broom pulley to the bottom pulley
on the attachment mount. The belt will t under the large
tension pulley.
c. At the broom drive pulley, route the belt under the two bottom
pulleys. The V-belt must be positioned narrow side up.
d. Place the V-belt over the broom drive pulley.
e. Pull on the tensioner arm to spring load the tension pulley.
B
To attachment
drive
Push in to open.
Pull out to tension.
A
E
Open
Figure 6
D
C
Figure 7
4. To attach the drive belt to the engine, refer to the Attachment
Mount Installation manual.
