MBM 206M User Manual

Switching the Power ON:
Insert the power plug into the outlet.
Set the POWER to ON position.
Note:
Remove the power plug from the outlet after use.
Setting Fold Plate Table Position
Pull the half -nut lever to move the stopper plate to the desired
position on Table 1 and 2. Align the arrow on the stopper plate
with the corresponding fold marks on the tables and release the
half-nut. This locks the stopper plate into position.
Test Folding:
Press the TEST key to feed two sheets of paper.
Check if the paper has been folded correctly by inspecting the
second of the two folded sheets.
If the fold position is not correct, refer to “Fine Adjustments”
pages 14 & 15
TEST Key

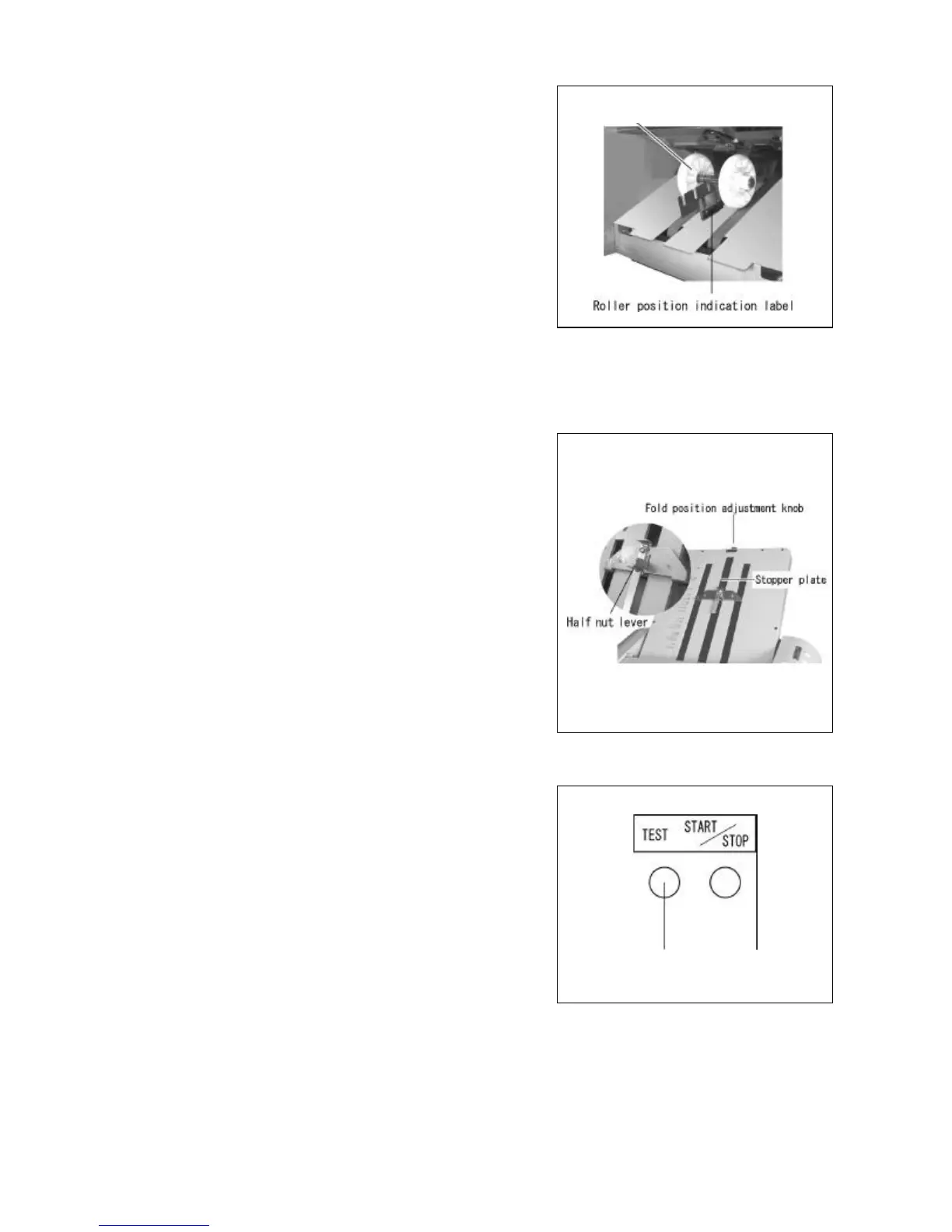

Setting the paper exit roller:
The exit roller should be moved to the proper position according
to the paper size.
Note:
Refer to “Roller position indication” label. If ejection is not
performed proper ly, set it to a different position.
Example:
Set the roller to position ONE when using 8
1
/
2
”
×
11” paper.
(6) Operation Procedure
Paper Exit Roller
9
http://www.monomachines.com
http://www.monomachines.com
