MBM 306A - Machine Setup; Table and Power Installation

(6) Set-Up

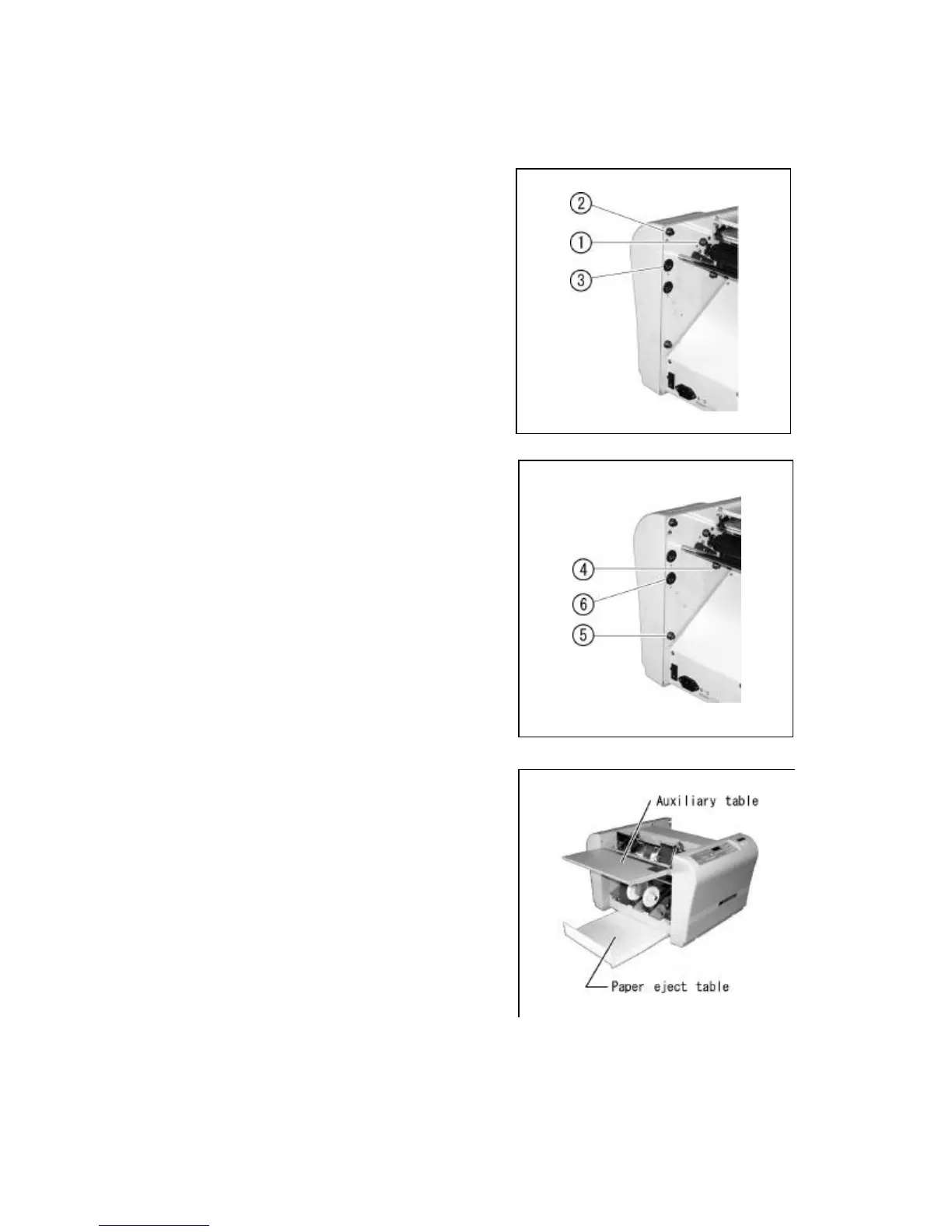

Install Table 1 and 2 at the machine.
Insert the front notched part of Table 1 into the stud 1
of the machine and drop its rear notched part on the
stud 2. Insert the plug into the connector 3.
Caution:
The connector has its direction.
Insertion by force may cause trouble.
Insert the front notched part of Table 2 into the stud 4
of the machine and drop its rear notched part on the
stud 5. Insert the plug into the connector 6.
Caution:
The connector has its direction.
Insertion by force may cause trouble.
Pull the paper eject table out and set it while lifting the
auxiliary table to set it in position.
-9-
