SMARTING User Manual – Release 11/03/2019 35
4. After the impedances are appropriately set up, the experiment can
start. In order to avoid impedance measurements embedded in the
data (seen as a 125Hz noise):
a. Stop the streaming
b. Choose no impedance measurements
c. Restart streaming

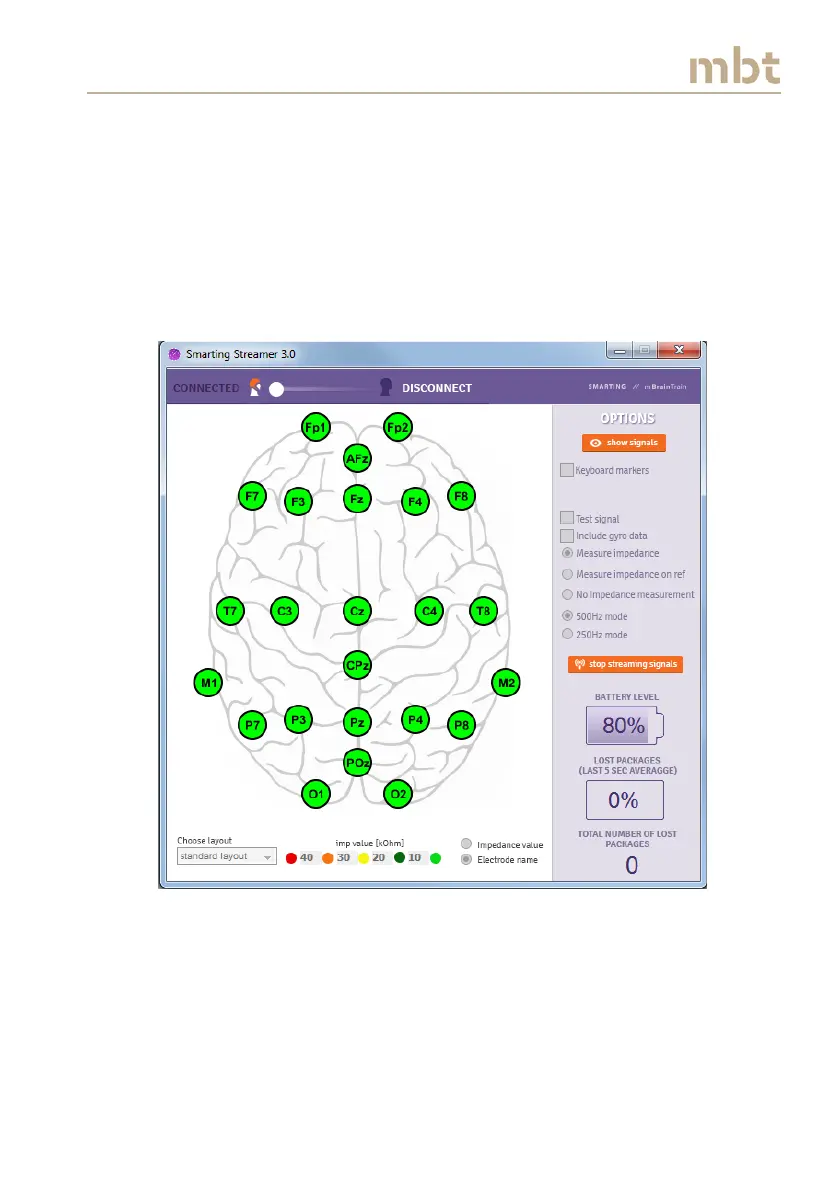

Figure 7.4 The impedance values are shown either as color-codes or the actual
impedance values can be shown on the brain sketch (if impedance value option is
checked)
