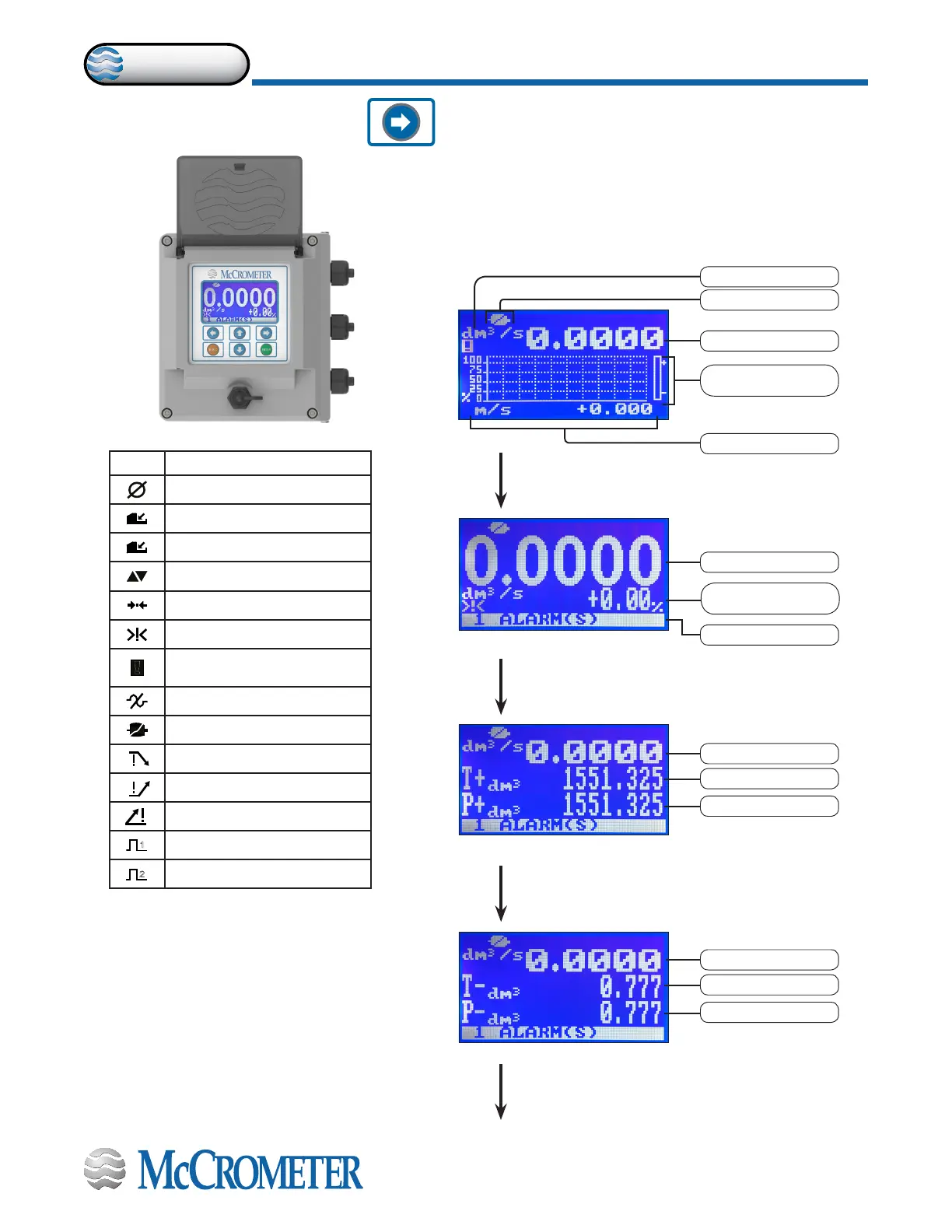

4.3 Front Panel Display
Push to change to the next screen display. Each button
press changes the screen and cycles through the nine
displays shown below.
Screen 1
Screen 2
Screen 3
Flow rate value
Totalizer partial +
Totalizer +
Screen 4
Flow rate value
Totalizer partial -
Totalizer -
Flag
Flow rate value
Fluid velocity
Direction vertical
marker
Unit of measure
Flow rate value
No. of alarms
Stabilization ow
measurement
* If negatives
are displayed
*
*
FLAG DESCRIPTION
Empty pipe
File upload
File download
Flow rate simulation (ashing)
Calibration (ashing)
Generic alarm (ashing)
!
General alarm only on display
physical (ashing)
Signal error
Excitation error
Min ow alarm
Max ow alarm
Flow rate overow
1
Pulse 1 overow
2
Pulse 2 overow
