DATOS TÉCNICOS
Barra guía Cadena
Máximo número Longitud,
Longitud, Paso, Anchura de de die ntes , eslabones de
pulgada s pulgada s ranur a , mm cabezal de rueda Tipo arr a stre (unidad)
14 0,375 / 3/8″ 1,3 7T Oregon 91VJ/PJ 52
14 0,375 / 3/8″ 1,3 7T Oregon 91VG/PX 52
16 0,375 / 3/8″ 1,3 7T Oregon 91PJ/VJ 56
16 0,375 / 3/8″ 1,3 7T Oregon 91VG/PX 56
Combinaciones de barra guía y cadena
Los siguientes equipos de corte están homologados para los modelos McCulloch CS 330,
CS 360, CS 370, y CS 400.
0,375
80° 30°
0°
14/35:52
16/40:56
0,050/1,3 5/32 / 4,0 0,025/0,65
91VJ
91PJ
0,375
0,050/1,3
5/32 / 4,0
80°
30°
0° 0,025/0,65
14/35:52
16/40:56
Tipo mm mm mm Grado Grado Grado mm in/cm :dl
91VG
0,375
0,050/1,3
5/32 / 4,0
80°
30°
0°
0,025/0,65
14/35:52
16/40:56
91PX
0,375
0,050/1,3
5/32 / 4,0
80°
30°
0°
0,025/0,65
14/35:52
16/40:56
3

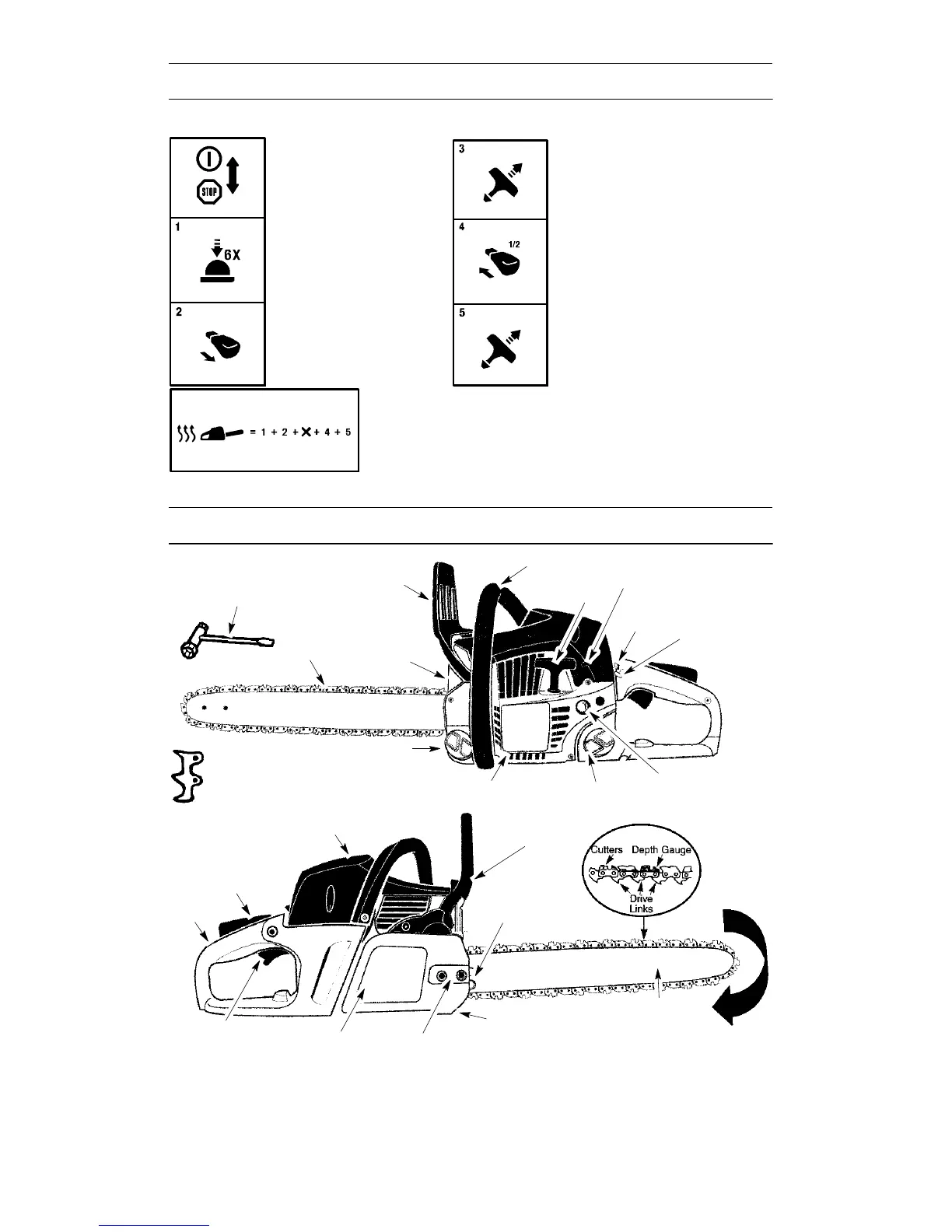

IDENTIFICAT ION OF SYMBOLS
Move ON/STOP switch to
the ON position.
Slowly press primer bulb
6 times.
Pull the starter rope
sharply with your right
hand until the engine fires.
Pull the starter rope sharply
with your right hand until
the engine starts.
Pull choke/fast idle lever
out to the full extent (to
the FULL CHOKE posi-
tion).
Push the choke/fast idle
lever in to the HALF
CHOKE position.
Starting Reminder
Starting a warm engine
IDENTIFICATION (WHAT IS WHAT?)
Chain
Adjustment Tool
(Bar Tool)
Bar Oil Fill Cap
Chain
Front Hand Guard
Starter Rope
ON/STOP
Switch
Muf fler
Choke/
Fast Idle
Lever
Fuel Mix Fill Cap
Starter Housing
Idle Speed Screw
Bumper
spike
Primer Bulb
Front Handle
Guide Bar
Bar Nuts
Cylinder Cover
Throttle
Lockout
Rear
Handle
Throttle
T rigger
Chain
Brake
Chain
Direction
of T ravel
Adjusting Screw
Chain
Catcher
Clutch Cover
