SmarTraq
12 Manual # 42-02-D008 Rev. A2
Control Input Wiring and Verification
Connect door control inputs from the elevator controller to SmarTraq inverter drive Isolation
board connector J6. These inputs must be supplied by dry contact closures only.
Any external voltages connected to terminals 3, 7, 8, 9, or 10 will damage the drive and void
the drive warranty. DO NOT make input connections to the Main board (bottom board in
drive enclosure).

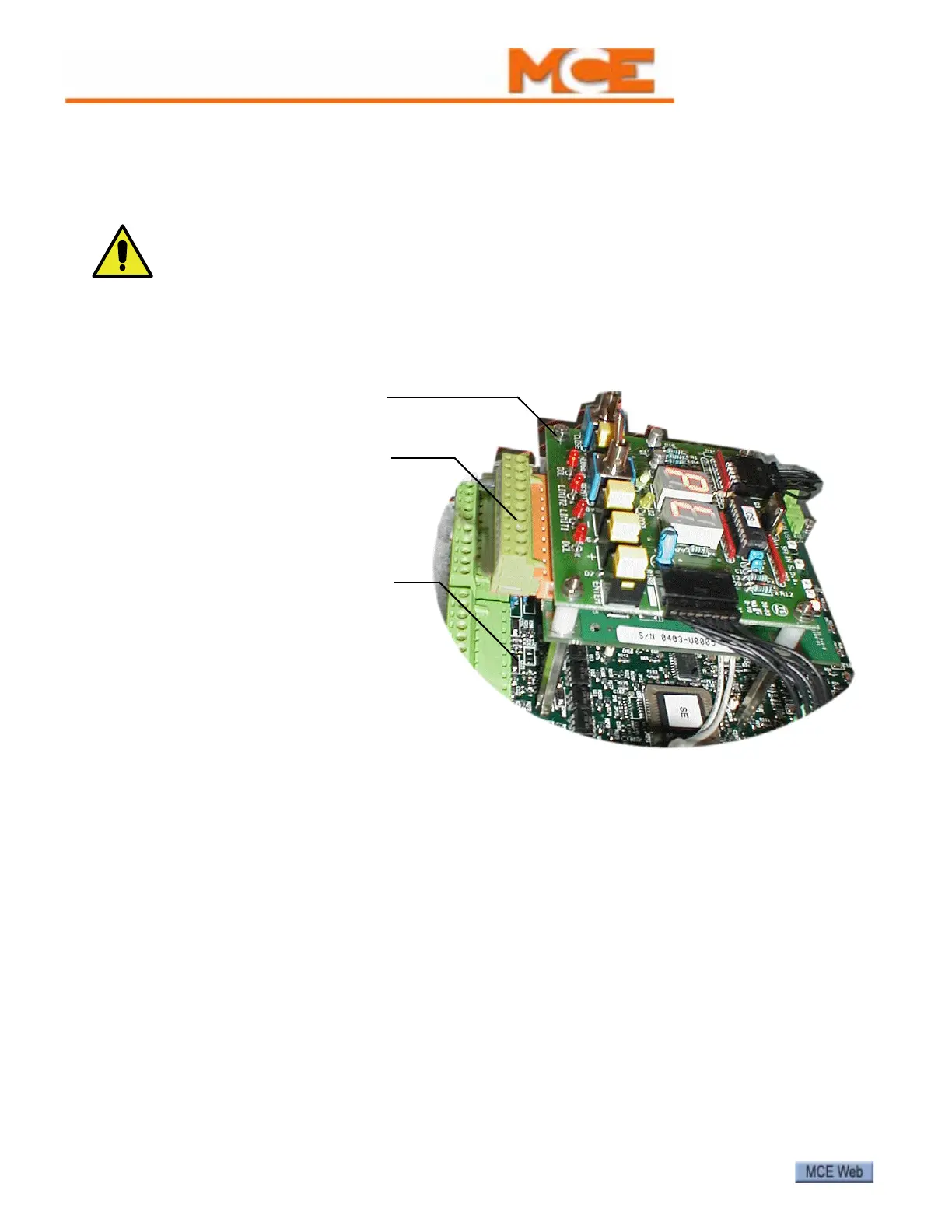

Figure 4. SmarTraq Circuit Boards
Programmer board (top board)
Isolation board (middle board)
Connector J6
Main board (bottom board)
