MCE SmarTRAQ - Product Specifications

SmarTraq
14 Manual # 42-02-D008 Rev. A2
Product Specifications
SmarTraq uses a permanent-magnet, brushless, model motor with a built-in encoder and a
microprocessor-based inverter drive.

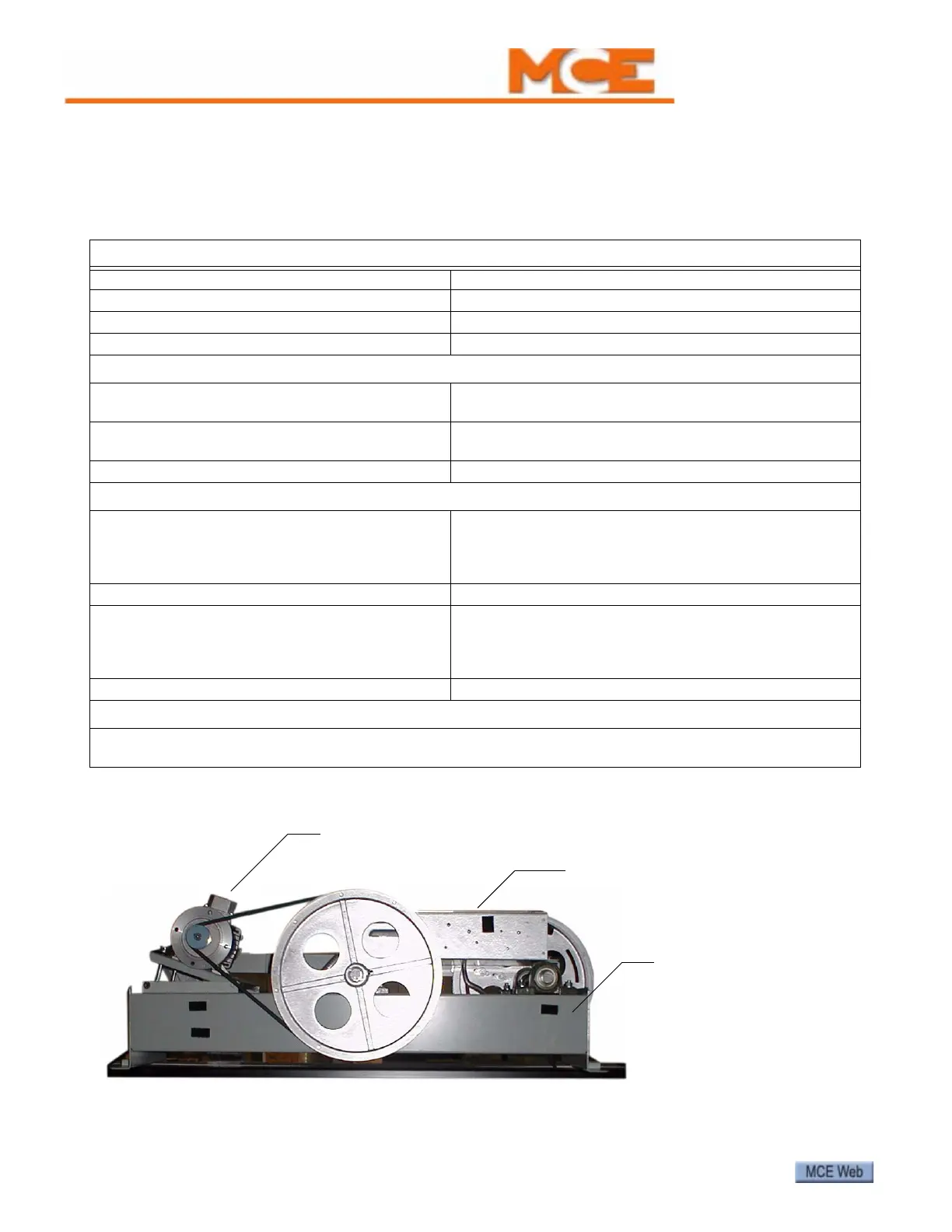

Figure 6. Typical SmarTraq Harmonic Operator
Table 1. SmarTraq Specifications, Interface Data, and Code Compliance
Door Operator Drive Technical Data
Input Voltage 120/208/240VAC, 50/60Hz, Single-phase
Output Voltage 3-Phase, 30VAC, 9A (26A peak)
Power Requirement 300VA
Controller Type Closed Loop, Distance and Velocity Feedback, Limitless
Door Motor Technical Data
Type Three-phase, synchronous, brushless motor with perma-
nent magnet excitation and built-in digital encoder
Motor 0.564 HP, 3-Phase AC, 8-Pole, 30 Volt, 9A (26A peak),
0 — 2000 RPM, 0 — 133Hz
Encoder 640 PPR (Pulses Per Revolution)
Elevator Control Interface Data
Input Signals Door Open
Door Close
Nudging
Heavy Door
Input Signal Level Dry Contact
Output Signals Door Open Limit
Door Close Limit
Limit 1
Limit 2
Output Signal Level N.O./N.C. Contact, 10 Amp
Code Compliance
For ASME A17.1-1996 (Rule 210.15), ASME A17.1-2000/CSA B44-00 (Requirement 2.26.5), or CSA B44-94
(Requirement 3.12.1.5) compliance, mechanical Door Position Monitoring Switch must be provided.
Inverter Drive
Motor (Model 4108 in complete SmarTraq packages)
Operator chassis
(Harmonic)
