C1100C Installation
Installation
The C1100C can be placed upright on a table or
shelf, standing on its four feet. It also can be custom
installed in a piece of furniture or cabinet of your
choice. The four feet may be removed from the bottom
of the C1100C when it is custom installed as outlined
below. The four feet together with the mounting
screws should be retained for possible future use if the
C1100C is removed from the custom installation and
used free standing. The required panel cutout, ventila-
tion cutout and unit dimensions are shown.
Always provide adequate ventilation for your
C1100C. Cool operation ensures the longest possible
operating life for any electronic instrument. Do not
install the C1100C directly above a heat generating
component such as a high powered amplifier. Also
do not stack the C1100T on top of the C1100C. If all
the components are installed in a single cabinet, a
quiet running ventilation fan can be a definite asset in
maintaining all the system components at the coolest
possible operating temperature.
A custom cabinet installation should provide the
following minimum spacing dimensions for cool
operation.
Allow at least 6 inches (15.2cm) above the top, 2
inches (5.1cm) below the bottom and 1 inch (2.5cm)
on each side of the Preamplifier, so that airflow is not
obstructed. Allow 20 inches (50.8cm) depth behind the
front panel. Allow 1‑7/16 inch (3.7cm) in front of the
mounting panel for knob clearance. Be sure to cut out
a ventilation hole in the mounting shelf according to
the dimensions in the drawing.

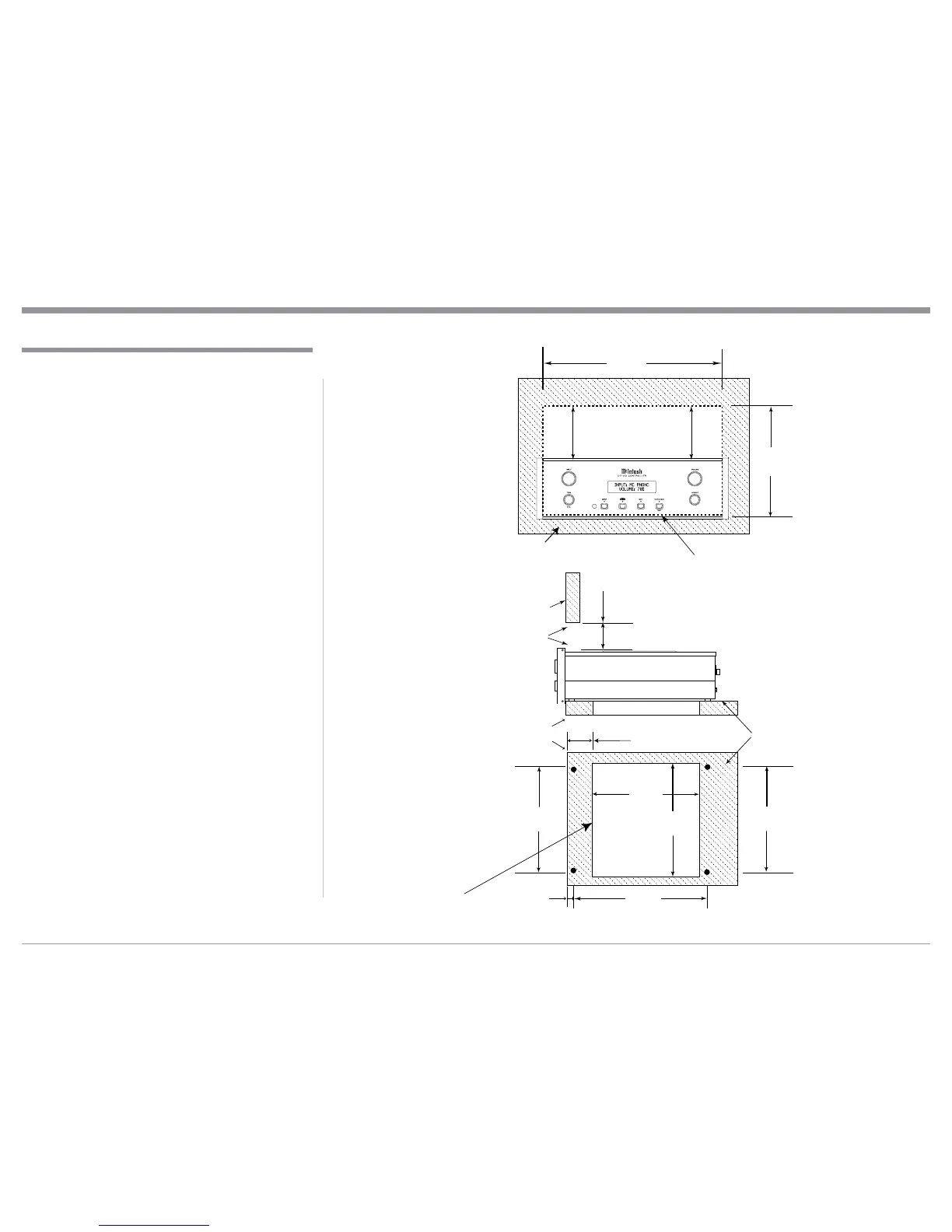

C1100C Front Panel
Custom Cabinet Cutout
Cutout
Opening
for
Ventilation
Cutout Opening
for Ventilation
Support
Shelf
Chassis
Spacers
C1100C Side View
in Custom Cabinet
Note: Center the cutout Horizontally
on the unit. For purposes of
clarity, the above illustration
is not drawn to scale.
C1100C Bottom View
in Custom Cabinet
2-
7/8"
7.3cm
17-3/16"
43.66cm
Cutout Opening for Custom Mounting
Cabinet Front Panel
10-3/4"
27.3cm
Opening for Ventilation
Cabinet
Front
Panel
6"
15.2cm
Opening
for Ventilation
15-1/16"
39.6cm
8-1/8"
23.2cm
13-1/8"
33.3cm
12-5/16"
31.3cm
1-1/8"
2.9cm
15-1/16"
38.3cm
