McIntosh C2600 User Manual

12
IR Sensor receives
commands from a
Remote Control
STANDBY/ON Push-button
with indicator, switches the
C2600 ON or OFF (Standby)
and resets the microprocessors
VOLUME Control allows ad-
justment of the listening level
for both channels. Also used
to change the various TRIM
and SETUP Functions
Connection for low impedance
dynamic headphones, for private
listening
MUTE Push-button mutes
the audio from the Loud-
speakers and Headphones
INPUT Control used to
select a source for listening
and recording. The control is
also used to enter the TRIM
or SETUP Modes and select
the various functions
Meter indicates the
Right Channel Output
of the Preamplifier
Meter indicates the
Left Channel Output
of the Preamplifier
OUTPUT 1 and 2 Push-buttons
with indicators, switch the
Preamplifier Outputs 1 and 2
On or Off
INFORMATION DISPLAY indicates
the Sources, Volume, other Audio
Settings, Operational Functions and
Setup Mode Settings

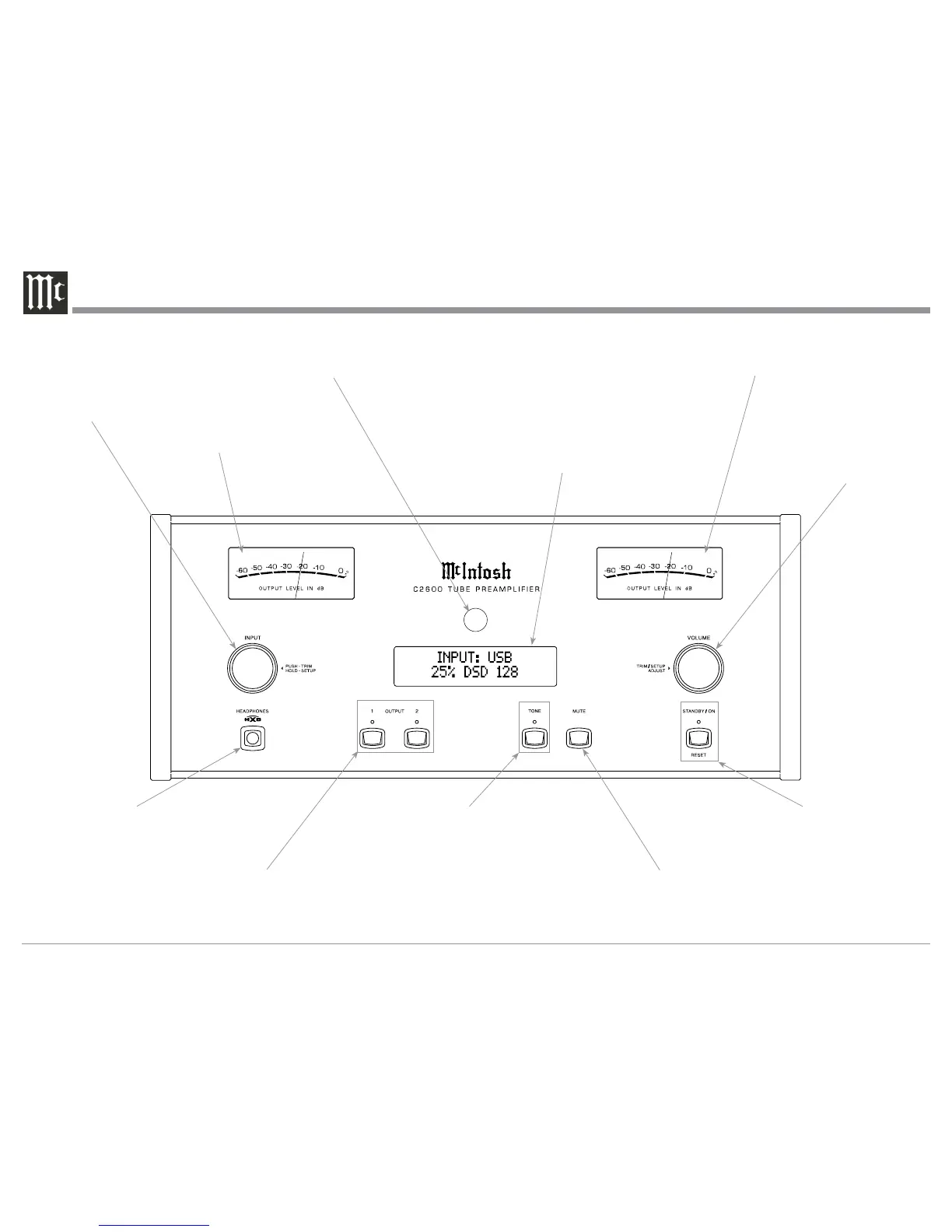

Front Panel Displays, Controls, Push-buttons and Jack
TONE Push-button with indicator,
push to activate the Tone Control
Circuitry for the current Input
Source

McIntosh C2600 Specifications

General

Signal to Noise Ratio	100dB
Phono Stage	Yes
Digital USB Input	1
Digital MCT Input	1
Vacuum Tube	Yes
Type	Tube Preamplifier
Frequency Response	20Hz - 20kHz (+0, -0.5dB)
Phono Inputs	1 Moving Magnet 1 Moving Coil
Outputs	3 Total
Output Impedance	100 ohms
Dimensions	17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)
Headphone Output	1/4" High Drive with Headphone Crossfeed Director (HXD®)
