McIntosh C30

10
REMOTE AREA 2
(CONTROLLED BY
SPEAKER 2
PUSHBUTTON)
REMOTE AREA 1
(CONTROLLED BY
SPEAKER 1
PUSHBUTTON)
POWER
AMPLIFIERS
NOISE REDUCTION PROCESSORS
TAPE MAIN
CUSTOM
ENVIRONMENTAL
EQUALIZER
(FOR MAIN SPEAKERS)
POWER
AMPLIFIER
MAIN SPEAKERS

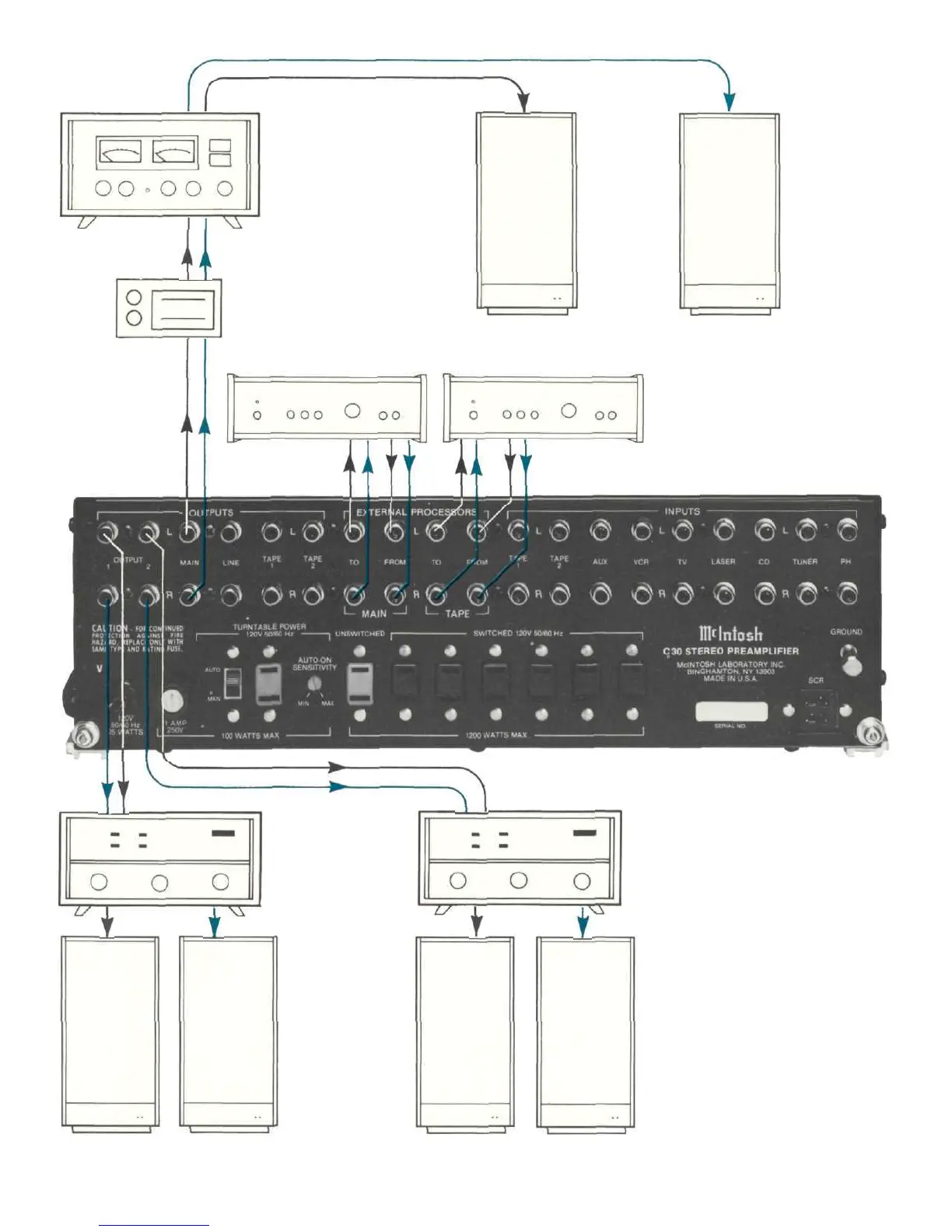

CONNECTIONS FOR
POWER AMPLIFIERS
AND LOUDSPEAKERS
USING MAIN SPEAKERS AND
ENVIRONMENTAL EQUALIZER.
ALSO SHOWN FOR REMOTE
SPEAKERS USING SEPARATE
POWER AMPLIFIERS AND
CONNECTIONS FOR EXTER-
NAL NOISE REDUCTION
SIGNAL PROCESSORS.
