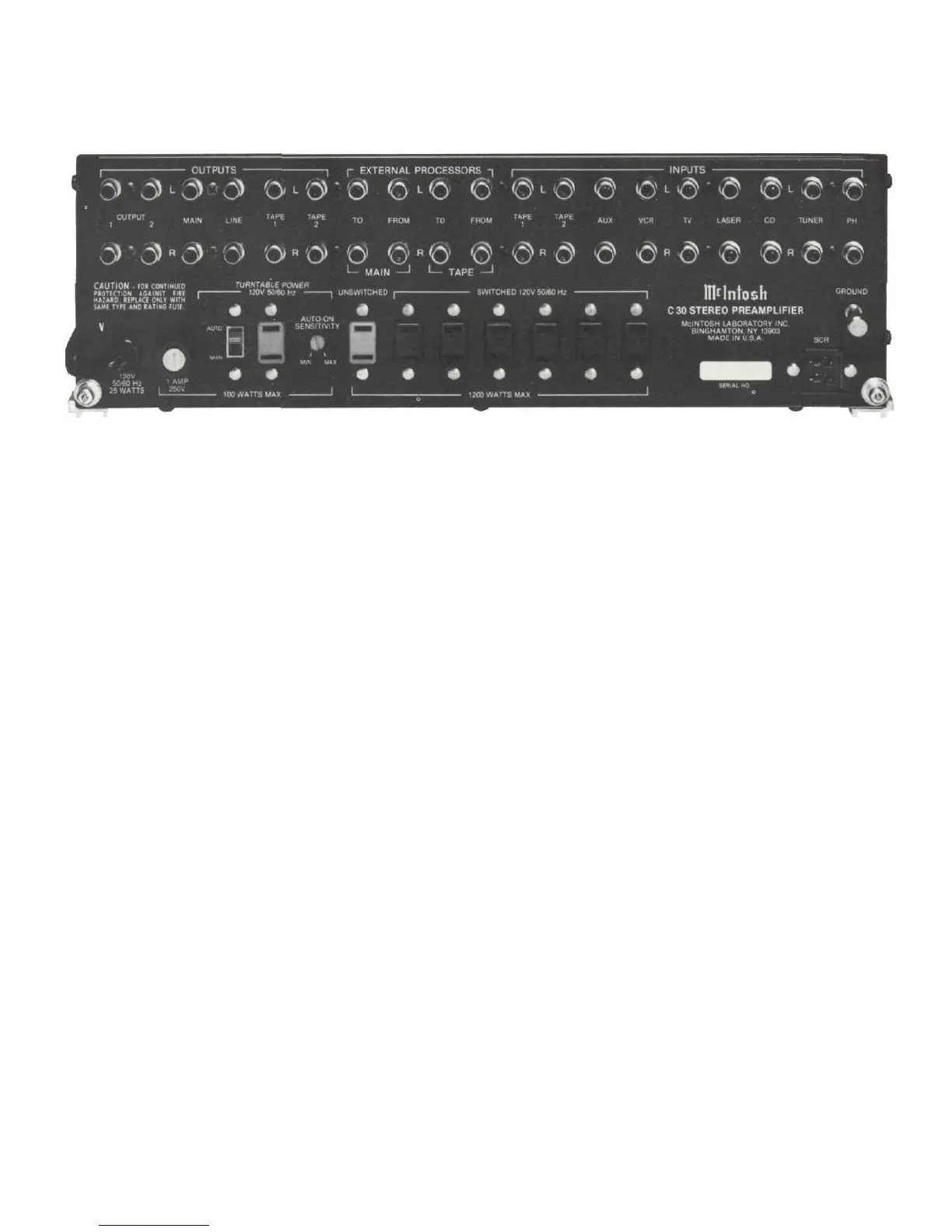

Rear Panel Controls
AUTO MANUAL SWITCH:
In the MANUAL position, the green AC outlet sup-
plys normal line voltage at all times and the turn-
table operation has no effect on the C 30 operation.
In the AUTO position, when the turntable turns on
and off, it will also cause the C 30 and the entire
system to turn on and off.
AUTO-ON SENSITIVITY:
The AUTO-ON SENSITIVITY control is located on
the right rear of the back panel. For normal opera-
tion with most turntables, the control can be left at
mid-position. Some turntables, however, have elec-
tronic circuits that draw current whether they are
turned "off" or not. The C 30 AUTO-ON SENSITIVITY
control can be used to "fine tune" for the smaller dif-
ference between on and "off" currents.
If your turntable does not control the AUTO-ON
feature of the C 30 correctly, use one of the follow-
ing procedures:
1. Switch on the turntable. If the C 30 does not go
on, or goes on but does not stay on, rotate the AUTO-
ON SENSITIVITY control clockwise towards MAX
until the C 30 goes on and stays on. Then check for
proper operation.
2. Switch off the turntable. If the C 30 does not go
off, rotate the AUTO-ON SENSITIVITY control
counterclockwise towards MIN until it does go off.
Check for proper operation.
If this doesn't correct the problem, your turntable
probably has electronic circuits that draw the same
or nearly the same current whether on or off. AUTO-
ON control is not possible when using this turntable.
The green AC outlet can still be used but the
AUTO/MANUAL switch must be set in the MANUAL
position. The red POWER pushbutton must be used
instead.
15
