12
IR Sensor receives
commands from a
Remote Control
STANDBY/ON
Push-button with
indicator, switches
the C48 ON or OFF
(Standby) and resets
the microprocessors
VOLUME Control
allows adjustment
of the listening level
for both channels
Connection for low
impedance dynamic
headphones, for
private listening
MUTE Push-button
mutes the audio from
the Loudspeakers and
Headphones
INPUT Control al-
lows the selection of
various sources for
listening and record-
ing
OUTPUT 1 and 2
Push-buttons with
indicators, switch the
Preamplifier Outputs
1 and 2 On or Off
INFORMATION DISPLAY
indicates the Sources, Vol-
ume, other Audio Settings,
Operational Functions and
Setup Mode Settings
EQualizer BYPASS
Push-button with indica-
tor, when activated the
audio signal bypasses the
Equalizer Controls, also
used to enter and exit the
Setup Mode
TRIM Push-button
with indicator, allows
selection of various
types of settings
EQUALIZER Controls increase
or decrease the volume levels at
the Center Frequencies of 30Hz,
125Hz, 500Hz, 2,000Hz, and
10,000Hz
MONO with indicator,
combines the Left and
Right Channel signals for
Monophonic Sound

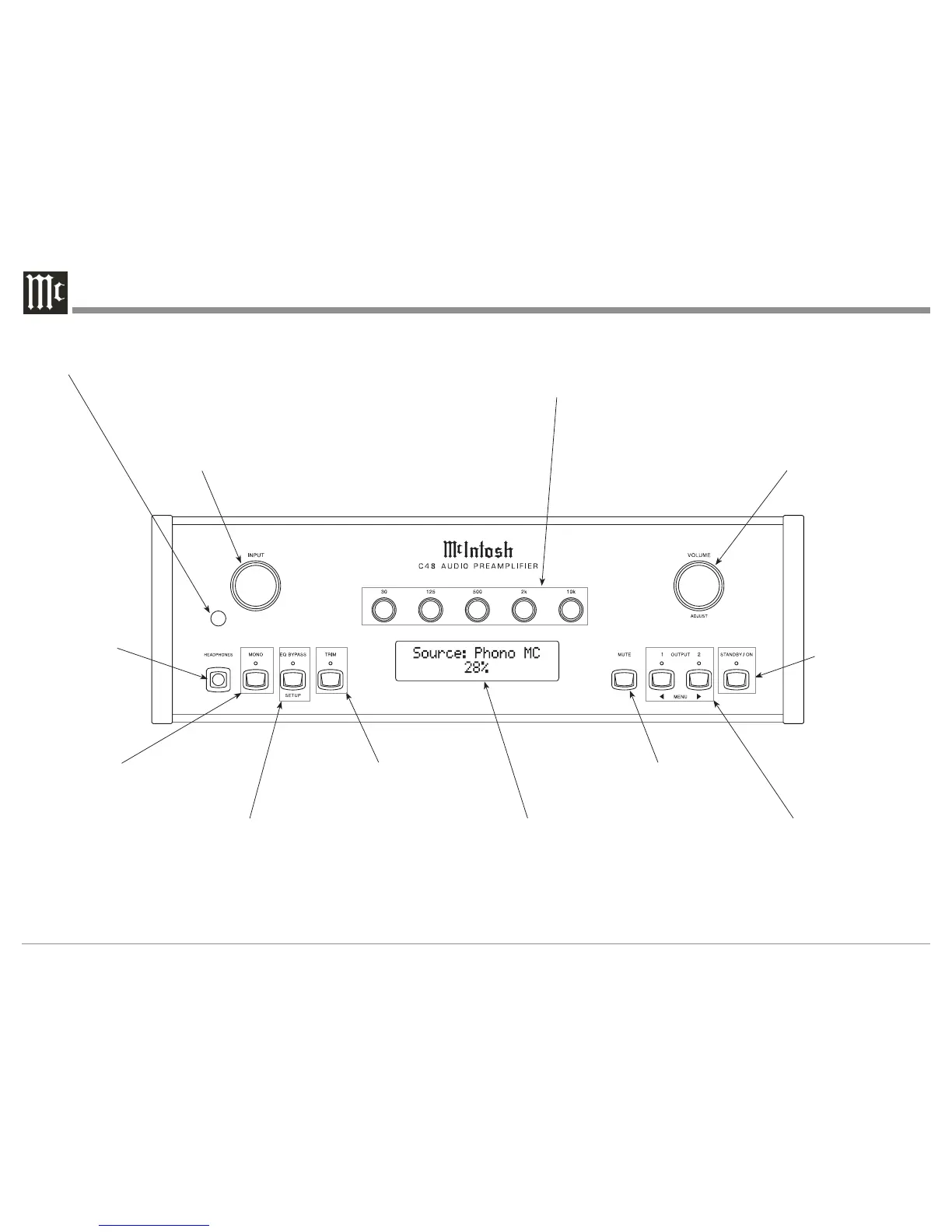

Front Panel Displays, Controls, Push-buttons and Jack
To Next Page
