McIntosh MA352 User Manual

5

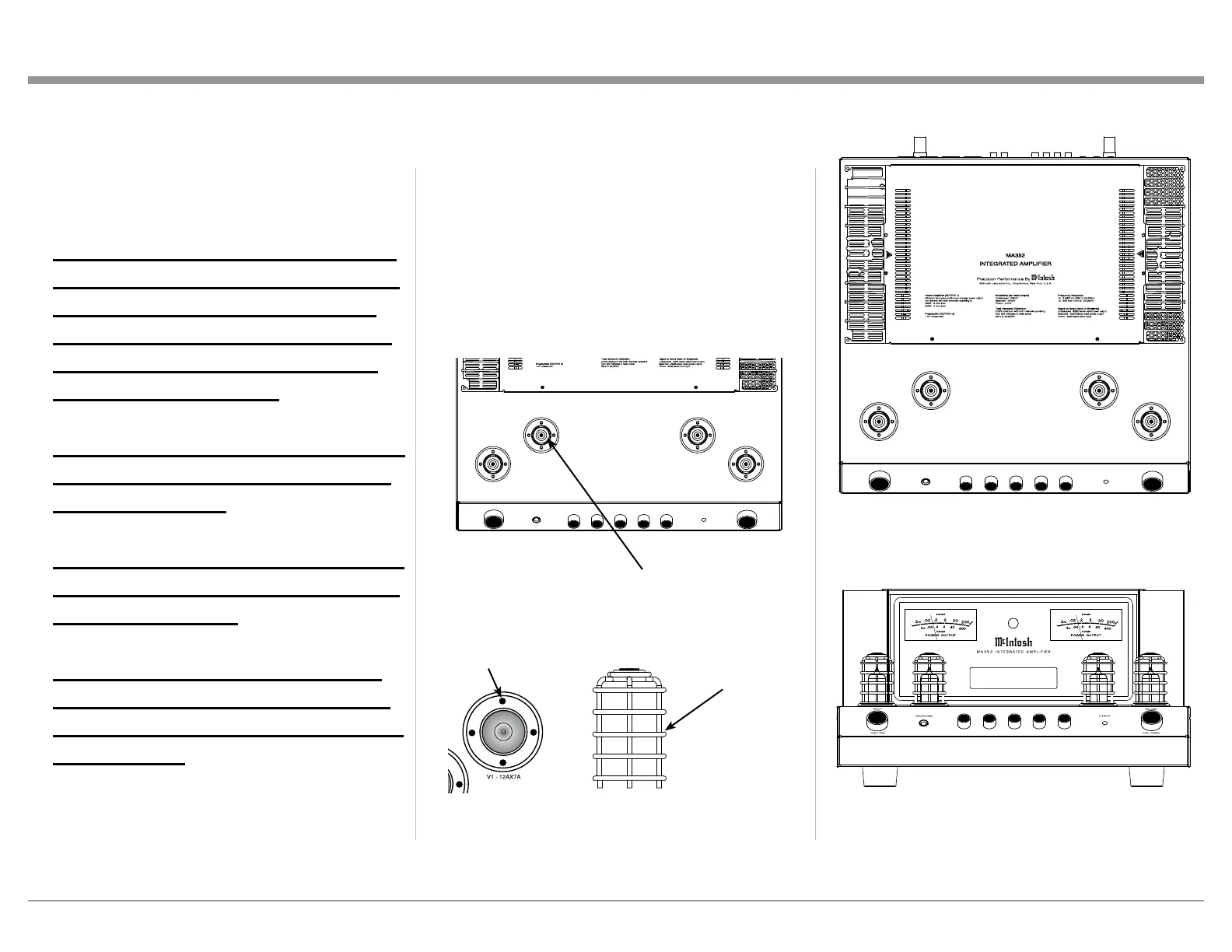

5. The MA352 Integrated Amplifier has four Small
Vacuum Tubes that are inserted into special
Vacuum Tube Sockets on the Stainless Steel Chas-
sis. Refer to figure E.
Each of the Tube Sockets have four pin openings
to accept the Vacuum Tube Shield Covers. Refer
to figure F.
Carefully install the Vacuum Tube Shield Covers
into each of the Vacuum Tube Sockets orienting
the Shield so the “Mc” on top of the Shield is fac-
ing forward. Refer to figures G and H.
Figure E
WA R N I NG:
The supplied Vacuum Tube Shield
Covers must be installed over each
of the four Small Vacuum Tubes
before the MA352 Integrated Am-
plifier is connected to AC Power
and activated for use!!
Failure to do so has the potential to
cause physical harm to human be-
ings and animals.
This could also result in damage to
the Vacuum Tubes and the MA352
Internal Circuitry.
It also prevents the potential of a
Fire Hazard, resulting in damage
to the MA352 and the surrounding
environment.
Special Vacuum Tube Sockets
Figure F
Vacuum Tube
Shield Covers
Pin Openings
Figure G
Figure H
Unpacking the MA352
VOLUME
INPUT
HEADPHONES
PUSH - TRIM
PUSH - POWER
STANDBY
30 125 500 2k 10k
V3 - 12AT7
V1 - 12AX7A
V4 - 12AT7
V2 - 12AX7A
VOLUME
INPUT
HEADPHONES
PUSH - TRIM
PUSH - POWER
STANDBY
30 125 500 2k 10k
V3 - 12AT7
V1 - 12AX7A
V4 - 12AT7
V2 - 12AX7A
30
125
500
2K 10K
BAL 1 15%

McIntosh MA352 Specifications

General

Total Harmonic Distortion	0.03%
Number of Channels	2
Speaker Impedance	4, 8 Ohms
Rated Power Band	20Hz to 20kHz
Headphone Output	Yes
Home Theater PassThru	Yes
Type	Integrated Amplifier
Input Impedance (Line)	20K ohms
Input Impedance (MM)	47K ohms, 50pF
Frequency Response	+0, -0.5dB from 20Hz to 20kHz
Signal to Noise Ratio	100dB
Preamplifier Inputs	1 Balanced
Variable Output	1
Phono Input	Moving Magnet
Vacuum Tube or Solid State	Hybrid (Vacuum Tube and Solid State)
Vacuum Tube Complement	2 x 12AX7A, 1 x 12AT7
Input Sensitivity	0.5V (Balanced)
Input Impedance	20K ohms Balanced, 20K ohms Unbalanced
