10
The MA5300 Power Amplifier, together with an ad-
ditional separate Power Amplifier, may be used to
Bi-Amplify a Loudspeaker System. In the illustration
on this page, the Power Amplifier of the MA5300 is
connected to the Midrange/High Frequency Section
of the Loudspeaker. The additional separate Power
Amplifier is connected to the Low Frequency Section
of the Loudspeaker System.
Warning: The Loudspeaker System used for
Bi-Amplification must have the
jumpers removed from between the
MID/HIGH and LOW Frequency
Sections of the Loudspeaker System.
Failure to remove them could result
in damage to the MA5300 and/or the
separate Power Amplifier.
MA5300 Connections:
1. Remove the “McIntosh Jumpers” from between
the PREAMP Jacks and the PWR AMP In Jacks
located on the Rear Panel of the MA5300.
Note: Place the “McIntosh Jumpers” in a safe
place for possible future use.
2. Using a pair of shielded RCA Type Audio “Y”
Adapters connect the PREAMP Jacks to the PWR
AMP In Jacks, for both Left and Right Channels
on the MA5300.
3. Connect the remaining unconnected part of the
“Y” Adapters to the separate Power Amplifier.
4. Referring to the Loudspeaker Connection Instruc-
tions on page 11, and in the Owner’s Manual sup-
plied with the Power Amplifier and Loudspeaker,
connect the MA5300 Output Terminals to the
Loudspeaker MID/HIGH Input Terminals.
Note: The Loudspeaker Connection illustrations
on this page are for the Left Channel. Con-
nect the Right Channel Loudspeaker in the
same manner.

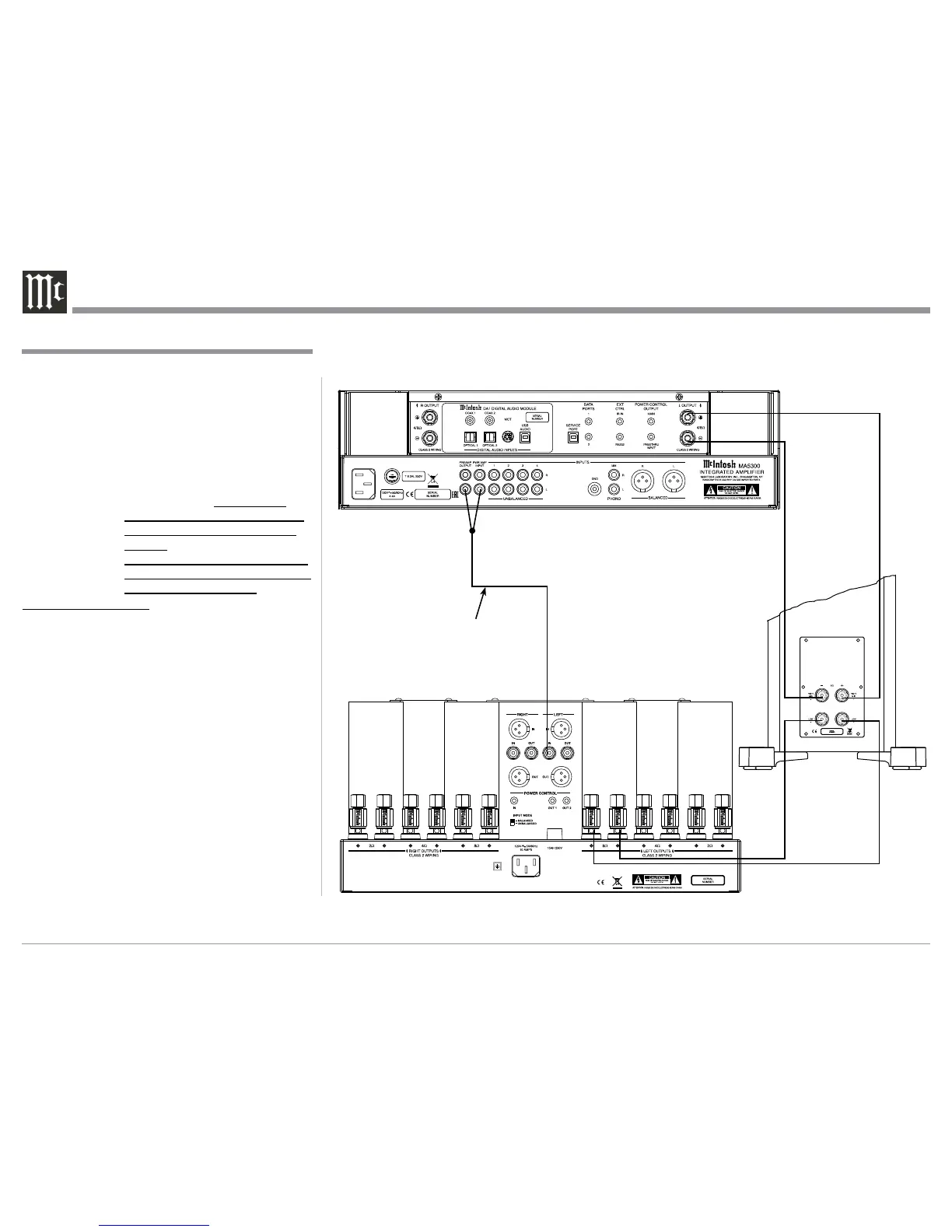

Connecting for Bi-Amplification
Connecting for Bi-Amplification
+
-
Left Channel
Loudspeaker
“Y” adapter Cable
Power Amplier
To Next Page
