7

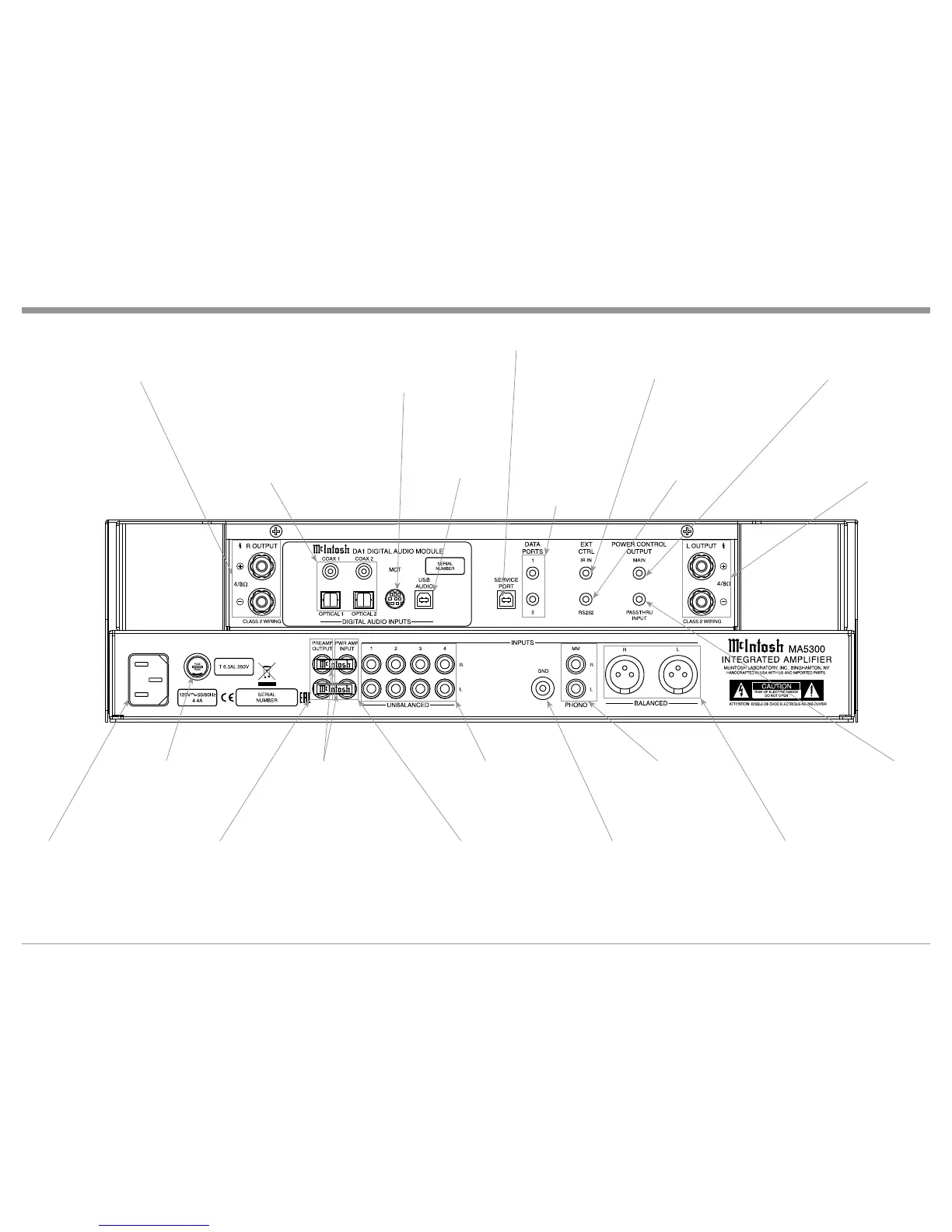

MA5300 Rear Panel Connections
RIGHT OUTPUT
connections for a
4 or 8 ohm
Loudspeaker
PHONO MM accepts
signals from a Moving
Magnet Phono Cartridge
or a high output Moving
Coil Cartridges
GND terminal
accepts a ground
wire from a
turntable
BALANCED INPUTS
accept high level pro-
gram source signals
PREAMP OUTPUT sends
signals to the internal Power
Amplifier or to an external
Power Amplifier
PWR AMP INPUT accepts
signals from the internal
Preamplifier or a separate
external Preamplifier
JUMPER PLUGS connect
the PREAMP OUTPUT
to the PWR AMP INPUT
and are required for normal
operation
POWER CONTROL MAIN OUT-
PUT sends turn On/Off signals to
a McIntosh Component when the
MA5300 is switched On/Off
PASSTHRU POWER
CONTROL INPUT re-
ceives turn On/Off signals
from an Audio/Video
Control Center
DATA PORTS send
signals to Source
Components to
allow control with
the MA5300
Remote Control
RS232 connector
1
for connection to a
computer or other
control device
IR INput for
signals from a
compatible IR
Room Sensor
Connect the MA5300 power
cord to a live AC outlet.
Refer to information on the
back panel of your MA5300
to determine the correct
voltage for your unit
Main Fuse holder, refer to
information on the back
panel of your MA5300 to
determine the correct fuse
size and rating
LEFT OUTPUT
connections for
a 4 or 8 ohm
Loudspeaker
1
Refer to page 3 for additional
cable information.
UNBALANCED INPUTS
1 thru 4 accept high level
program source signals
DIGITAL AUDIO INPUTS
for components with Digital
Optical and Coaxial Out-
puts sending digital audio
signals
USB DIGITAL
AUDIO INPUT
for connection
to a computer
MCT DIGITAL AUDIO
INPUT for streaming
high bandwidth digital
signals from SACD/CD
Transport Components
SERVICE PORT
for service use only
To Next Page
