5. Connect the MA8900 power cord to an active AC
outlet.
Spade Lug or Wire Connections:
6. Connect the Loudspeaker hookup cables to the
MA8900 Negative Output Terminal and Posi-
tive Output Terminal indentified as 2Ω (ohms),
4Ω (ohms) or 8Ω (ohms) connection to match the
impedance of the Loudspeaker, being careful to
observe the correct polarities. Insert the spade
lug connector or prepared section of the cable end
into the terminal side access hole, and tighten the
terminal cap until the cable is firmly clamped into
the terminals so the lugs or wire cannot slip out.
Refer to figures L and M.
Note: The illustration located on the separate folded
sheet “Mc2B” is for connection to an 8Ω
(ohms) Loudspeaker.
If the Loudspeaker’s impedance is in-between the
available connections, use the nearest lower im-
pedance connection. Refer to “General Informa-
tion” Note 6 on page 3 for additional information.
WARNING: Loudspeaker terminals are hazard-
ous live and present a risk of electric
shock. For additional instruction on
making Loudspeaker Connections con-
tact your McIntosh Dealer or McIn-
tosh Technical Support.
7. Connect the MA8900 power cord to an active AC
outlet.
Connecting Loudspeakers

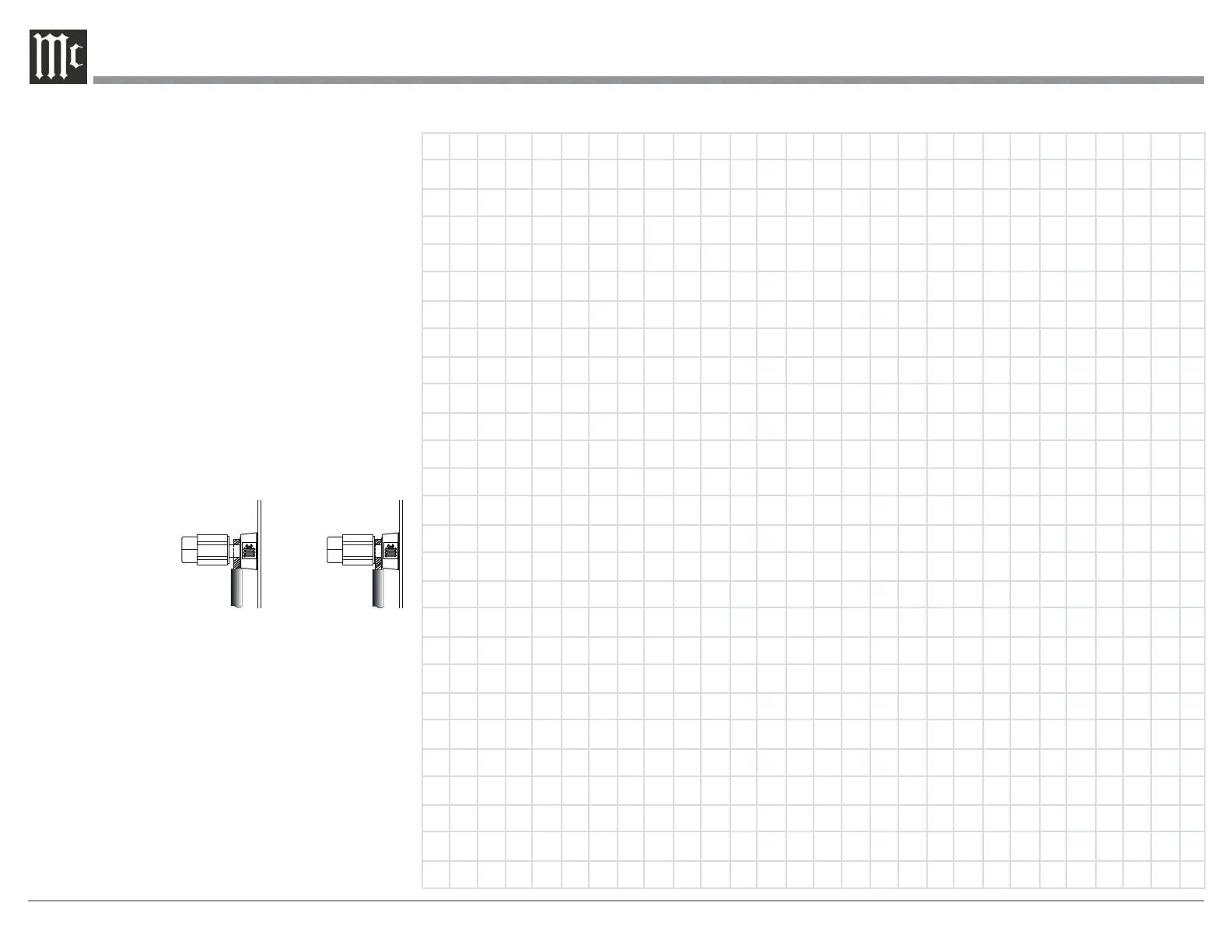

Figure L
Figure M

McIntosh MA8900 Specifications

General

Power Output per Channel (8 Ohms)	200 Watts
Power Output per Channel (4 Ohms)	200 Watts
Number of Channels	2
Total Harmonic Distortion	0.005%
Input Impedance	20k ohms
Speaker Impedance Taps	4, 8 Ohms
Rated Power Band	20Hz to 20kHz
Headphone Output	Yes
Home Theater PassThru	Yes
Tone Controls	Bass and Treble
Tone Bypass	Yes
High Drive Headphone Amplifier	Yes
Digital USB Input	1
Digital Coaxial Input	2
Digital Optical Input	2
Digital MCT (DIN) Input	1
Power Output per Channel	200 Watts
Frequency Response	+0, -0.5dB from 20Hz to 20, 000Hz
Dimensions (W x H x D)	17.5 x 9.5 x 22 inches
Weight	75 lbs (34 kg)
Dynamic Headroom	2.0dB
Damping Factor	>40
Preamplifier Inputs	1 Balanced, 6 Unbalanced
Variable Outputs	1 unbalanced, 1 balanced
Power Requirement	120V 50/60Hz
Digital Input Sample Rate	192kHz
Standby Power Requirement	<0.5 Watts
Digital Input Bit Depth	Up to 32-bit
