Installation
Installation
The MA8900 can be placed upright on a table or
shelf, standing on its four feet. It also can be custom
installed in a piece of furniture or cabinet of your
choice. The four feet may be removed from the bottom
of the MA8900 when it is custom installed as out-
lined below. The four feet together with the mounting
screws should be retained for possible future use if the
MA8900 is removed from the custom installation and
used free standing. The required panel cutout, ventila-
tion cutout and unit dimensions are shown.
Always provide adequate ventilation for your
MA8900. Cool operation ensures the longest possible
operating life for any electronic instrument. Do not
install the MA8900 directly above a heat generat-
ing component such as a high powered amplifier. If
all the components are installed in a single cabinet, a
quiet running ventilation fan can be a definite asset in
maintaining all the system components at the coolest
possible operating temperature.
A custom cabinet installation should provide the
following minimum spacing dimensions for cool
operation.
Allow at least 6 inches (15.24cm) above the top, 2
inches (5.08cm) below the bottom and 2 inches (5.1cm)
on each side of the Integrated Amplifier, so that air-
flow is not obstructed. Allow 20 inches (50.8cm) depth
behind the front panel. Allow 1-7/6 inch (3.66cm) in
front of the mounting panel for knob clearance. Be
sure to cut out a ventilation hole in the mounting shelf
according to the dimensions in the drawing.
USB 35%
DSD256
6 -5/8"
16.83cm
17-1/16"
43.34cm

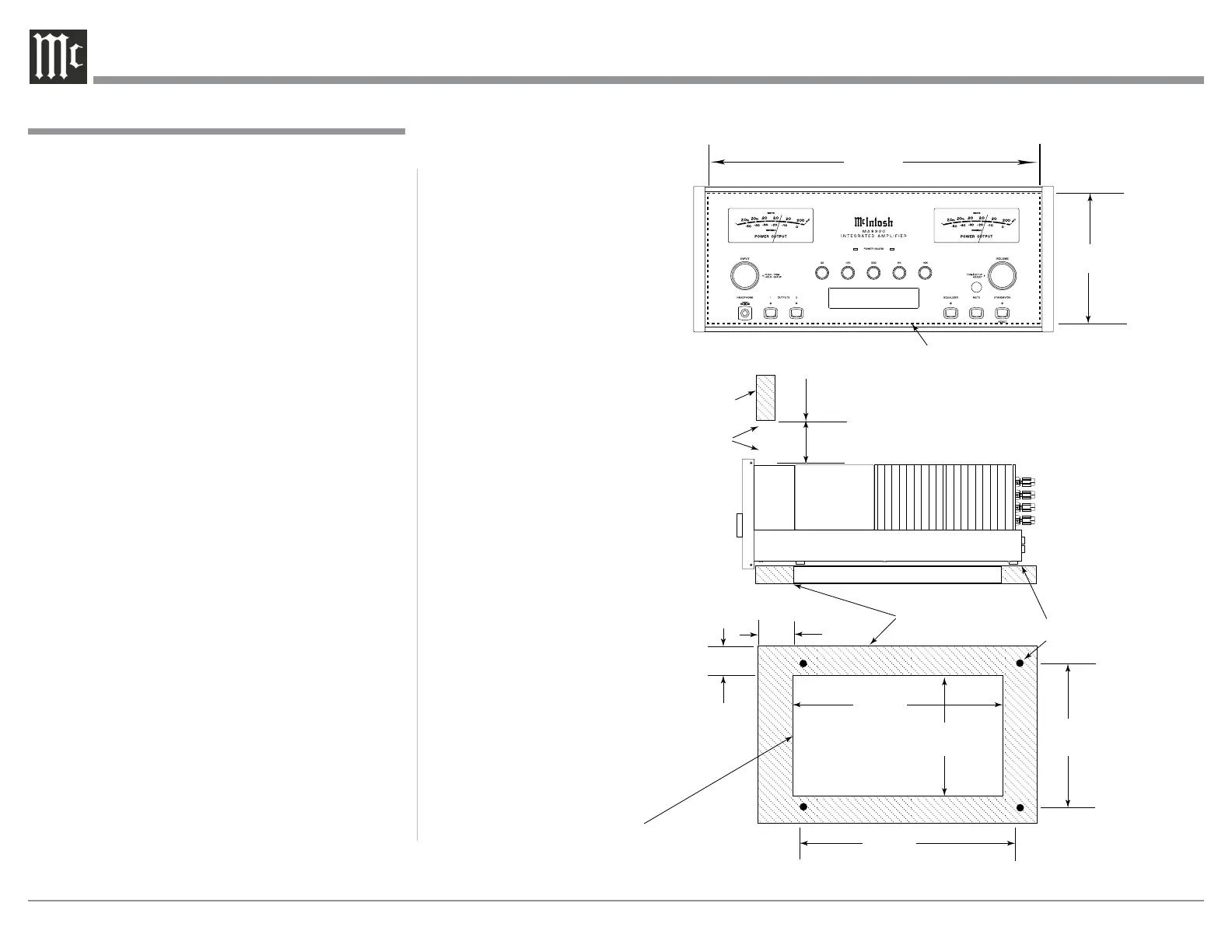

Cutout Opening for Custom Mounting
MA8900 Front Panel
Custom Cabinet Cutout
Cutout
Opening
for
Ventilation
Cutout Opening for Ventilation
Support
Shelf
Cabinet
Front
Panel
Chassis
Spacers
MA8900 Side View
in Custom Cabinet
MA8900 Bottom View
in Custom Cabinet
14-1/2"
36.8cm
1"
2.5cm
6"
15.2cm
Opening
for Ventilation
13"
33cm
15-1/16"
38.3cm
2"
5.1cm
Note: Center the cutout Horizontally
on the unit. For purposes of
clarity, the above illustration
is not drawn to scale.
13-5/16"
33.8cm

McIntosh MA8900 Specifications

General

Power Output per Channel (8 Ohms)	200 Watts
Power Output per Channel (4 Ohms)	200 Watts
Number of Channels	2
Total Harmonic Distortion	0.005%
Input Impedance	20k ohms
Speaker Impedance Taps	4, 8 Ohms
Rated Power Band	20Hz to 20kHz
Headphone Output	Yes
Home Theater PassThru	Yes
Tone Controls	Bass and Treble
Tone Bypass	Yes
High Drive Headphone Amplifier	Yes
Digital USB Input	1
Digital Coaxial Input	2
Digital Optical Input	2
Digital MCT (DIN) Input	1
Power Output per Channel	200 Watts
Frequency Response	+0, -0.5dB from 20Hz to 20, 000Hz
Dimensions (W x H x D)	17.5 x 9.5 x 22 inches
Weight	75 lbs (34 kg)
Dynamic Headroom	2.0dB
Damping Factor	>40
Preamplifier Inputs	1 Balanced, 6 Unbalanced
Variable Outputs	1 unbalanced, 1 balanced
Power Requirement	120V 50/60Hz
Digital Input Sample Rate	192kHz
Standby Power Requirement	<0.5 Watts
Digital Input Bit Depth	Up to 32-bit
