McIntosh MA9500 User Manual

PU S H PU S H P US H
PU S H
FUSE
PUSH
MA9500 INTEGRATED AMPLIFIER
McINTOSH LABORATORY, INC., BINGHAMTON, NY
HANDCRAFTED IN USA WITH US AND IMPORTED PARTS
R OUTPUT
8Ω
4Ω
2Ω
R
L
OUTPUT 2
BALANCED INPUTS
2R 2L 1R
1L
L OUTPUT
8Ω
4Ω
2Ω
DATA PORTS
3
1
4
2
IR IN
RS232
EXT
CTRL
POWER CONTROL
OUTPUTS
MAIN
TRIG 1
PASSTHRU
INPUT
TRIG 2
SERVICE
PORT
CLASS 2 WIRINGCLASS 2 WIRING
120V 50/60Hz
6.6A
T 10AH 250V
FIXED 1 PWR AMP 1
2
OUTPUTS
UNBALANCED INPUTS
3 4 5 6
L
R
LR GND
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
SERIAL
NUMBER
L
R
GND
ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
MC
MM
PHONO
DA2 DIGITAL AUDIO MODULE
HDMI (ARC)
MCT
OPTICAL 1
DIGITAL AUDIO INPUTS
USB AUDIO
COAX 1 COAX 2
OPTICAL 2
6.6
Power Amplifier - Secondary Room
Left Loudspeaker - Secondary RoomRight Loudspeaker - Secondary Room
Right Loudspeaker
Left Loudspeaker
+
-
+
-
+
-
+
-
Connection Legend:
Data Cable* Digital Signal Cable
Sensor/Keypad Cable Ground Wire
Power Control Cable* Audio Signal Cable
Loudspeaker Cable
* 2 conductor shielded with 1/8 inch stereo mini phone plug on each end.

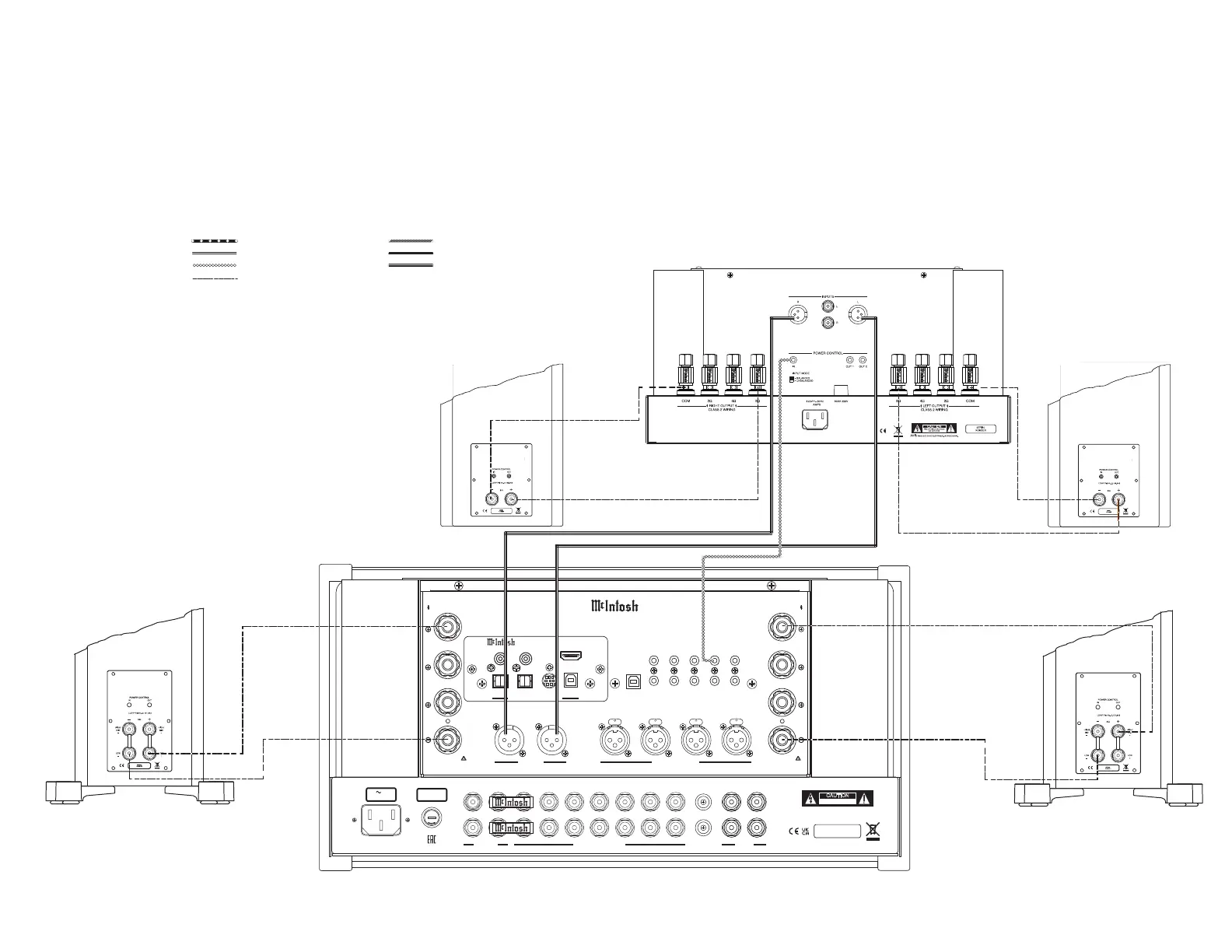

MA9500 Connection Diagram - Output and Loudspeaker
Output and Loudspeakers:

McIntosh MA9500 Specifications

General

Number of Channels	2
Total Harmonic Distortion	0.005%
Bypassable Tone Controls	Yes
Rear Panel IR Sensor Input	Yes
Power Output per Channel	300 Watts
Frequency Response	20Hz - 20kHz (+0, -0.5dB)
Damping Factor	40
Weight	93 lbs
Speaker Impedance	2, 4, or 8 Ohms
Rated Power Band	20Hz - 20kHz
Phono Input	Yes
Headphone Output	Yes
Tone Controls	Yes
Power Control Output	Yes
