WLAN ANT 1
WLAN ANT 2
Tur nta ble
IR Sensor
AM/FM Tuner
30
Media Server
SACD/CD Transport
Digital Audio Player
Computer
Connection Legend:
Data Cable* Digital Signal Cable
Sensor/Keypad Cable Ground Wire
Power Control Cable* Audio Signal Cable
Loudspeaker Cable
* 2 conductor shielded with 1/8 inch stereo mini phone plug on each end.

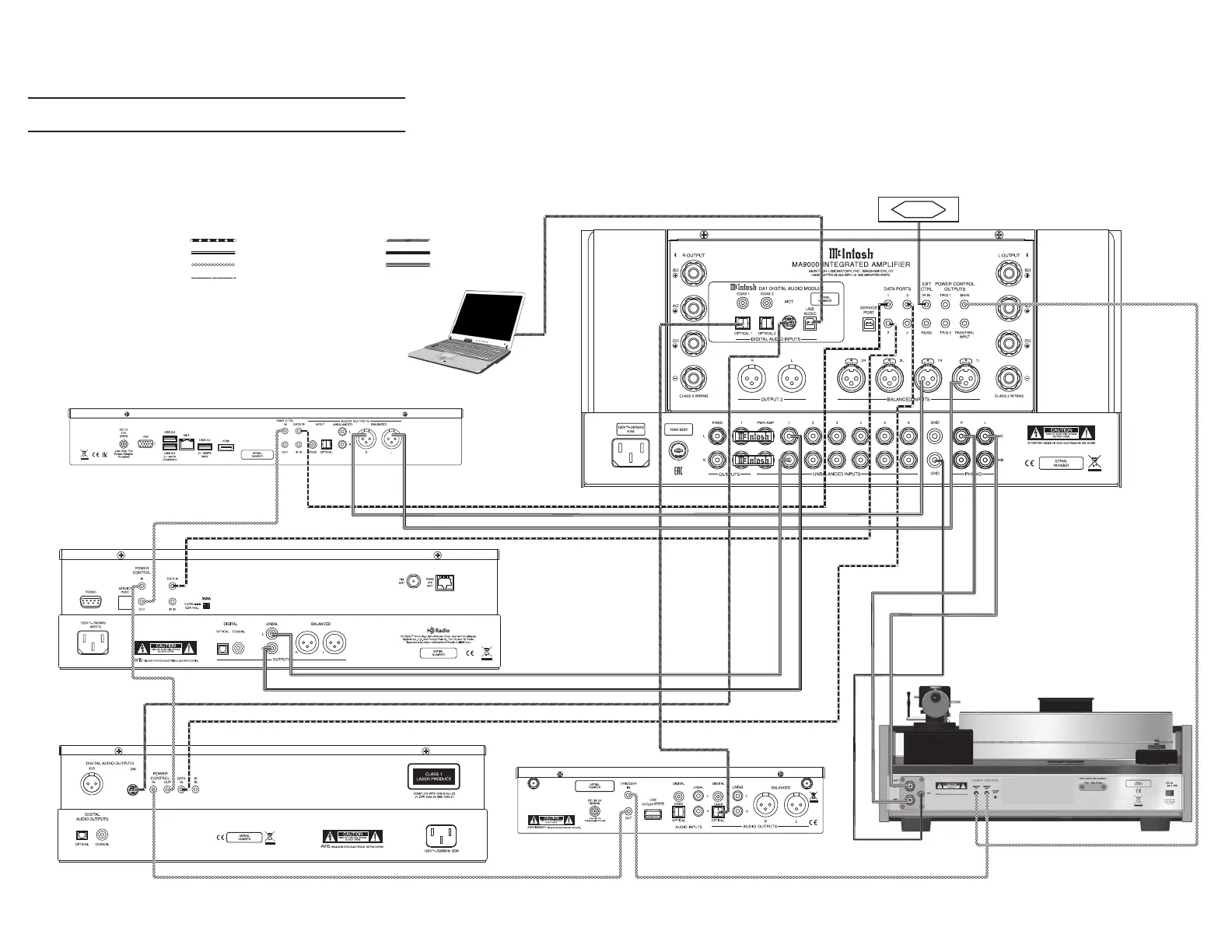

MA9500 Connection Diagram - Input and Control
Connecting Devices (Diagrams)
Input and Control:
