7

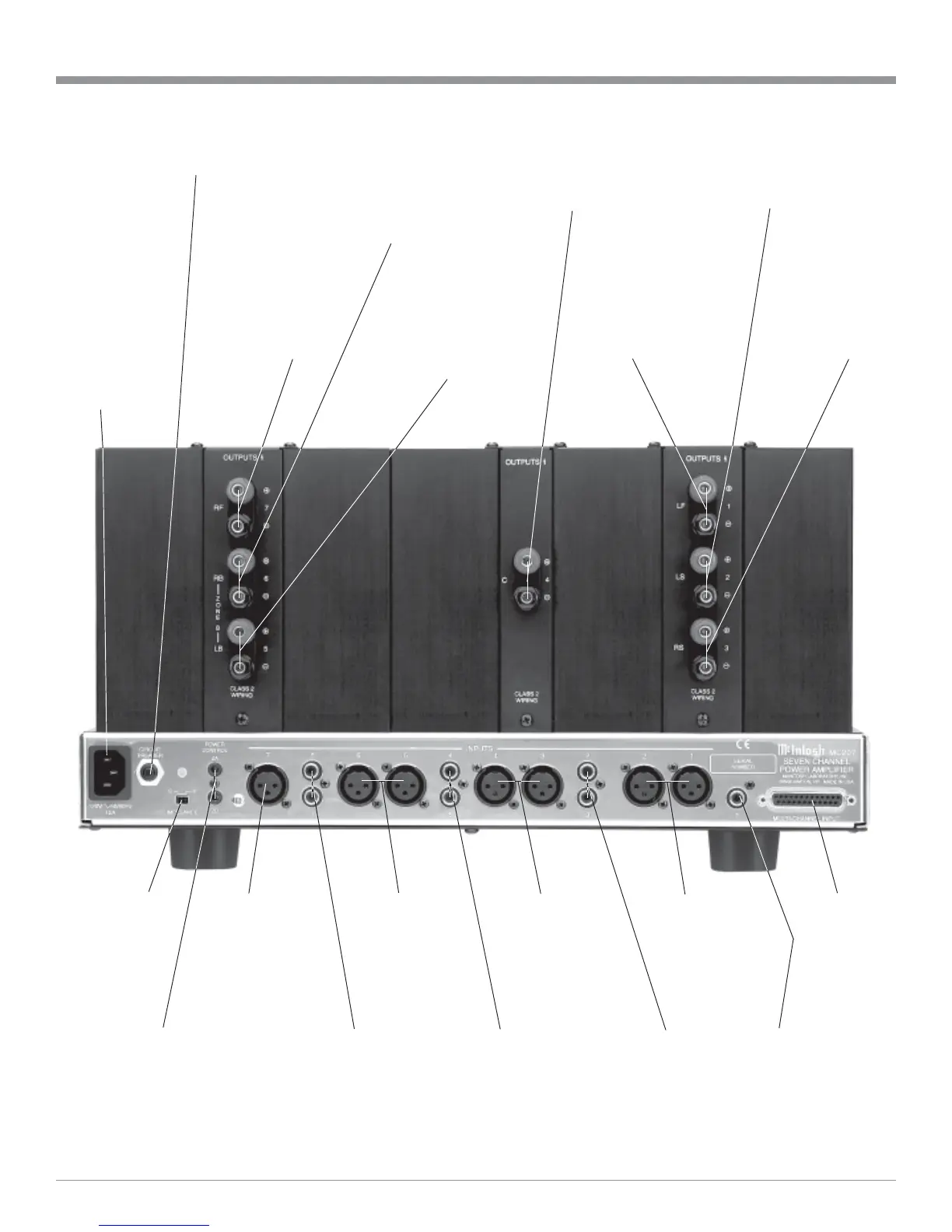

Rear Panel Connections and Switch
Connect the
MC207 power cord
to a live AC outlet.
Refer to informa-
tion on the back
panel to determine
the correct voltage
MULTI-
CHANNEL
INPUT ac-
cepts a 25
conductor
DB25 com-
puter type
cable that
connects all
audio and
power con-
trol signals
POWER CONTROL ZA receives
turn On/Off signals from a McIntosh
component for Zone A (Channels 1-
7). POWER CONTROL ZB receives
turn On/Off signals from a McIntosh
component for Zone B (Channels 5
and 6).
OUPUT Connections
for 4 ohm or 8 ohm
Loudspeaker for
Channel 7 (Right
Front)
Resettable Circuit
Breaker
Unbalanced INPUTS
(6-7) for discrete audio
cables from an A/V
Control Center or
Preamplifier Audio Out-
puts
Selects the imped-
ance (4 or 8 ohms)
of the Loudspeak-
ers connected to
the MC207
OUPUT Connections
for 4 ohm or 8 ohm
Loudspeaker for
Channel 6 (Right
Back) or Right Chan-
nel for Zone B
OUPUT Connections
for 4 ohm or 8 ohm
Loudspeaker for
Channel 5 (Left Back)
or Left Channel for
Zone B
OUPUT Connections
for 4 ohm or 8 ohm
Loudspeaker for
Channel 4 (Center
Front)
OUPUT Connections
for 4 ohm or 8 ohm
Loudspeaker for Chan-
nel 1 (Left Front)
OUPUT Connections
for 4 ohm or 8 ohm
Loudspeaker for
Channel 3 (Right Sur-
round)
OUPUT Connections
for 4 ohm or 8 ohm
Loudspeaker for Chan-
nel 2 (Left Surround)
Balanced INPUTS
(7) for discrete au-
dio cables from an
A/V Control Center
or Preamplifier Au-
dio Outputs
Balanced INPUTS
(5-6) for discrete
audio cables from
an A/V Control
Center or Pream-
plifier Audio Out-
puts
Unbalanced INPUTS
(4-5) for discrete audio
cables from an A/V
Control Center or
Preamplifier Audio Out-
puts
Balanced INPUTS
(3-4) for discrete
audio cables from
an A/V Control
Center or Pream-
plifier Audio Out-
puts
Unbalanced INPUTS (1-3)
for discrete audio cables
from an A/V Control Center
or Preamplifier Audio Out-
puts
Balanced INPUTS
(1-2) for discrete
audio cables from
an A/V Control
Center or Preampli-
fier Audio Outputs
To Next Page
