Packing Instructions
Packing Instructions
Quantity Part Number Description
1 034052 Shipping carton top
1 034051 Shipping carton bottom
2 034054 Foam Pad (top and bottom)
2 034186 Foam Pad (front and rear)
2 034187 Foam Pad (sides)
1 034136 Inner carton top
1 034137 Inner carton bottom
1 034188 Foam Pad (inner carton)
1 034008 Bottom pad
1 034226 Shipping skid
4 101212 1/4 - 20x2-1/4 cap screw
4 104058 Flat washer

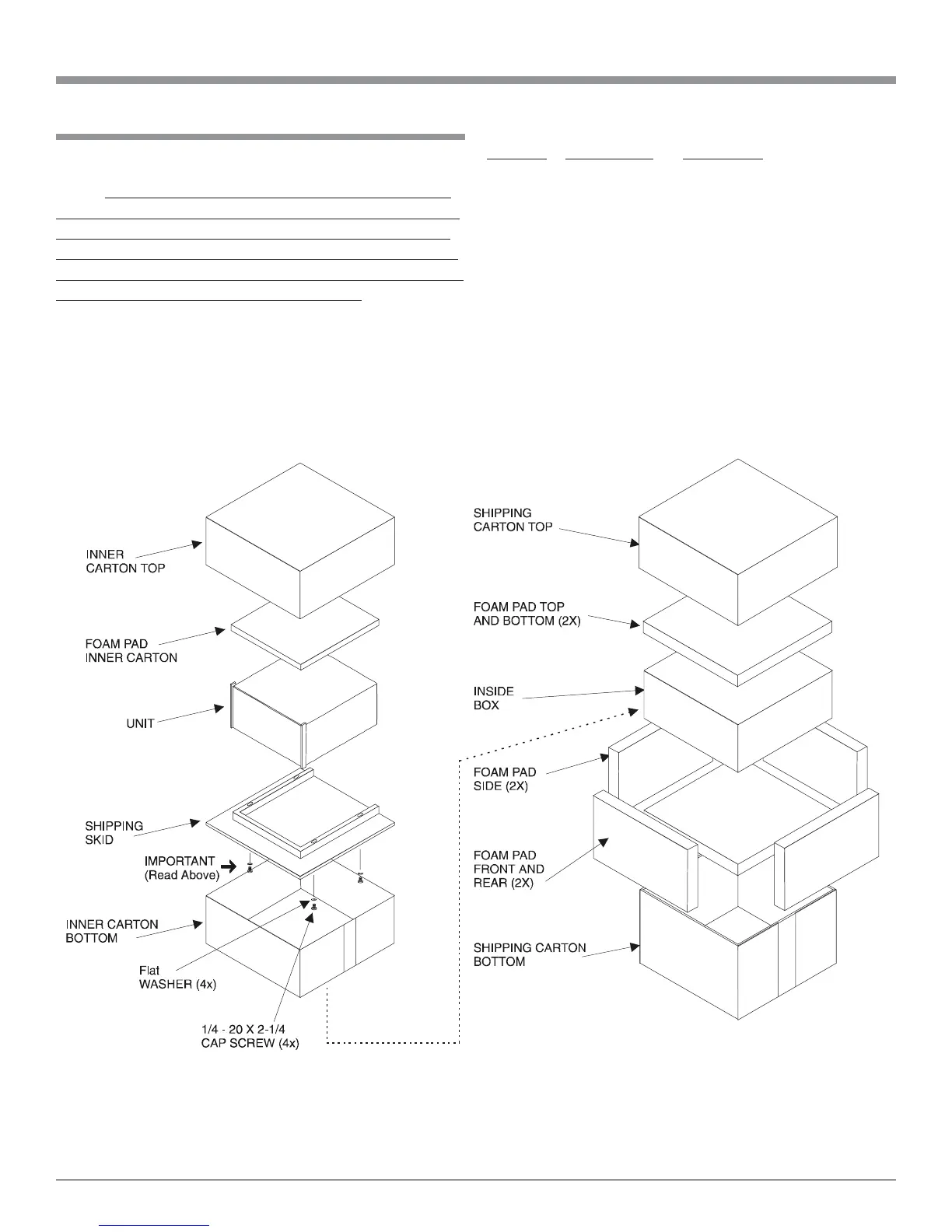

In the event it is necessary to repack the equipment for
shipment, the equipment must be packed exactly as shown
below. It is very important that the four plastic feet are at-
tached to the bottom of the equipment. Four 1/4 - 20 x 2-1/
2 inch screws and washers must be used to fasten the unit
securely to the bottom pad and shipping skid. This will en-
sure the proper equipment location on the bottom pad. Fail-
ure to do this will result in shipping damage.
Use the original shipping carton and interior parts only
if they are all in good serviceable condition. If a shipping
carton or any of the interior part(s) are needed, please call
or write Customer Service Department of McIntosh Labo-
ratory. Please see the Part List for the correct part numbers.
To Next Page
