9
UNBALANCED INPUTS
for audio cables from a
preamplifier or control
center audio outputs

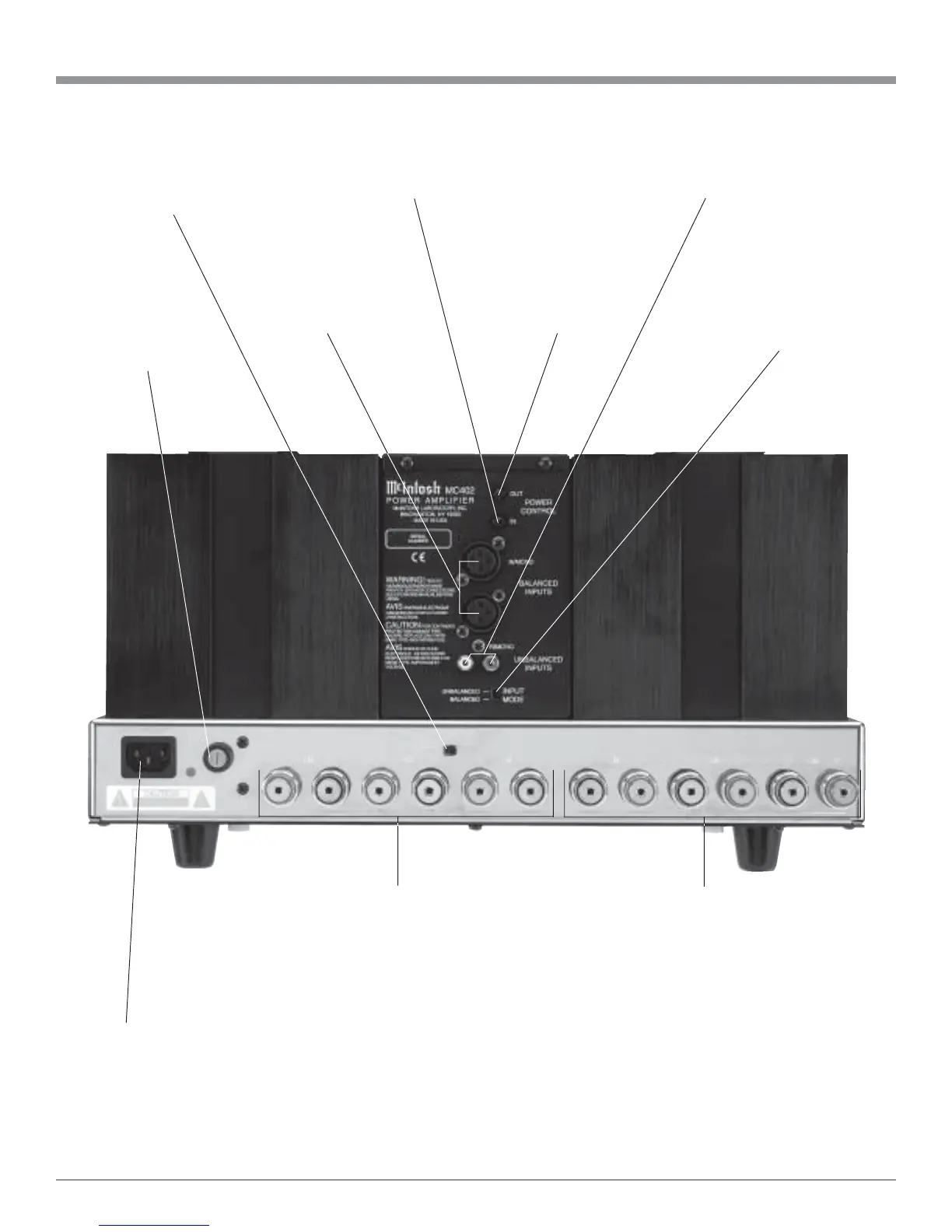

Rear Panel Connections and Switches
Connect the MC402
power cord to a live
AC outlet. Refer to
information on the
back panel to deter-
mine the correct volt-
age
BALANCED INPUTS
for audio cables from a
preamplifier or control
center audio outputs
POWER CONTROL IN
receives a turn On/Off
Trigger from a McIntosh
component
OUTPUT MODE
Switch selects STE-
REO, or MONO
PARALLEL Modes
of operation
Main Fuse holder,
refer to information
on the back panel
of the MC402 to
determine the cor-
rect fuse size and
rating
RIGHT OUTPUTs
Connections for 2,
4, and 8 ohm
Loudspeakers
INPUT MODE
Switch selects be-
tween the BAL-
ANCED or UNBAL-
ANCED INPUTS
POWER CONTROL
OUT sends a turn On/Off
Trigger to the next McIn-
tosh component
LEFT OUTPUTs
Connections for 2,
4, and 8 ohm
Loudspeakers
