McIntosh MC501 Service Manual

2827

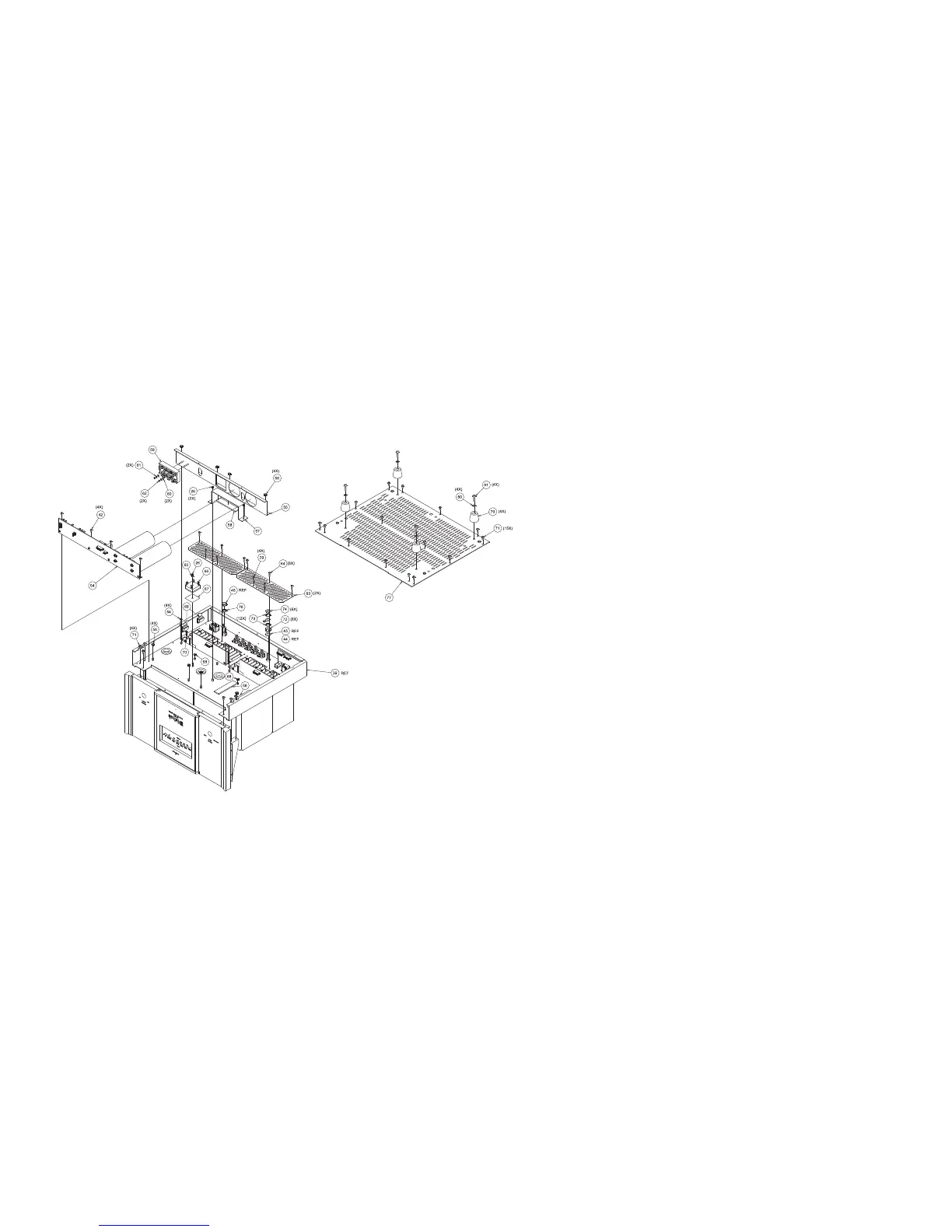

EXPLODED VIEW con’t and PARTS LIST
1 016492 CENTER GLASS PLATE
2 016491 GLASS PANEL W/HOLE
3 018717 END CAP
4 018715 TOP/BOTTOM END CAP
5 018711 CENTER EXTRUSION
7 749321 ASSY KNOB
8 104164 WASHER FELT BLK 1 X 1/4 X 1/16
9 400342 SCREW 6-32 X 3/8 FILLISTER HD
10 092418 FILTER BLUE DISPLAY
11 005309 GLASS PANEL PLATE
12 005311 GAP PLATE
13 400276 SCREW MACH SEM 6-32 X 5/16 PH PN
14 401074 SCREW TAPPING 4-40 X 1/4 PH PN
15 005788 METER CLAMP
16 017913 LOGO BACKLIGHT
17 094430 FOAM TAPE 1/8” THK
18 124093 METER
19 163026 LOGO PUSHBUTTON BACKLIGHT
20 094274 TAPE ADHESIVE
21 163037 BACKLIGHT METER 2.8 X 6.1
22 005306 SUBPANEL
23 146243 SWITCH POWER
24 021159 BUSHING SWITCH
25 104138 WASHER FIBER .150ID X .312OD
26 402045 KEP NUT 6-32 SPECIAL
27 021030 SPACER 6 X 1/4
28 749830 ASSY METER PCB
29 401054 SCREW TAPTITE 6-32 X 1/4 PH PN BLK
30 401172 SCREW TC 6-32 X 1/4 PH FL U/C
31 005291 DUST COVER
32 400200 SCREW MACH 10-32 X 1/2 TRUSS HD
33 126937 DECAL TOP COVER
34 401059 SCREW SM 6-18 X 5/8 PH PN TYPE A
35 749846 POTTED TRANSFORMER POWER
36 749847 POTTED TRANSFORMER OUTPUT
37 166131 DECAL POWER TRANSFORMER
38 166130 DECAL OUTPUT TRANSFORMER
39 005305 CHASSIS
40 749829 ASSY INPUT PCB
41 101197 SCREW HI/LO 4-24 X 3/8 PH HD BLK
42 400250 SCREW MACH SEMS 6-32 X 1/4 PH PN
43 117938 POST BINDING BLACK
44 117937 POST BINDING RED
45 178161 HOLDER FUSE
46 117487 RECEPTACLE AC LINE
47 078024 GROMMET RUBBER 1” ID
48 078025 GROMMET RUBBER 3/4” ID
49 018690 HEATSINK
50 749828 ASSY DRIVER/HEATSINK PCB
51 084206 ISOSTRATE
52 112087 SPACER PCB 1/4
53 414141 CLIP RIGHT ANGLE
54 749831 ASSY POWER SUPPLY PCB
55 005307 SUPPORT BRACKET
56 102006 NUT MACH 10-32 W/LOCK
57 005308 CAPACITOR STRAP
58 094391 TAPE FOAM 1/8 X 3/4
59 074091 TERMINAL BLOCK AC
60 404001 WASHER FLAT
61 404004 WASHER LOCK 2.5mm INT STAR
62 402022 NUT MACH 4-40 X 3/16 X 1/16
63 005240 HEATSINK VENT
64 401176 SCREW TC 6-32 X 1/2 PH PN BLK
65 404005 WASHER FLAT STEEL
66 070181 DIODE BRIDGE RECTIFIER
67 084135 PAD THERMAL
68 402005 NUT MACH 8-32 W/LOCK
69 017452 KLIP WIRE
70 402003 NUT 6-32 SELF LOCK
71 401078 SCREW TAP 8-32 X 5/16 PH PN BLK
72 102052 NUT GOLD SUPPLIED W/117758
73 104162 WASHER LOCK INTERNAL TOOTH
74 102051 NUT HEX M9 X .75 GOLD PLATED
75 005235 HEATSINK COVER
76 404016 WASHER INT STAR .5 X .630 X .022
77 005635 BOTTOM COVER
79 017218 FOOT PLASTIC BLACK
80 404033 WASHER FLAT #10 CLEAR
81 400159 SCREW MACH 10-32 X 3/4 PH PN BLK
