Packing Instructions
Packing Instructions
Quantity Part Number Description
1 034158 Shipping carton only
2 034250 Foam end cap
1 034198 Inner carton top
1 034199 Inner carton bottom
1 034188 Foam pad
1 034037 Inner carton pad
1 033699 Shipping skid
7 017218 Plastic foot
4 100159 #10-32 x 3/4” Machine screw
2 104083 #10 x 7/16” Flat washer
3 101204 #10 x 2-1/2” Wood screw
3 104033 #10 x 1-3/4” Flat washer

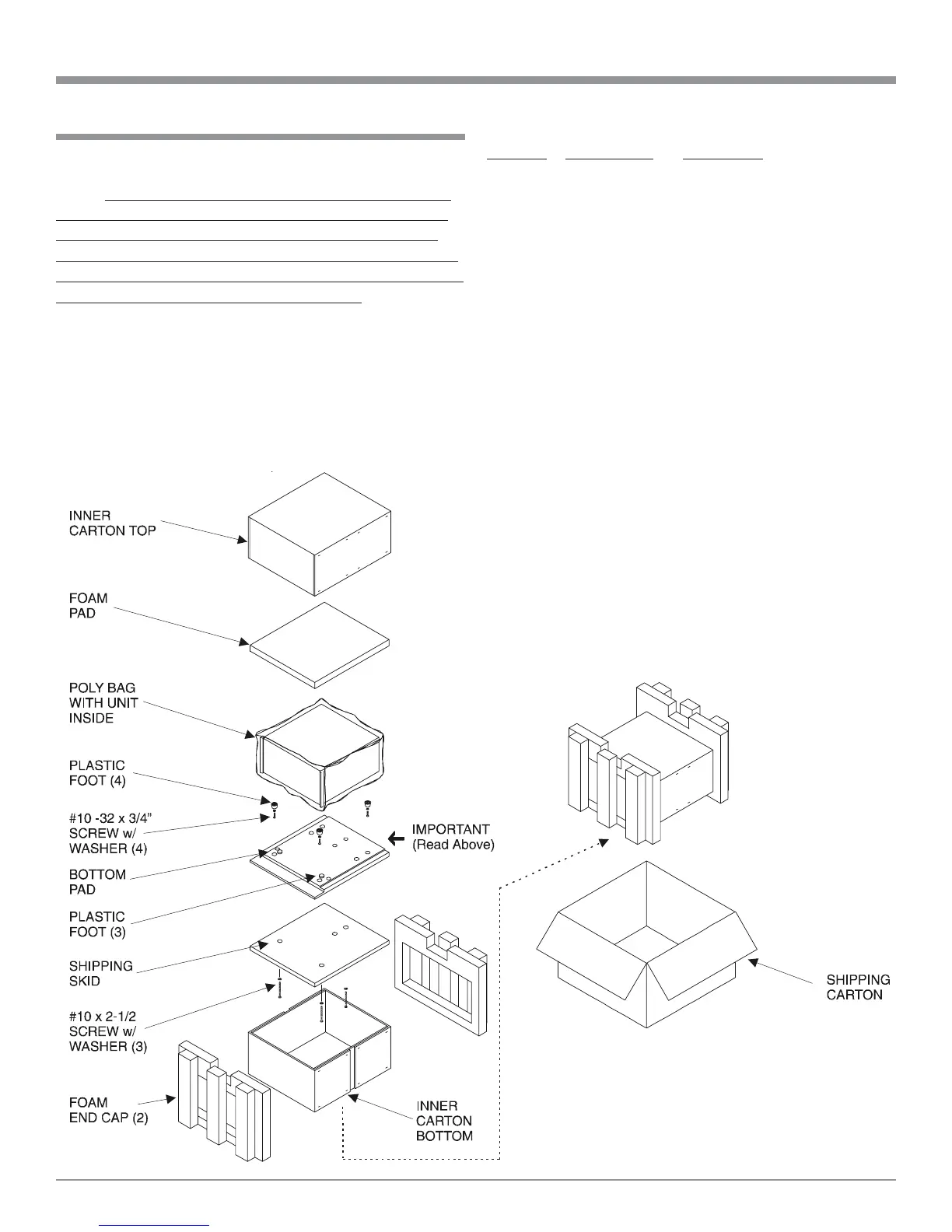

In the event it is necessary to repack the equipment for
shipment, the equipment must be packed exactly as shown
below. It is very important that the four plastic feet are at-
tached to the bottom of the equipment. Three #10 x 2-1/2
inch screws and washers must be used to fasten the unit
securely to the bottom pad and shipping skid. This will en-
sure the proper equipment location on the bottom pad. Fail-
ure to do this will result in shipping damage.
Use the original shipping carton and interior parts only
if they are all in good serviceable condition. If a shipping
carton or any of the interior part(s) are needed, please call
or write Customer Service Department of McIntosh Labo-
ratory. Please see the Part List for the correct part numbers.
To Next Page
