McIntosh MC601 Connection Diagram

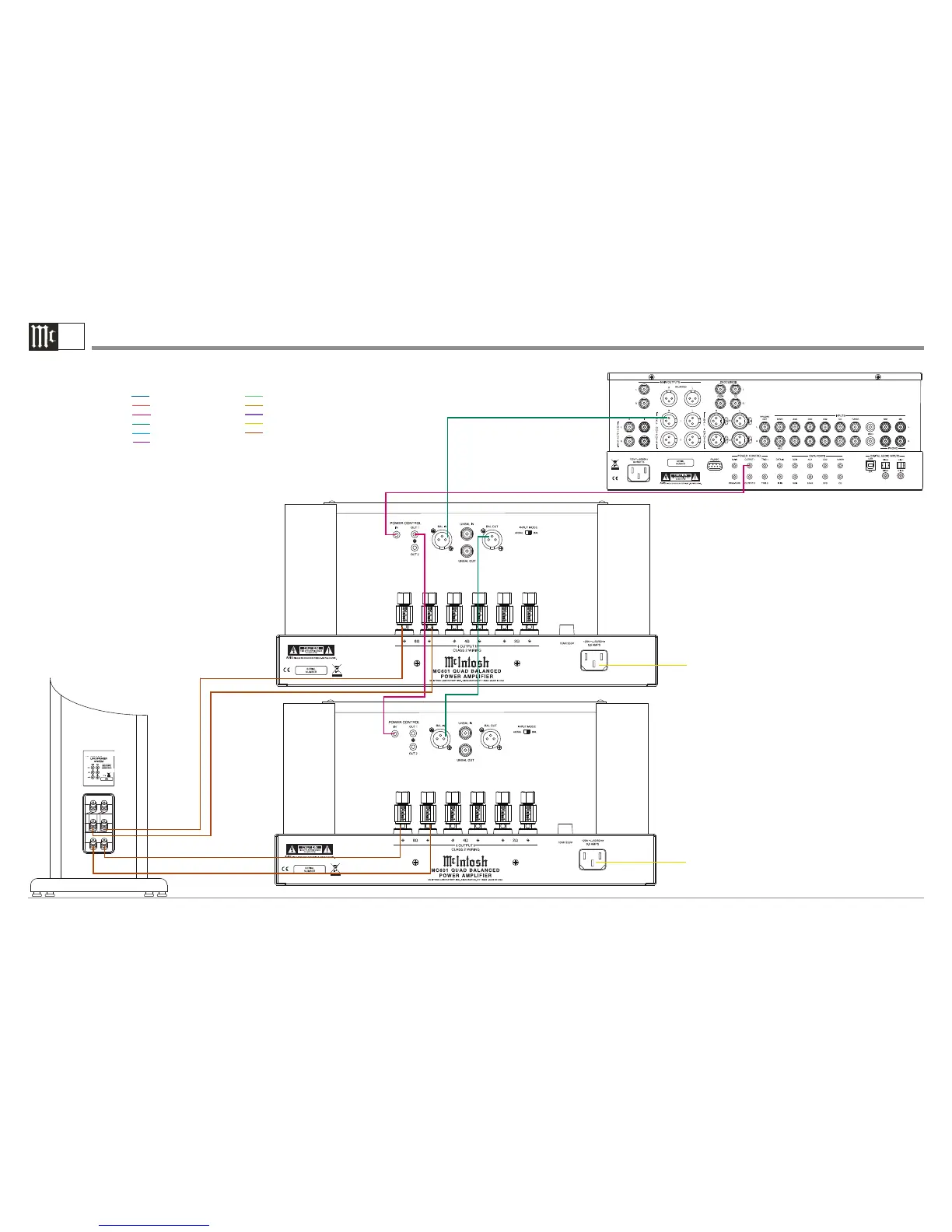

MC601 Bi-Amp Connection Diagram
1B
McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 www.mcintoshlabs.com
Power Amplifier
One
Connect to
AC Outlet
Audio Preamplifier
Loudspeaker System
Note: Refer to the MC601 Owner’s Manual page 10 for additional connection information.
Connection Legend:
Data Cable*- Digital Signal Cable -
Sensor/Keypad Cable - Network/RS232 Cable -
Power Control Cable* - Ground Wire -
Audio Signal Cable - AC Power Cords -
Video Signal Cable - Loudspeaker Cable -
RF Signal Cable -
* 2 conductor shielded with 1/8 inch stereo mini phone plug on each end.
Connect to
AC Outlet
Power Amplifier
Two
-
+
-
+

McIntosh MC601 Specifications

General

Damping factor	40
Amplifier class	-
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Audio output channels	1.0 channels
Peak power per channel	600 W
Signal-to-Noise Ratio (SNR)	124 dB
Total Harmonic Distortion (THD)	0.005 %
XLR in	Yes
XLR out	1
Speakers connectivity type	Binding post
Purpose	Performance/stage
Product color	Aluminium, Black
Volume control	Rotary
Connectivity technology	Wired

Weight and Dimensions

Depth	558.8 mm
Width	444.5 mm
Height	239.7 mm
Weight	42180 g
