McIntosh MCC602TM User Manual

7

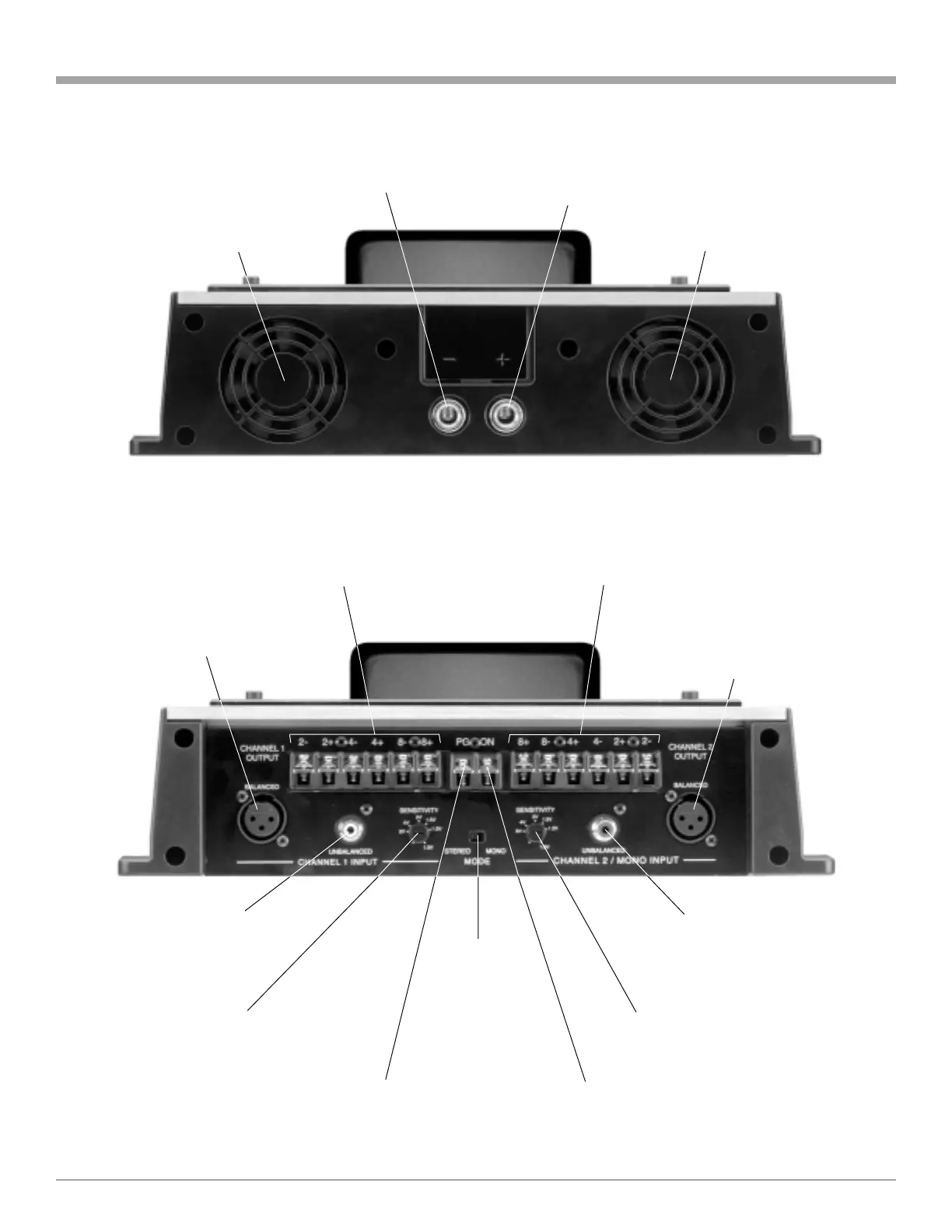

Installation, Side Panel Cooling, Connections, Controls and Switch
Connect to the positve (+)
vehicle battery terminal
with an inline fuse
Cooling Fan
Air Intake
Controls the Power Guard
Circuit when connected to
certain McIntosh Control
Centers
Cooling Fan
Air Intake
Receives the Amplifier
Turn-ON signal from a
McIntosh Control
Center
Connect to the Negative (-)
vehicle battery terminal
CHANNEL 1 OUTPUT
Connections for 2, 4 or 8
ohm loudspeakers
CHANNEL 2 OUTPUT
Connections for 2, 4 or 8
ohm loudspeakers
BALANCED INPUT
for audio cables from
control center audio
outputs
CHANNEL 1 UNBALANCED
INPUT for audio cables from
control center audio output
BALANCED INPUT
for audio cables from
control center audio
outputs
CHANNEL 2/MONO UNBALANCED
INPUT for audio cables from control
center audio output
MODE Switch
selects Stereo or
Mono Parallel
Mode
CHANNEL 1 SENSITIVITY
Input Sensitivity Control
CHANNEL 2/MONO SENSITIVITY
Input Sensitivity Control
Left Side View
Right Side View
