IMM AGS-2
73
Control Panel
The control panel is located on the front of the unit, to the left of the power panel.
Distributed control architecture enhances unit reliability. Each compressor circuit has its own
microprocessor controller so that if one circuit controller is inoperative, the other circuit
controller will still be able to run its compressor and circuit components.

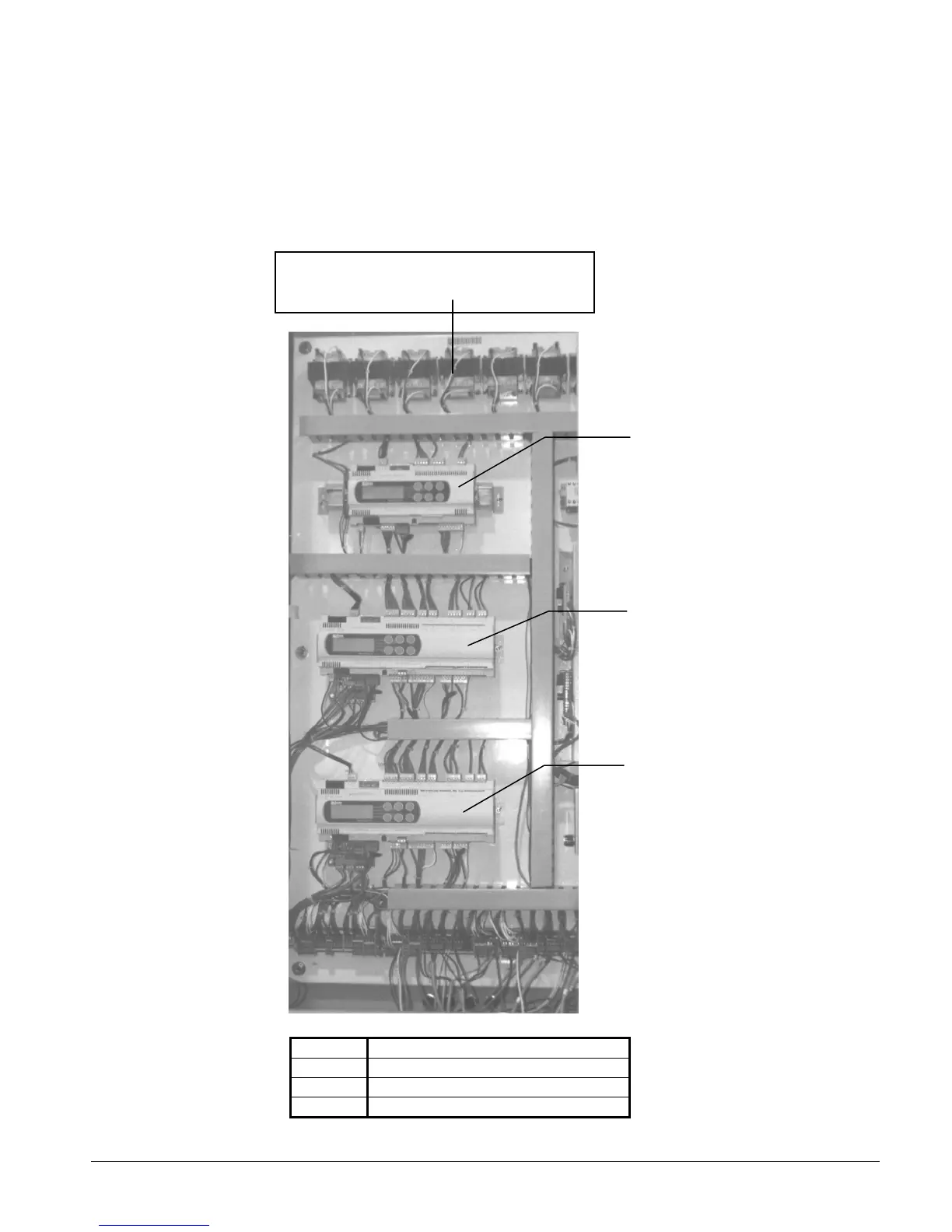

Figure 42, Control Panel Components
T2 24V Unit Controller Transformer
T13, T23 24V Circuit Controller Transformers
T14, T24 24V Compressor Load/Unload Trns.
T15, T25 24V EXV Driver Transformer
Transformers
T2 T13 T14 T15 T23 T24 T25
Unit Controller
Cir#1 Controller
Cir#2 Controller
