1 Oil Filter - 250mm
2 Oil Filter Housing Cover
3 O-Ring – 89.5x3
4 O-Ring – 76.1x3.4
5 M8 Bolts
• Unscrew and remove two hex head side cover bolts 180° apart. Insert M8 guide studs into the
vacant holes.
• Remove remaining bolts, remove oil filter housing cover.
• Pull the oil filter off of the spigot and withdraw the oil filter from the housing and clean.
• Clean oil filter housing cover plate.
Fitting a New Oil Filter Element – Reassembly
Before assembly commences, remove any paint from joint faces. Inspect parts individually for
damage, ensure they are completely clean before laying them out on a sheet of clean paper in
a logical order ready for reassembly.
Use fresh refrigerant oil to lubricate parts during reassembly. New O-rings must be used.
• Insert new oil filter into the housing, ensuring the filter sits tightly on the sealing spigot.
• Replace the oil filter housing cover

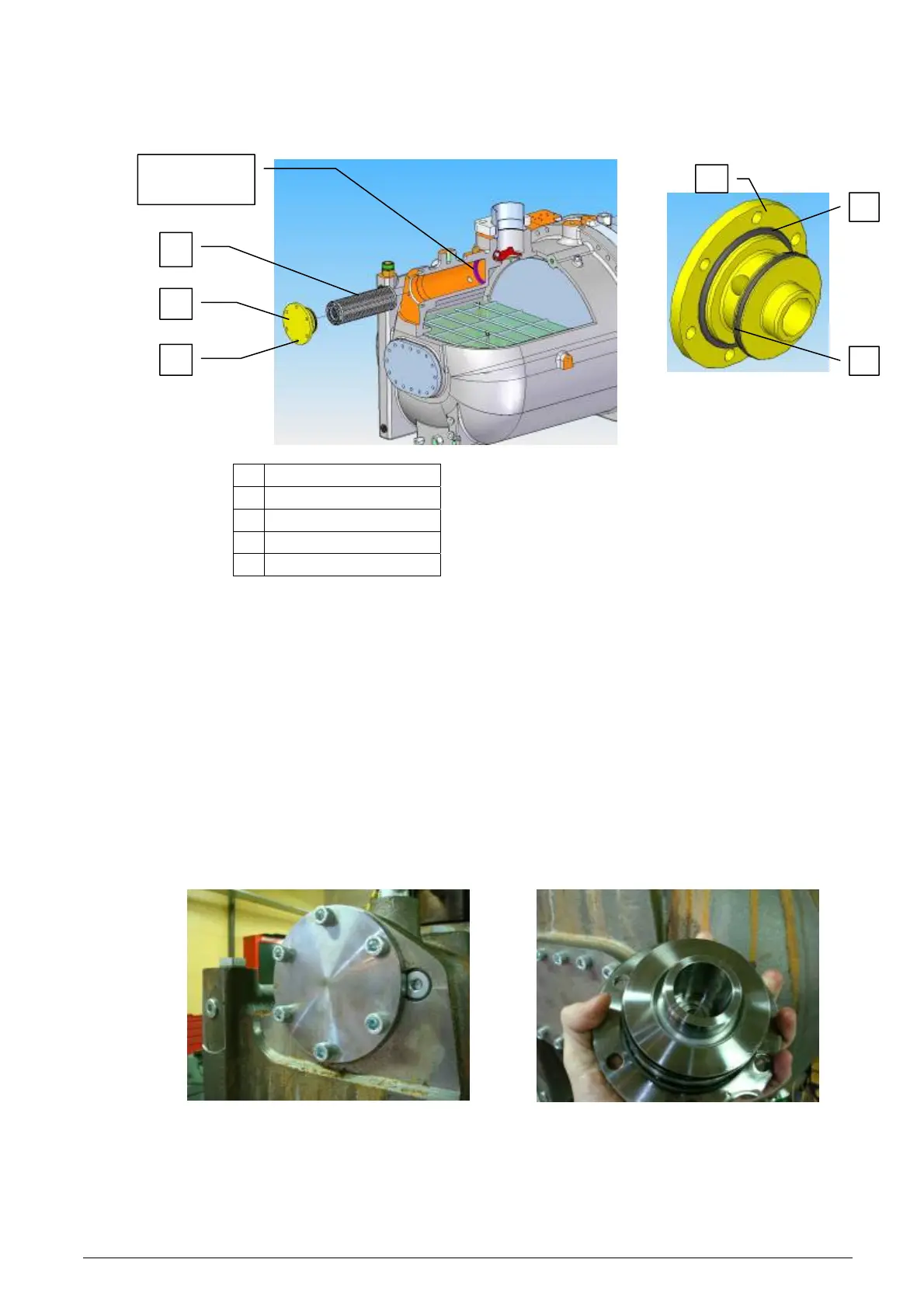

Filter housing cover plate – 6xM8 Bolts Removal of the filter housing cover
1
Sealing
S
i
o
2
4
3
5
