UNIT DIMENSIONS (INCHES)
SIZE A B C D E
007 – 009 17.5 34 22
34
20
012 17.5 40 22
40
20
019 – 024 17.5 40 22 40 20
030 – 036 18.5 46 23 46 21
042 – 060 25.5 52 30 52 28
IM 742 / Page 3
Unit Location
1. Locate the unit in an area that allows for easy removal
of the filter and access panels. Leave a minimum of 18”
of clearance around the heat pump for easy removal,
and to perform routine maintenance, or troubleshooting.
Provide sufficient room to make water, electrical and duct
connections.
2. The contractor should make sure that adequate ceil
-
ing panel access exists, including clearance for hanger
brackets, duct collars and fittings at water and electrical
connections.
3. Allow adequate room below the unit for a condensate
trap and do not locate the unit above pipes.
4. Each unit is suspended from the ceiling by four threaded
rods. The rods are attached to the unit corners by a hanger
bracket through a rubber isolator.
Caution: Do not use
rods smaller than shown in Figure 1B. The rods must
be securely anchored to the ceiling or to the bar
joists.
5. Each unit is furnished with a hanger kit. The kit is shipped
unassembled and includes hanger brackets, rubber
isolators, washers, bolts and lock washers. Lay out the
threaded rods per the dimension in Figures 1A and 1B.
6. When attaching the hanger rods to the unit, a double nut
is recommended since vibration could loosen a single
nut. The installer is responsible for providing the hex nuts
when installing hanger rods.
7. Leave minimum 3" (76 mm) extra threaded rod below the
double nuts or minimum 3" (76 mm) clearance between
top of unit and ceiling above to facilitate top panel remov-
al for servicing.

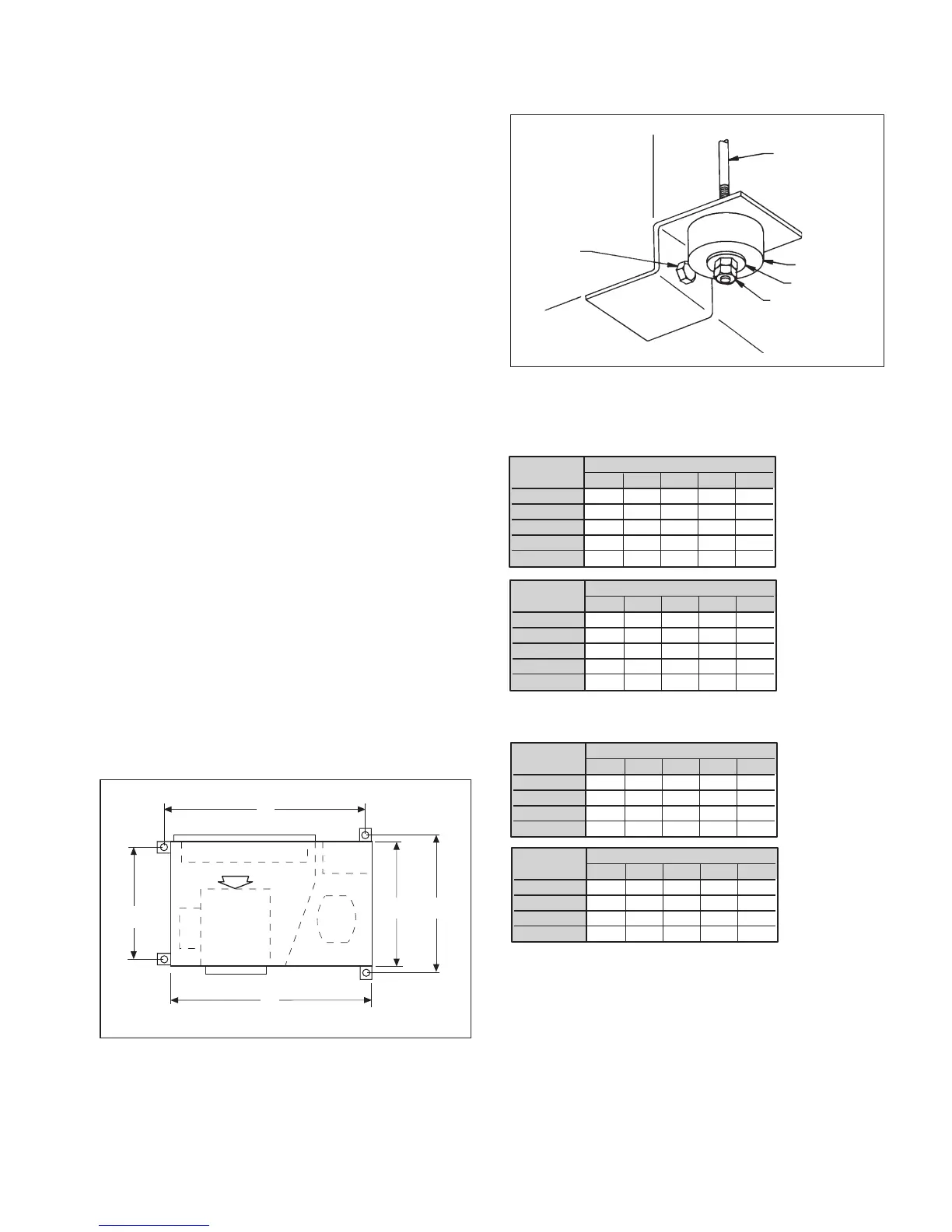

Figure 1B. Unit sizes 007 thru 070
3/8" Threaded Rod
(By Others)
Vibration Isolator
Washer
Hex Nuts
(By Others)
Bolt & Lock
Washer
Filter Access
Each unit is shipped with a filter bracket for side filter remov-
al. For bottom removal push the filter up into top bracket to
gain clearance of bottom bracket and remove the filter. Also,
a sheet metal duct filter retainer can be fabricated when
return air duct work is used.
Figure 1A. Hanger bracket detail, sizes 007 thru 070
B
Coil
Airflow
E
C
D
Comp
Control
Box
Fan
Assembly
A
Models CCH & CCW
Hanger Bracket Dimensions
Models CRH & CRW
UNIT DIMENSIONS (mm)
SIZE A B C D E
007 – 009 445 864 559 864 508
012 445 1016 559 1016 508
019 – 024 445 1016 559 1016 508
030 – 036 470 1168 584 1168 533
042 – 060 648 1321 762 1321 711
UNIT DIMENSIONS (INCHES)
SIZE A B C D E
007 – 012 17.5 34 22
34
20
015 – 024 17.5 42 22 42 20
030 – 042 18.5 46 23 46 21
048 – 070 25.5 52 30 52 28
UNIT DIMENSIONS (mm)
SIZE A B C D E
007 – 012 445 864 559 864 508
015 – 024 445 1067 559 1067 508
030 – 042 470 1168 584 1168 533
048 – 070 648 1321 762 1321 711
