McQuay IM 980-1 21
Physical Data
Unit Dimensions

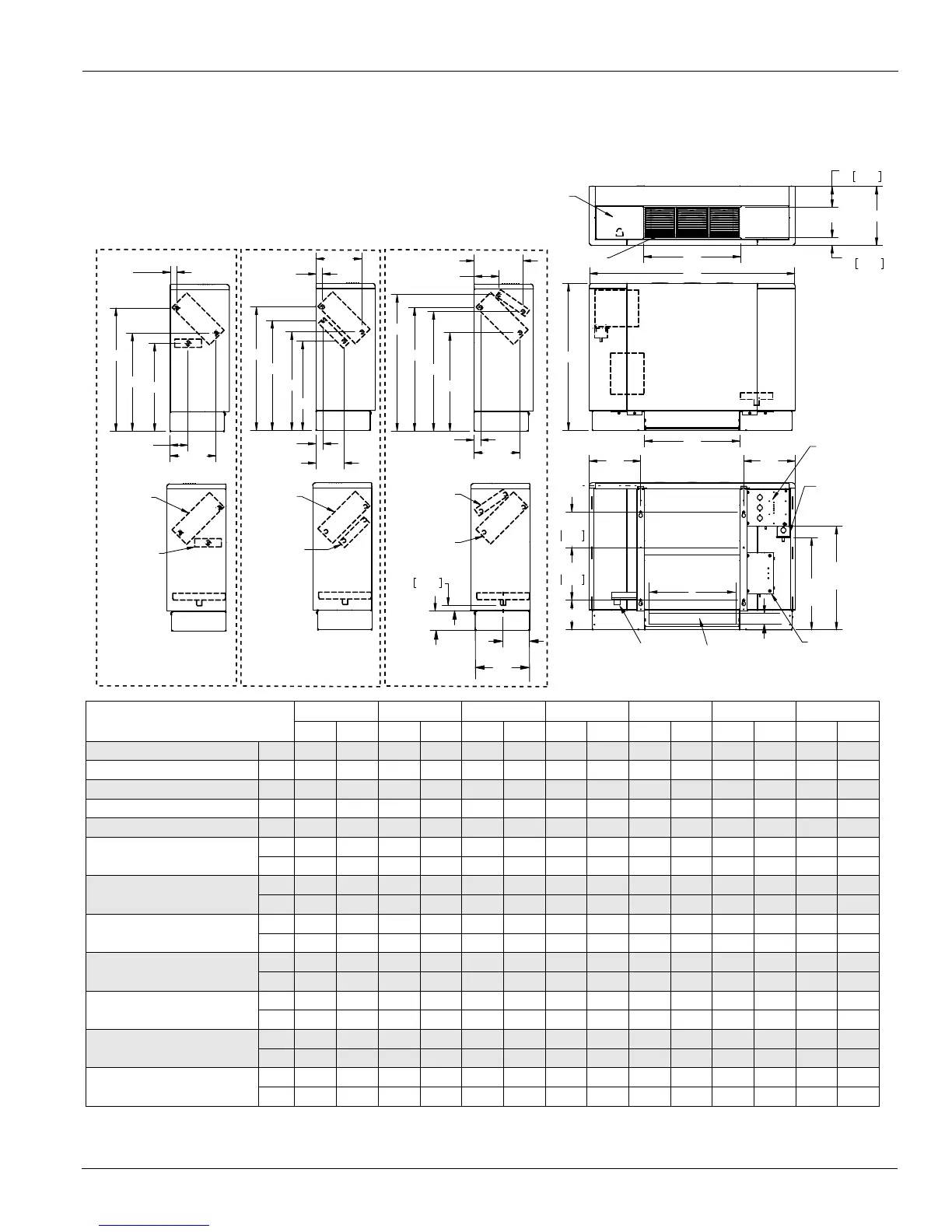

Figure 30: Dimensions: Flat Top Fan Coils
Dimension
S02 S03 S04 S06 S08 S10 S12
inch mm inch mm inch mm inch mm inch mm inch mm inch mm
Unit Width A 35.0 889 40.5 1029 46.0 1168 57.0 1448 62.5 1588 73.5 1867 84.5 2146
Unit Height B 25.0 635 25.0 635 25.0 635 25.0 635 25.0 635 25.0 635 25.0 635
Unit Depth C 10.0 254 10.0 254 10.0 254 10.0 254 10.0 254 10.0 254 10.0 254
Discharge Grille - Width E 16.3 414 21.8 554 27.3 693 38.3 973 43.8 1113 54.8 1392 65.8 1671
Return Air Opening - Width F 16.2 411 21.7 551 27.2 691 38.2 970 43.7 1110 54.7 1389 65.7 1669
Electric Heat Connection
AA 15.1 384 15.1 384 15.1 384 15.1 384 15.1 384 15.1 384 15.1 384
CC 3.0 76 3.0 76 3.0 76 3.0 76 3.0 76 3.0 76 3.0 76
Primary Coil - Water Return
DD 21 533 21 533 21 533 21 533 21 533 21 533 21 533
EE 1.1 28 1.1 28 1.1 28 1.1 28 1.1 28 1.1 28 1.1 28
Primary Coil - Water Supply
BB 16.7 424 16.7 424 16.7 424 16.7 424 16.7 424 16.7 424 16.7 424
GG 7.8 198 7.8 198 7.8 198 7.8 198 7.8 198 7.8 198 7.8 198
Preheat Coil - Water Return
CC 18.7 475 18.7 475 18.7 475 18.7 475 18.7 475 18.7 475 18.7 475
HH 1.2 30 1.2 30 1.2 30 1.2 30 1.2 30 1.2 30 1.2 30
Preheat Coil - Water Supply
AA 15 381 15 381 15 381 15 381 15 381 15 381 15 381
FF 4.7 119 4.7 119 4.7 119 4.7 119 4.7 119 4.7 119 4.7 119
Reheat Coil - Water Return
CC 23.2 589 23.2 589 23.2 589 23.2 589 23.2 589 23.2 589 23.2 589
HH 4.2 107 4.2 107 4.2 107 4.2 107 4.2 107 4.2 107 4.2 107
Reheat Coil - Water Supply
AA 20.3 516 20.3 516 20.3 516 20.3 516 20.3 516 20.3 516 20.3 516
FF 8.3 211 8.3 211 8.3 211 8.3 211 8.3 211 8.3 211 8.3 211
PREHEAT OPTION NOITPO TAEHERNOITPO TAEH CIRTCELE
PRIMARY
PREHEAT
EE
DD
GG
AA
CC
BB
HH
FF
A
B
F
FRONT VIEW
K
8.9
227
6.1
154
8.8
[224]
8.8
[224]
BACK VIEW
ELECTRICAL
CONTROL BOX
OPTIONAL
DISCONNECT
SWITCH
DRAIN PAN 7/8" OD
CONNECTION
ELECTRIC HEAT
PANEL BOX
1.3
33.8
C
3.6
90.3
E
TOP VIEW
DISCHARGE
GRILL
ELECTRICAL CONTROL
ACCESS DOOR
ELECTRIC
HEAT
PRIMARY
EE
AA
BB
DD
CC
GG
1.0
24.7
PRIMARY
REHEAT
DD
GG
BB
EE
HH
FF
CC
AA
4.6
[117]
9.3
[236]
3.4 [86]
15.7
[399]
17.6
[447]
J
FRESH AIR DAMPER
OPENING
2.4
[
61
]
