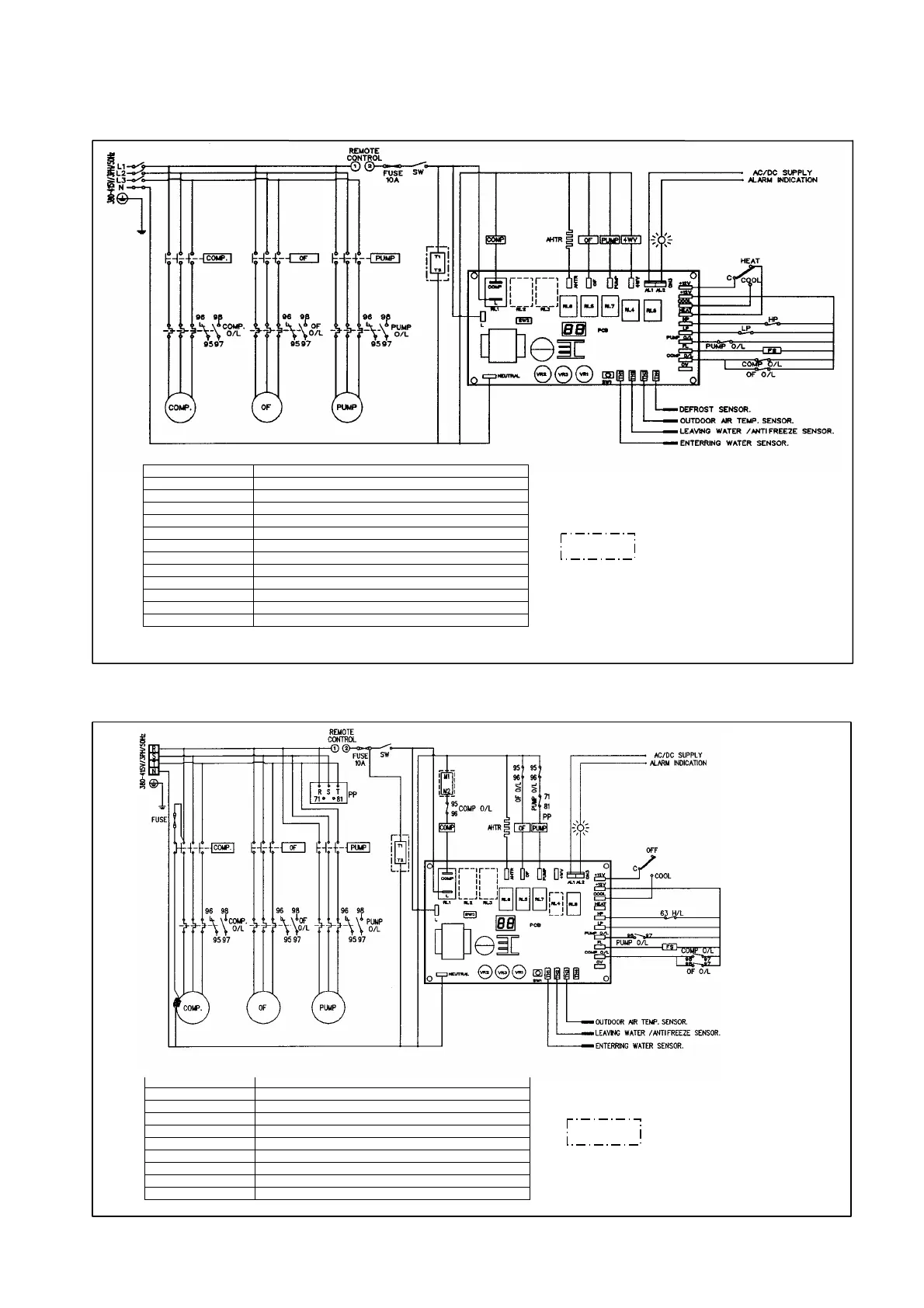

Model : MAC075 / 100 / 125BR (Heat Pump)
NOTE :
FOR MAC00B/BR & 125B/BR
ONLY
SYMBOL DESCRIPTION
COMP. COMPRESSOR
OF OUTDOOR FAN
4WV 4 WAY VALVE
PCB PRINTED CIRCUIT BOARD
COMP O/L COMPRESSOR OVERLOAD PROTECTOR
OF O/L OUTDOOR FAN OVERLOAD PROTECTOR
PUMP O/L PUMP OVERLOAD PROTECTOR
HP HIGH PRESSURE SWITCH PROTECTION
LP LOW PRESSURE SWITCH PROTECTION
FS FLOW SWITCH
SW SWITCH
AHTR ANTIFREEZE HEATER WIRE
Model : MAC075 / 100 / 125B (Cooling Only)
* From July 2001 Production onwards
NOTE :
FOR MAC00B & 125B ONLY
SYMBOL DESCRIPTION
COMP. COMPRESSOR
OF OUTDOOR FAN
PCB PRINTED CIRCUIT BOARD
COMP O/L COMPRESSOR OVERLOAD PROTECTOR
OF O/L OUTDOOR FAN OVERLOAD PROTECTOR
PUMP O/L PUMP OVERLOAD PROTECTOR
HP HIGH PRESSURE SWITCH PROTECTION
LP LOW PRESSURE SWITCH PROTECTION
FS FLOW SWITCH
SW SWITCH
AHTR ANTIFREEZE HEATER WIRE
37
