Schematic Diagram

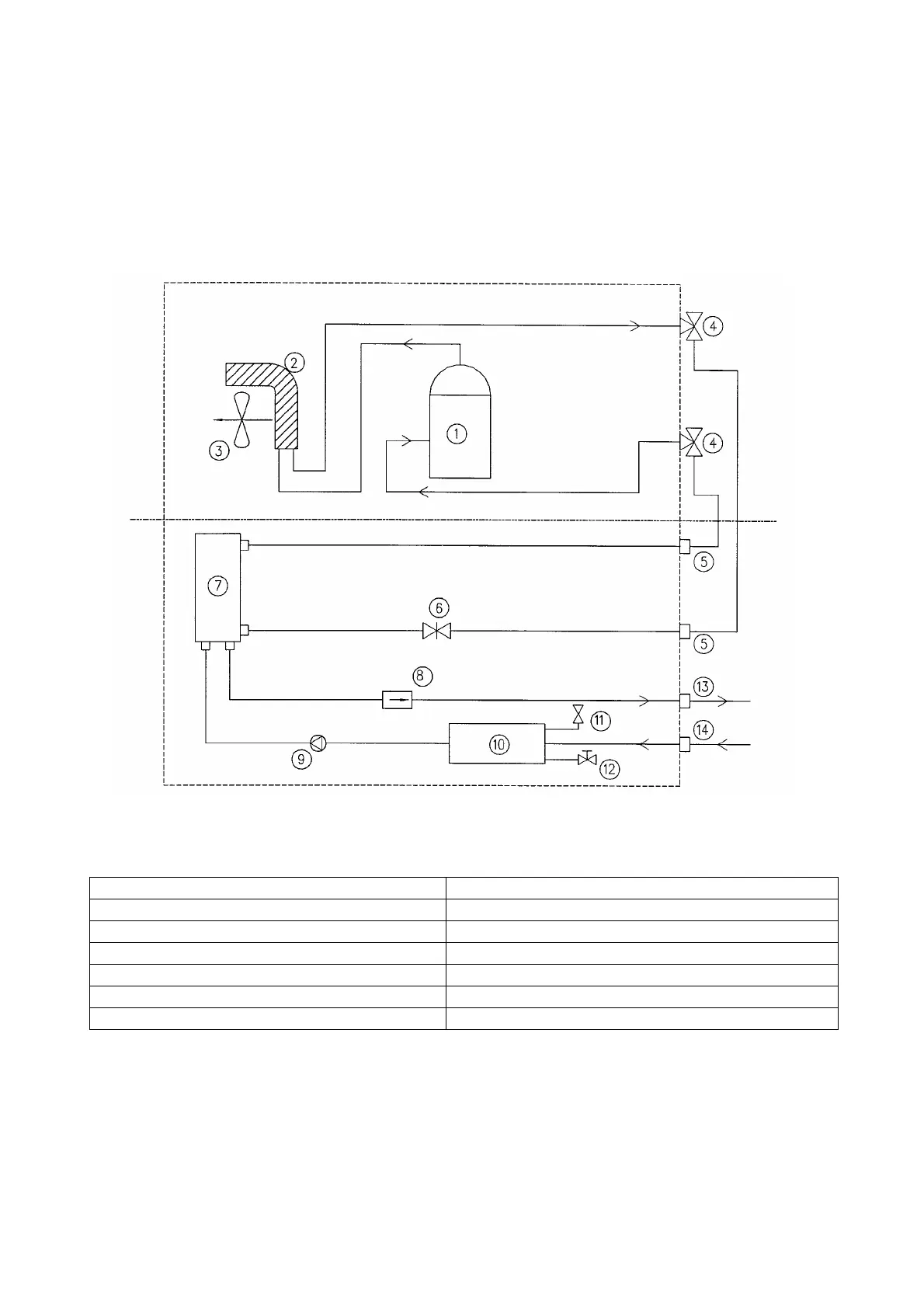

Refrigerant and Hydraulic Circuit Diagram
Cooling Version
Model : MAC040 ~ 058A
M4AC040 ~ 058AE
1. COMPRESSOR 8. FLOW SWITH
2. HEAT EXCHANGER (CONDENSER) 9. WATER PUMP
3. MOTOR FAN 10. WATER STORAGE TANK
4. THREE WAY VALVES WITH FLARE JOINT 11. AUTO AIR VENT
5. FLARE JOINT 12. DRAIN VALVE
6. THERMOSTATIC EXPANSION VALVE 13. WATER OUTLET
7. BRAZED PLATE HEAT EXCHANGER 14. WATER INLET
49
To Next Page
