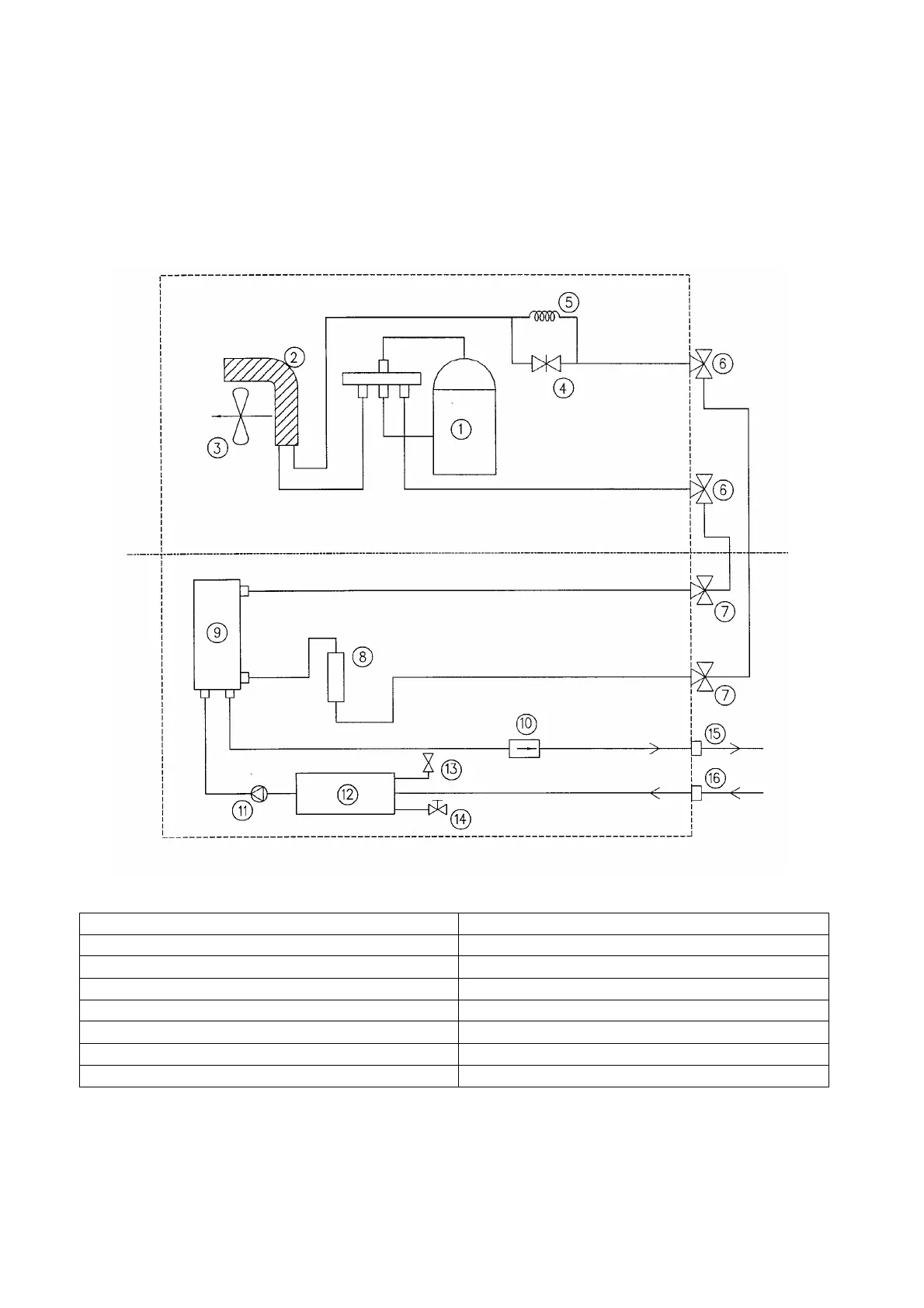

Refrigerant and Hydraulic Circuit Diagram
Heat Pump Version
Model : MAC040 ~ 058AR
M4AC040 ~ 058ARE
1. COMPRESSOR
9. BRAZED PLATE HEAT EXCHANGER
2. HEAT EXCHANGER (CONDENSER) 10. FLOW SWITCH
3. MOTOR FAN 11. WATER PUMP
4. THERMOSTATIC EXPANSION VALVE 12. WATER STORAGE TANK
5. CAPILLIARY TUBE 13. AUTO-AIR VENT
6. THREE WAY VALVE WITH FLARE JOINT 14. DRAIN VALVE
7. FLARE JOINT 15. WATER OUTLET
8. CHARGE COMPENSATOR 16. WATER INLET
50
