Installation Clearance

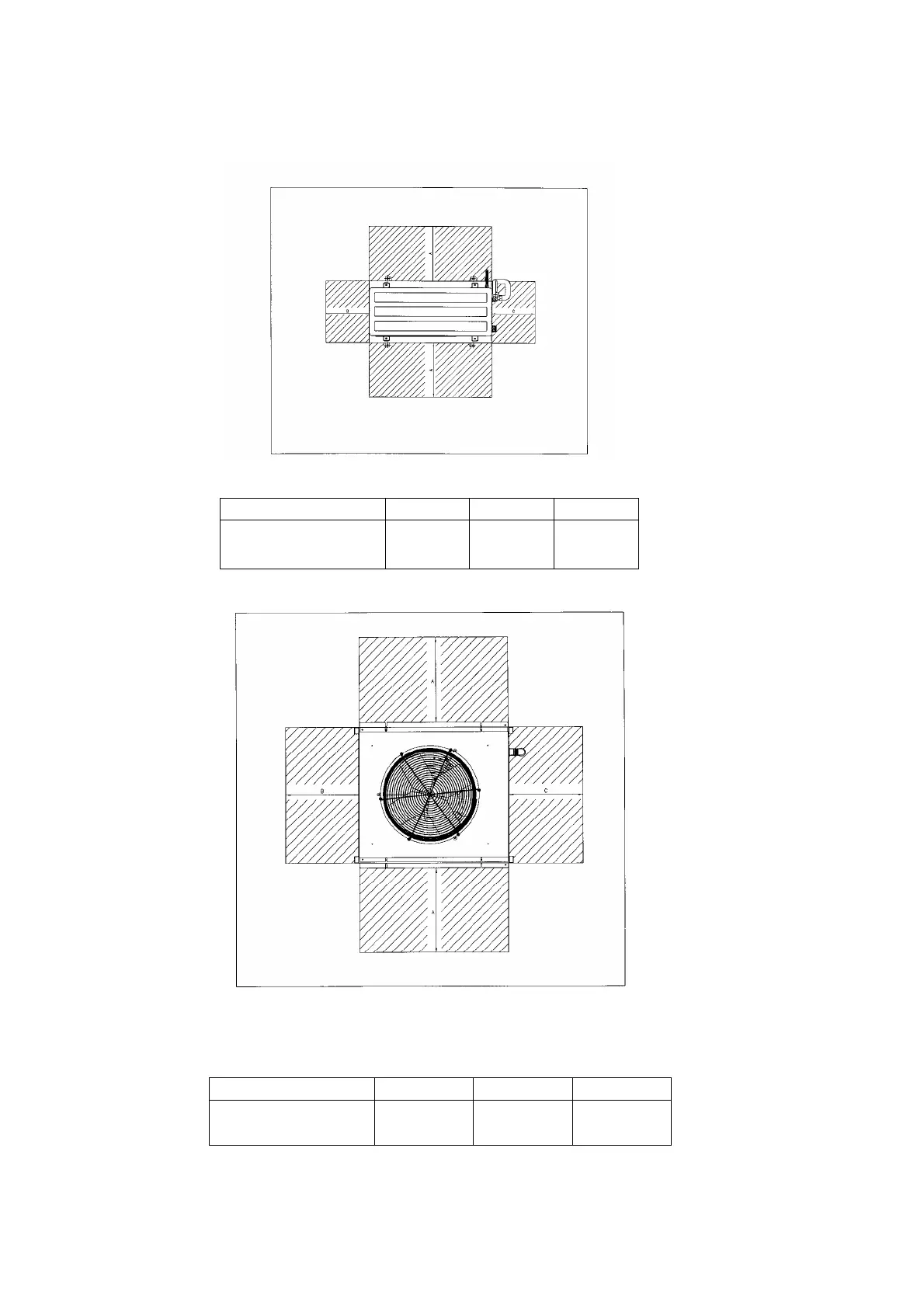

It is advised to have sufficient clearance around the unit for proper condenser air flow and to facilitate access
for maintenance. (see clearance shown in figure below )
Model A B C
MAC040 – 058A
MAC040 – 058AR
950mm 900mm 900mm
Remarks: Minimum vertical clearance required above the unit is side clearance (A=950mm) should be
doubled if two units are installed side by side, or when there are obstructions such as walls.
Model A B C
MAC075 – 125B
MAC075 – 125BR
950mm 900mm 900mm
