©2009McQuay
7

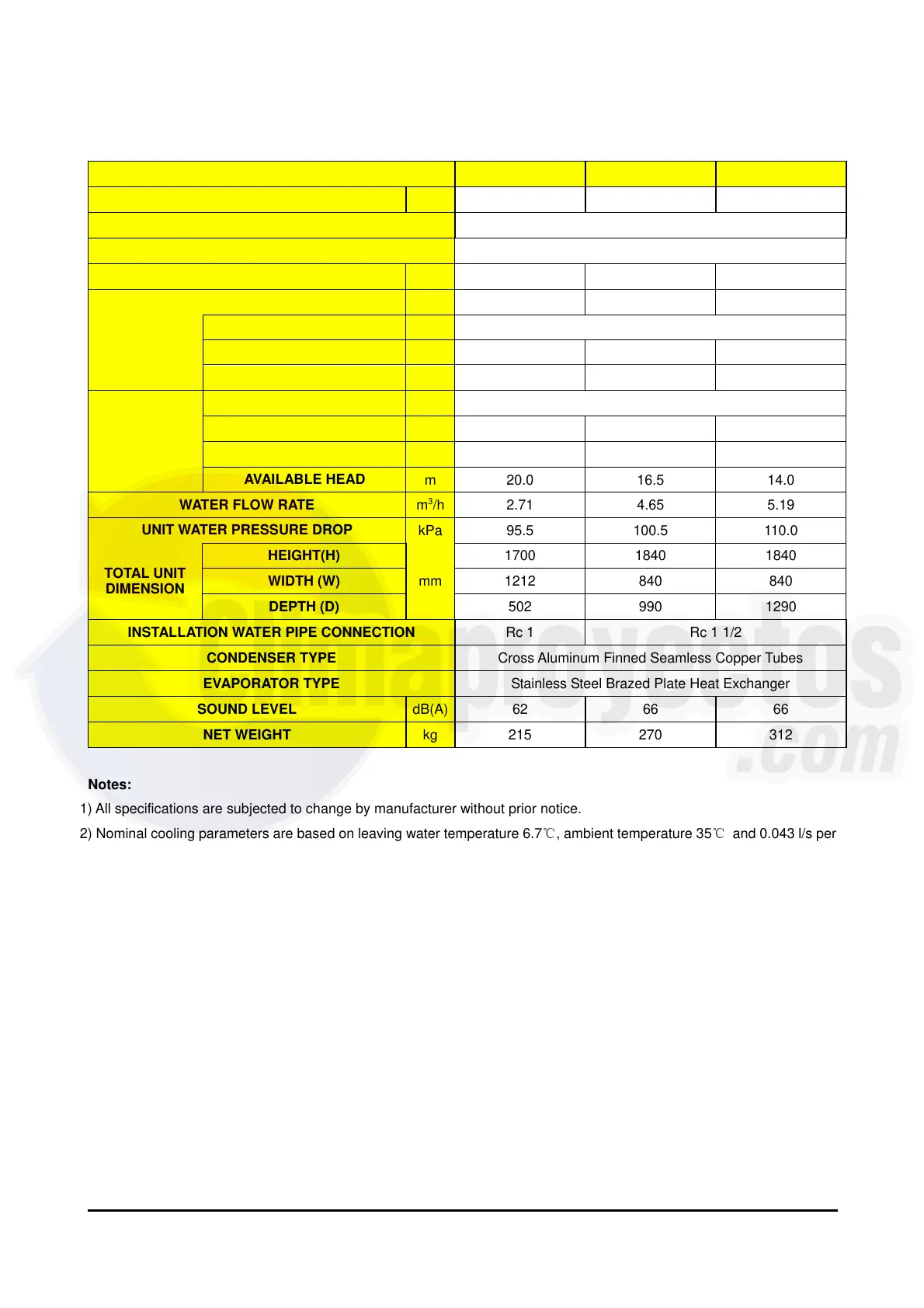

Parameter
MODEL MAC060D4 MAC090D4 MAC120D4
NOMINAL COOLING CAPACITY
W 17500 30000 33500
POWER SUPPLY
208-230V/3～/60Hz
REFRIGERANT TYPE
R407C
RATED COOLING POWER INPUT
W 6000 10100 10600
RATED COOLING CURRENT
A 18.8 34.7 35.7
TYPE/DRIVE
Propeller/Direct
RATED POWER INPUT
W 360 1000 1000
FAN MOTOR
RATED CURRENT
A 1.6 3.7 3.7
TYPE
Horizontal Multistage End-Suction
RATED POWER INPUT
W 1410 1410 1410
RATED CURRENT
A 3.4 3.4 3.4
PUMP
AVAILABLE HEAD
m 20.0 16.5 14.0
WATER FLOW RATE
m
3
/h 2.71 4.65 5.19
UNIT WATER PRESSURE DROP
kPa 95.5 100.5 110.0
HEIGHT(H)
1700 1840 1840
WIDTH (W)
1212 840 840
TOTAL UNIT
DIMENSION
DEPTH (D)
mm
502 990 1290
INSTALLATION WATER PIPE CONNECTION
Rc 1 Rc 1 1/2
CONDENSER TYPE
Cross Aluminum Finned Seamless Copper Tubes
EVAPORATOR TYPE
Stainless Steel Brazed Plate Heat Exchanger
SOUND LEVEL
dB(A) 62 66 66
NET WEIGHT
kg 215 270 312
Notes:
1) All specifications are subjected to change by manufacturer without prior notice.
2) Nominal cooling parameters are based on leaving water temperature 6.7℃, ambient temperature 35℃ and 0.043 l/s per
kW water flow factor.
3) Rated cooling power input doesn’t include the pump consumption.
4) Actual performance can be determined by conducting correction after looking up the following charts.
Based on the ambient temperature and required return water temperature, we can locate the corresponding performance
factor in these charts, then the corresponding actual cooling (heating) capacity and power input can be determined by
using the performance chart.
