McQuay PDAC User Manual

IM 882 / Page 24 of 36
Clock Set Menu
1.1 To set the time and day of the week, press FAN
MODE and FAN SPEED buttons simultaneously
for 5 seconds. Time will be displayed rst:
1.2 Adjust the time by pressing and buttons.
By holding pressed or buttons, time will
change in 15 minutes increments or decrements,
respectively. AM and PM will show in rotation.
1.3 By pressing FAN MODE button, move to the
conrmation day of the week. Numbers represent
days of the week, Monday being 1 and so forth.
TODAY will ash on display. Adjust the number
that represents the day of the week by pressing
and buttons:
1.4 Exit the clock set menu by pressing FAN MODE
(TIME) and FAN SPEED (DAY) simultaneously
for 5 seconds
Conguration
The conguration mode is meant for temperature scale
setting, limits for minimum and maximum operating
temperatures and displaying sensor readings. To enter
the conguration mode hold pressed and buttons
for 5 seconds. Moving from one screen to another and
rolling over is done by pressing Mode button.

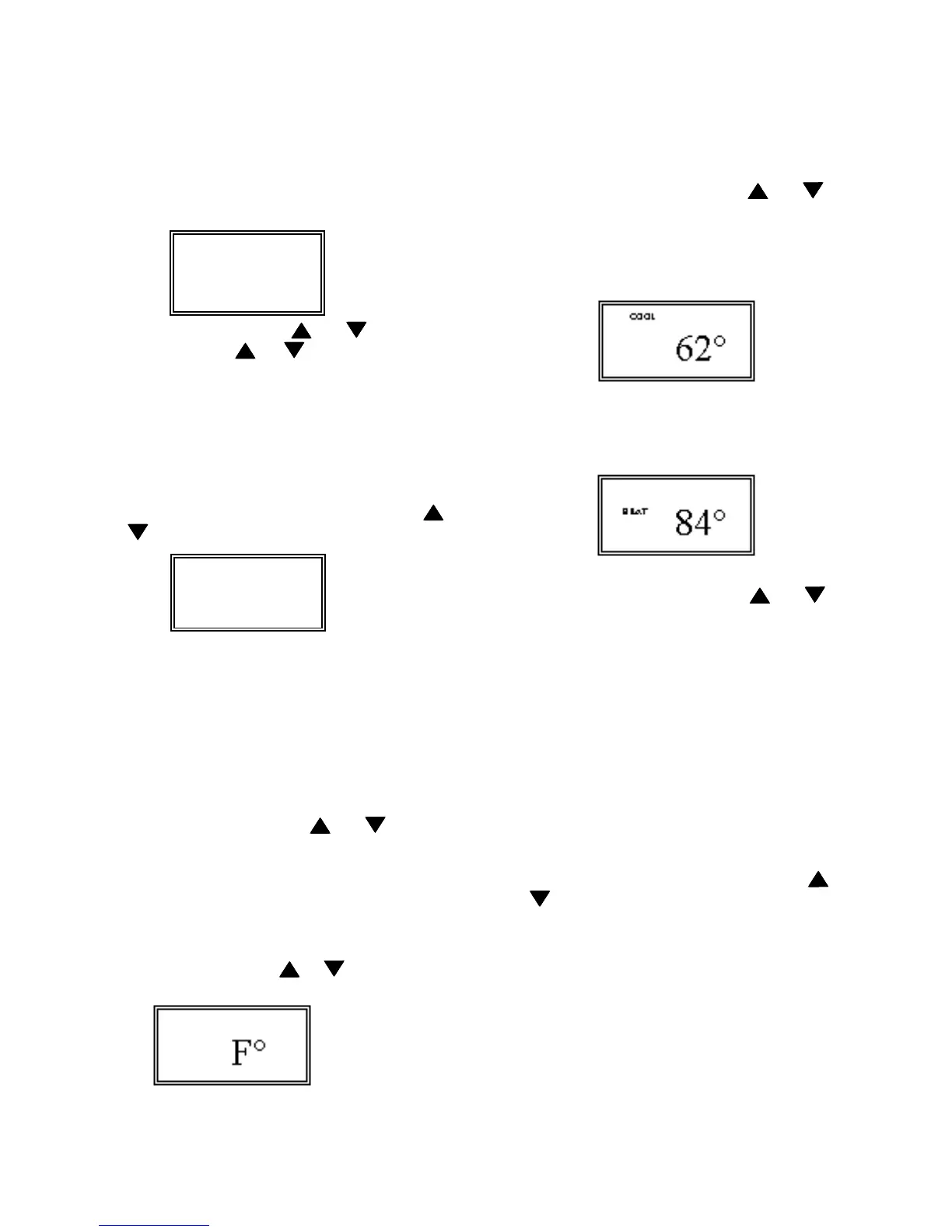

2.1 Once in the conguration mode, the default
temperature scale will be displayed as shown
below. Toggle the temperature scale to degree
Celsius by pressing either or button:
2.2 To adjust the lower operating temperature limit
(cool minimum set point) press and
buttons. COOL and the setting will be displayed
as shown below. The minimum and factory default
setting is 60°F (15°C). An example of what can be
displayed:
2.3 To view the upper operating temperature limit
(heat maximum set point) press MODE button.
HEAT will be displayed. An example of what can
be displayed:
2.4 To adjust the upper operating temperature limit
(heat maximum set point) press and
buttons. The max and factory default setting is
85°F (30°C). When Control selection jumper on
control board is set for “T’STAT,” the max setting
can go up to 90°F (32°C).
2.5 By pressing MODE button repeatedly from the
previous screen, the following will be displayed in
sequence:
• Indoor Air Sensor Reading
• Indoor Coil Sensor Reading
• Outdoor Air Sensor Reading
• Outdoor Coil Sensor Reading
2.6 Exit the conguration mode by pressing and
buttons for 5 seconds
Controls
Premium Digital Touchpad Control
AM
9:45
TODAY
AM
9:45
