7-Day Programmable Automatic Changeover
Thermostat (107095901)
Simple, logical programming for set-up and set-back
temperatures and times. Compatible with single-stage
heat pump systems. Enables separate morning, day,
evening, and night settings for every day of the week.
Simpleset™ feature enables easy copying of one
day’s programming for the entire week. Automatically
switches between heating and cooling modes. A/C and
heat pump modes – 4-minute time delay to protect
compressor after it turns off. Vacation hold overrides
programming. Lockout feature prevents unwanted
tampering. Clear backlit display makes it easy to see
time, temperature and setpoint – even in the dark. No
batteries required. Optional remote temperature sensor
available.

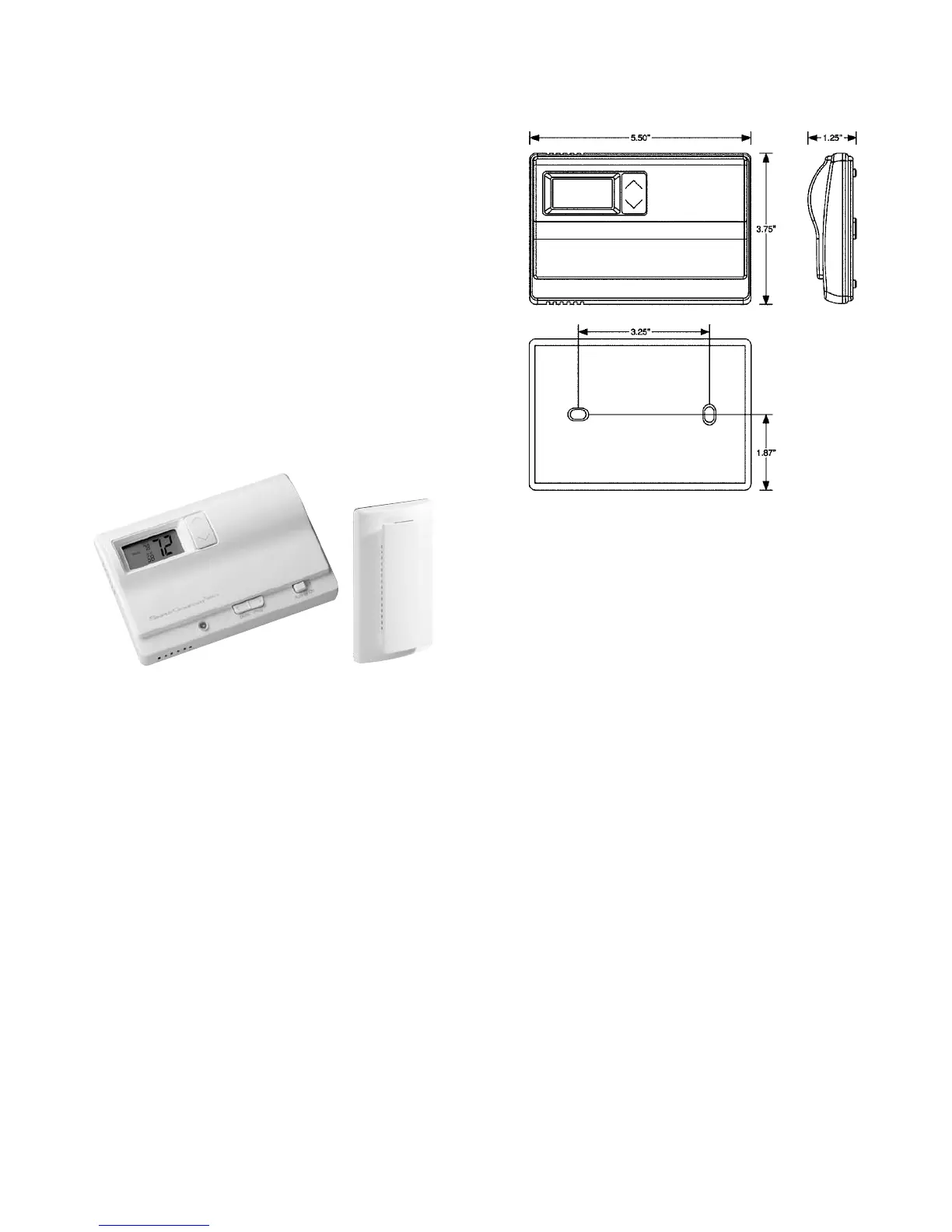

Figure 29. 7-Day Programmable Thermostat
(107095901), and optional remote sensor
(107096001)
Specications
Electrical Rating:
• 24 VAC (18 to 30 VAC)
• 1 amp maximum per terminal
• 4 amp maximum total load
• 60-minute power backup for clock
Temperature Control Ranges:
• 45
o
F to 90
o
F, Accuracy: ±1
o
F
System Congurations:
• Single stage heat, single stage cool or single stage
electric heat pump
Terminations:
• RC, RH, C, W, Y, O, B, G
Thermostat Dimensions – 107095701,
107095801, 107095901
