7-Day Programmable Manual Changeover
Thermostat (107095801)
Simple, logical programming for set-up and set-back
temperatures and times. Compatible with single-stage
heat pump systems. Enables separate morning, day,
evening, and night settings for every day of the week.
Simpleset™ feature enables easy copying of one day’s
programming for the entire week. Select a warmer or
cooler setting any time to temporarily override any
program setting. Vacation hold overrides programming.
Clear backlit display makes it easy to see time,
temperature and setpoint – even in the dark. No batteries
required.

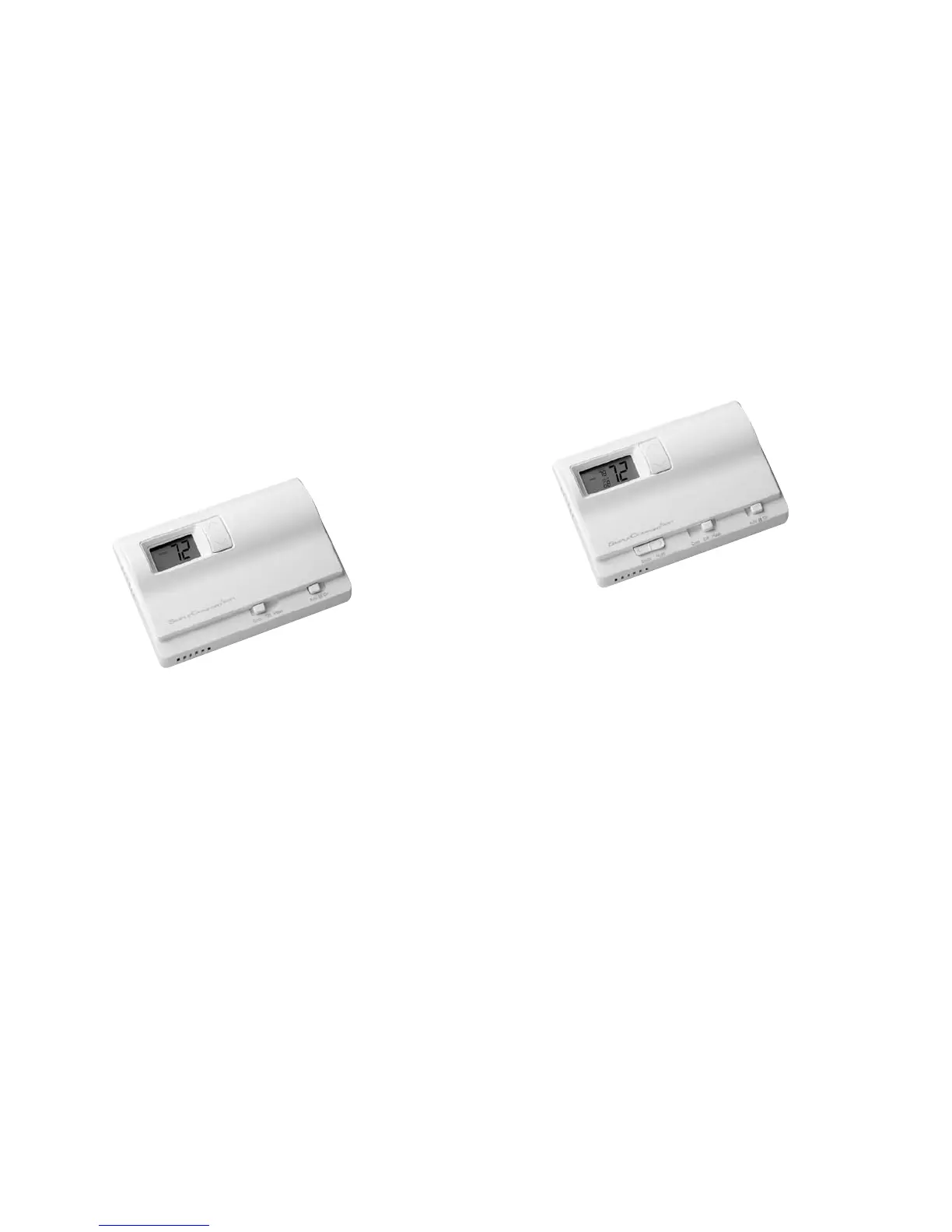

Figure 28. 7-Day Programmable, Manual Changeover
Thermostat (107095801)
Specications
Electrical Rating:
• 24 VAC (18 to 30 VAC)
• 1 amp maximum per terminal
• 3 amp maximum total load
• 60-minute power backup (SC3001)
• Easy access terminal block
Temperature Control Ranges:
• 45
o
F to 90
o
F, Accuracy: ±1
o
F
System Congurations:
• Single stage heat, single stage cool or single stage
electric heat pump
Terminations:
• RC, RH, C, W, Y, O, B, G
Controls
Remote Wall Mounted Thermostats
Wall mounted thermostats are available for the Applied
PTAC unit in automatic or manual changeover styles.
All include a fan switch for constant “on” operation or
“automatic” for cycle operation with a call for heat or
cooling. All thermostats are 24-volt type and have dual
Fahrenheit and Celsius temperature setpoint scales.
Non-Programmable Heat/Cool Manual
Changeover Thermostat (107095701)
Simple to operate, single push button for one-stage
heating and cooling, or single stage heat pump. Zone
compatible, and 4- or 5 wire compatible (terminal “C” is
optional for non-heat pump systems). System “heat-off-
cool” switch and fan “on-off” switch.
Figure 27. Non-Programmable Thermostat (107095701)
Specications
Electrical Rating:
• 24 VAC (18 to 30 VAC)
• 1 amp maximum per terminal
• 3 amp maximum total load
• 60-minute power backup (SC2001)
Temperature Control Ranges:
• 45
o
F to 90
o
F, Accuracy: ±1
o
F
System Congurations:
• 1 stage heat, 1 stage cool or single stage electric
heat pump
Terminations:
• R, C, W, Y, O, B, G
