10 McQuay IM 937
Physical Data
Dimensional Data
Table 5 contains dimensions that vary from unit to unit,
marked with letters (A, B, C, etc.) in the figures. Depth, length,
and height dimensions do not include lifting lugs, the handle,
latch, or fastener extensions. For shipping dimensions, the skid
adds 4" (102 mm) to depth, 8" (204 mm) to the length, and 4"
(102 mm) to the height.
For units with the optional plenum, the plenum can ship
separately. All openings are on the plenum are centerline. For
additional information, refer to the submittal drawing. (See
Figures 14 and 15.)
Service connections are determined when facing the front of
the unit. Left-hand connections are standard; right-hand
connections are optional. Please indicate on the unit submittal.
Unit sizes 018, 023, and 028 have a single mechanical access
panel in the bottom front and bottom back. (See Figures 16,
17, 18, and 19.)

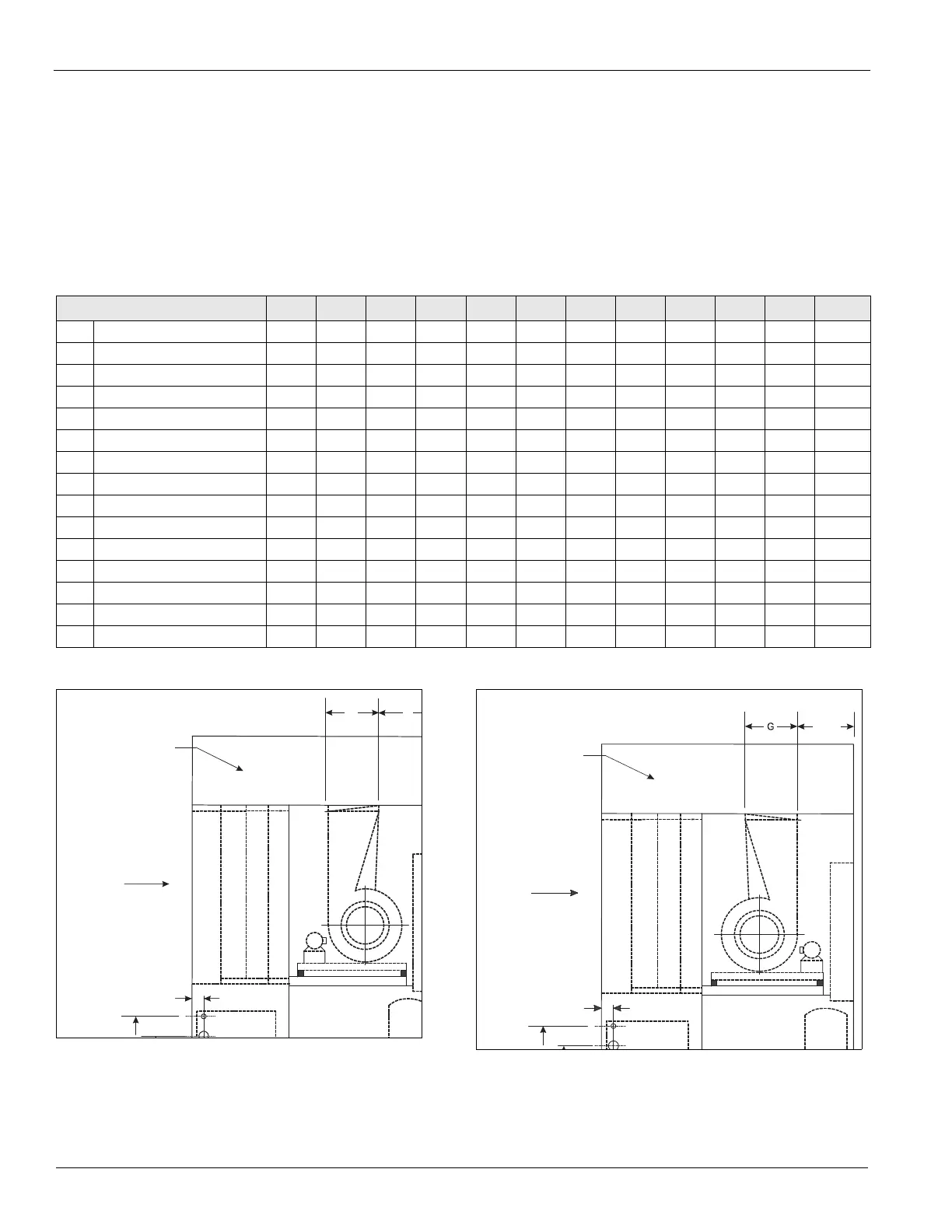

Figure 14: Front Left Side (CW) Discharge with Optional
Multi-Directional Plenum
Figure 15: Back Left Side (CCW) Discharge with Optional
Multi-Directional Plenum
Note: *For F vintage units, subtract 1.88.
Table 5: Dimensions
Basic unit 018 023 028 035 040 045 055 065 070 080 095 105
A Depth 72.00 72.00 72.00 72.00 72.00 81.00 81.00 81.0 81.00 84.00 84.00 96.00
B Length 84.00 84.00 84.00 100.00 100.00 120.00 120.00 120.0 132.00 144.00 156.00 156.00
D Height 82.00 82.00 82.00 82.00 82.00 82.00 82.00 88.0 88.00 88.00 88.00 96.00
F Fan discharge 18.62 21.88 21.88 24.75 24.75 27.25 31.25 31.25 31.25 34.25 34.25 47.25
G Fan discharge to shaft 15.88 18.88 18.88 24.75 24.75 27.25 31.25 31.25 31.25 34.25 34.25 34.94
H Fan discharge location 32.69 31.06 31.06 37.62 37.62 46.38 44.38 44.38 50.38 54.88 60.88 54.40
J Fan discharge location 22.50 18.81 18.81 20.12 20.12 21.06 21.32 21.32 21.32 23.82 23.82 33.76
K Return opening height 41.44 41.44 41.44 51.44 51.44 51.44 51.44 62.20 62.20 62.20 62.20 70.20
L Return opening length 80.00 80.00 80.00 96.00 96.00 116.00 116.00 116.00 128.00 140.00 152.00 152.00
M Base of return opening 28.62 28.62 28.62 28.62 28.62 28.62 28.62 23.87 23.87 23.87 23.87 23.87
N Water out/in (ODS) 2 1/8 2 1/8 2 1/8 2 5/8 2 5/8 2 5/8 3 1/8 3 1/8 3 1/8 3 1/8 3 1/8 3 1/8
P 1-row HW conn (ODS) 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 2 1/8 2 1/8 2 1/8 2 1/8
P 2-row HW conn (ODS) 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 2 1/8 2 1/8 2 1/8 2 1/8 — — —
Q Condenser outlet* 16.5 16.5 16.5 16.516.516.516.816.816.816.816.817.76
R Condenser inlet* 10.5 10.5 10.5 10.5 10.5 10.8 10.8 10.8 10.8 10.8 10.8 11.75
"
K x L return air
Filter s ection
Economizer
Evaporator
Heater
Electrical panel
G
J
Multi-directional
plenum, optional
(Plenun can ship separately.
All openings are on the
plenum centerline.
For additional information,
see submittal drawings.)
3.25"
Outlet
0"
K x L return air
Filter s ection
Economizer
Evaporator
Heater
Electrical panel
3.25”
Outlet
9.63"
(18-95)
10.31
(105)
Multi-directional
plenum, optional
(Plenun can ship separately.
All openings are on the
plenum centerline.
For additional information,
see submittal drawings.)
