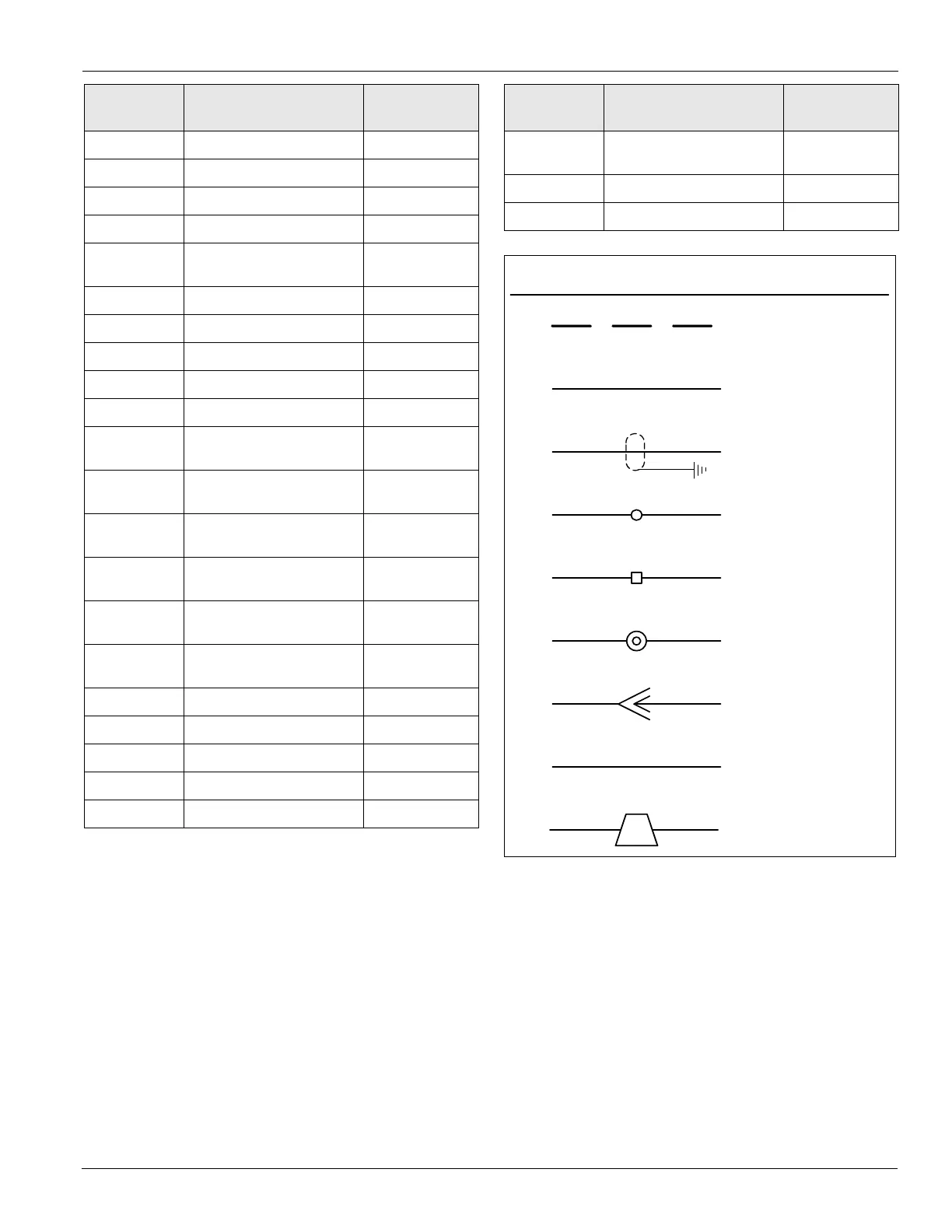

Electrical Data
PC5 Pressure control, clogged filter Main control box
PC7 Pressure control, proof airflow Main control box
PB10 Power block, supply fan Main control box
PVM1, 2 Phase voltage monitor Main control box
R1–6 Relay, compressor high
pressure
Main control box
R62, 63, 65 Relay, use on specials Main control box
R70–79 Relay, use on specials Main control box
RAT Return air temperature sensor Main control box
S1 Switch, system on/off Main control box
S4 Switch, VFD bypass, on/ off Main control box
S7 Switch, local on/auto/off to
controller
Keypad
SPS1, 2 Static pressure sensors, duct/
building
Main control box
PSR1, 2 Pressure transducer, head
pressure control
Condenser section
T1 Transformer, main control (line/
115 V (ac))
Main control box
T2 Transformer, control input (115/
24 V (ac))
Main control box
T3 Transformer, control output
(115/24 V (ac))
Main control box
T4 Transformer, UV lights Main control box
TB1 Terminal block, internal Main control box
TB2 Terminal block, field, Class 2 Main control box
TB3 Terminal blocks, factory Main control box
TB4 Terminal block, field, 115 V (ac) Main control box
ID Description
Standard
location
UV Ultra-violet light(s) Coil/discharge
section
VM1 Valve motor #1, heating Heat section
ZNT1 Zone temp. sensor, setback Field installed
ID Description
Standard
location
200/ H200
1. Field wiring
3. Shielded wire/cable
4. Main control box
terminals
5. Auxilliary box
terminals
6. Field terminals
7. Plug connector
8. Wire/harness number
General Notes
2. Factory wiring
9. Wire nut/ID
WN7
