10 Product Manual WHR-2

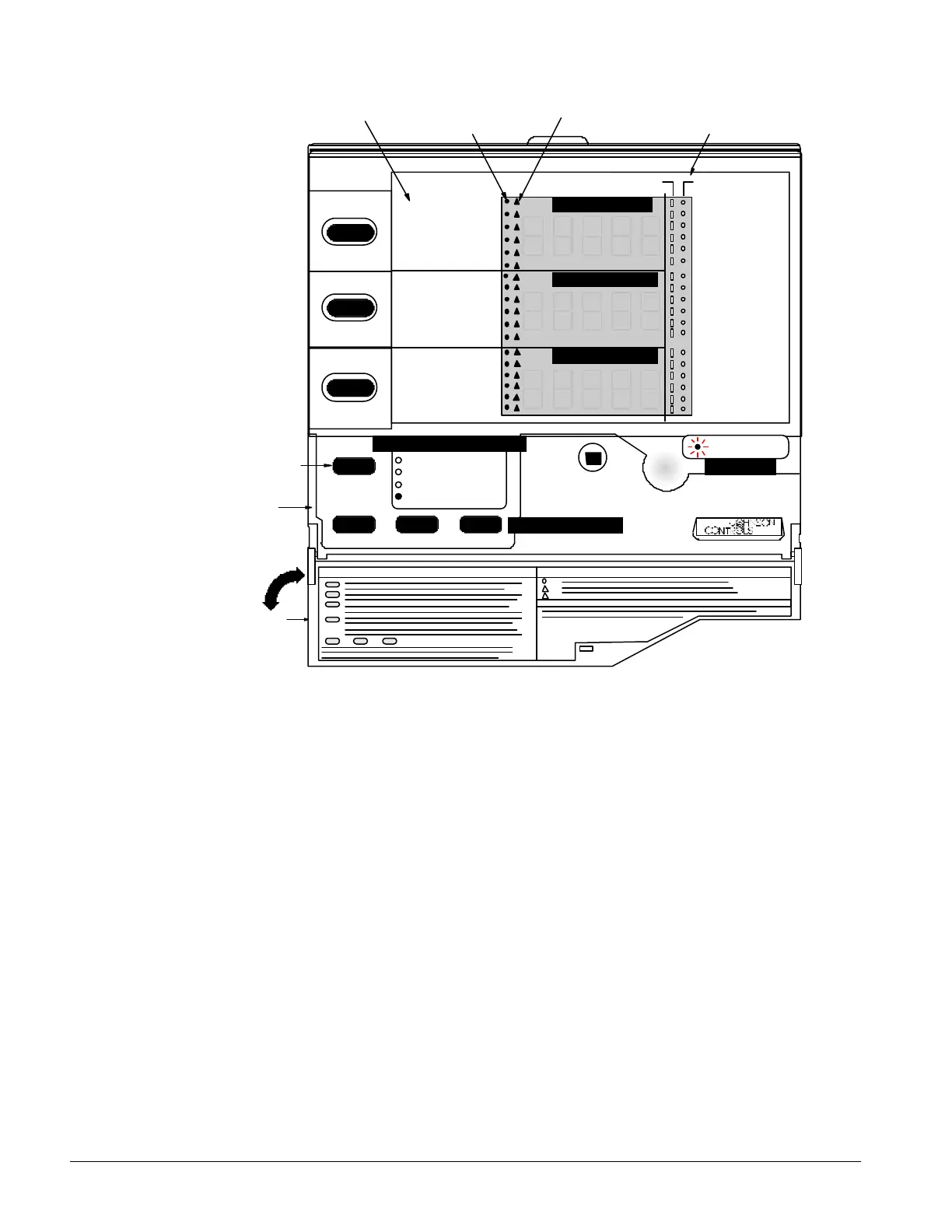

Figure 1, Zone Terminal Configuration
MONITOR
ADJUST
TIME SCHEDULE
PASSWORD
ENTER
Compressor 1
Compressor 2
Stage 3
Stage 4
Solenoid #1
Frzstat#1Alm
Frzstat#2Alm
MinLowPres#1
MinLowPres#2
Occupied
Flow Failure
OA Lockout
Cir#2Lead=On
Pmp/Stp #1=0
Lvg Water Temp
Evap Pres #1
Evap Pres #2
OA/AI3 Input
LvgWtr RBnd SP
Contrl Band SP
Actual Lvg SP
Unoccpd Lvg SP
OA Lockout SP
Lvg Low Lim SP
SoftSta Capcty
Cir #1 Starts
Cir #2 Starts
McQuay AGZ/AGR Global Chiller
INSERT 10
ON OFF
Display
Button 1
Mode
Selector
Panel
Mode
Selector
Button
2
AGZ-AGR
Display Indicator Dot
On/Off Status
3
Operating Mode Indicator
Up/Down Arrow Keys
Door
Display Item List
Warning Signal
ALARM
OA/AI3 HiLimSP
OA/AI3 ResetSP
Display Area 11
Display Area 21
Display Area 31
Alarm Light
Lvg Water SP
% Unit Load
SoftStart Time
Pmp/Stp #2=0
Solenoid #2
Stage 5 Opt.
Stage 6 Opt.
Optional MicroTech Chiller Controller
WHR-040 – 210 Only
The MicroTech reciprocating chiller controller surpasses all other microprocessor-based chiller
control systems available today. This powerful, user-friendly control system provides the flexibility
and performance needed for a stand-alone unit as well as multiple units tied into a network system.
MicroTech’s state-of-the-art design will not only permit your chiller to run more efficiently, but will
also simplify troubleshooting if a system failure occurs. Every MicroTech controller is programmed
and tested prior to shipment to ensure a trouble-free start-up.
Condenser fan control (Model EA)
Control of condenser fans is available through the MicroTech controller. The control steps
condenser fans or groups of fans based on discharge pressure. Field wiring is required between
the chiller and the remote condenser.
