STEP 3

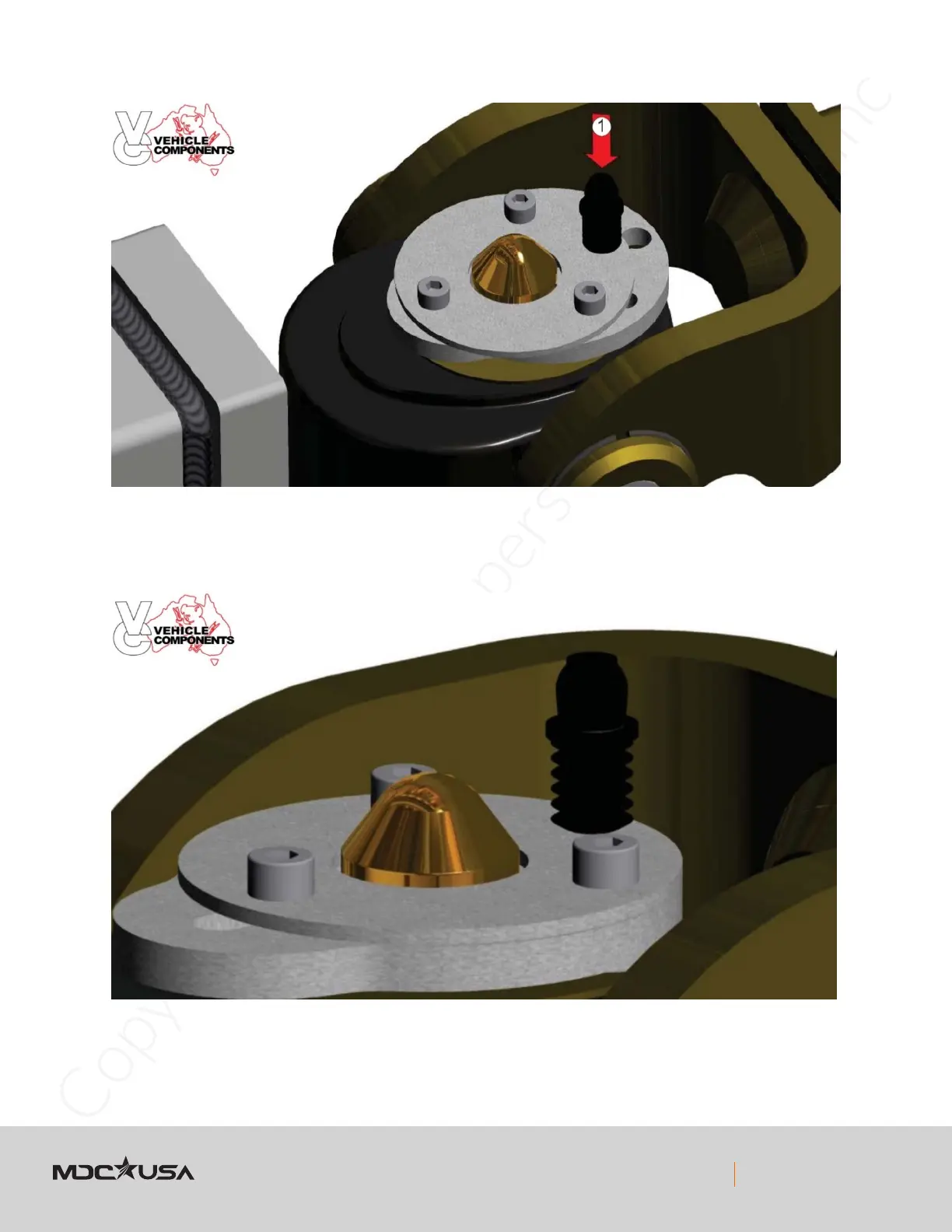

Make sure the tow pin is seated inside the universal and the tow pin top is sticking out of the locking mechanism (see
below). Press the button (1) to release the locking mechanism there will be an audible locking noise at which point the
mechanism will return to the initial position as shown in step 1. Verify the pin is correctly through the mechanism and
assemble the cap. If the cap will not t check the locking mechanism is in the correct locked orientation.
Detail view of pin through locking mechanism.
